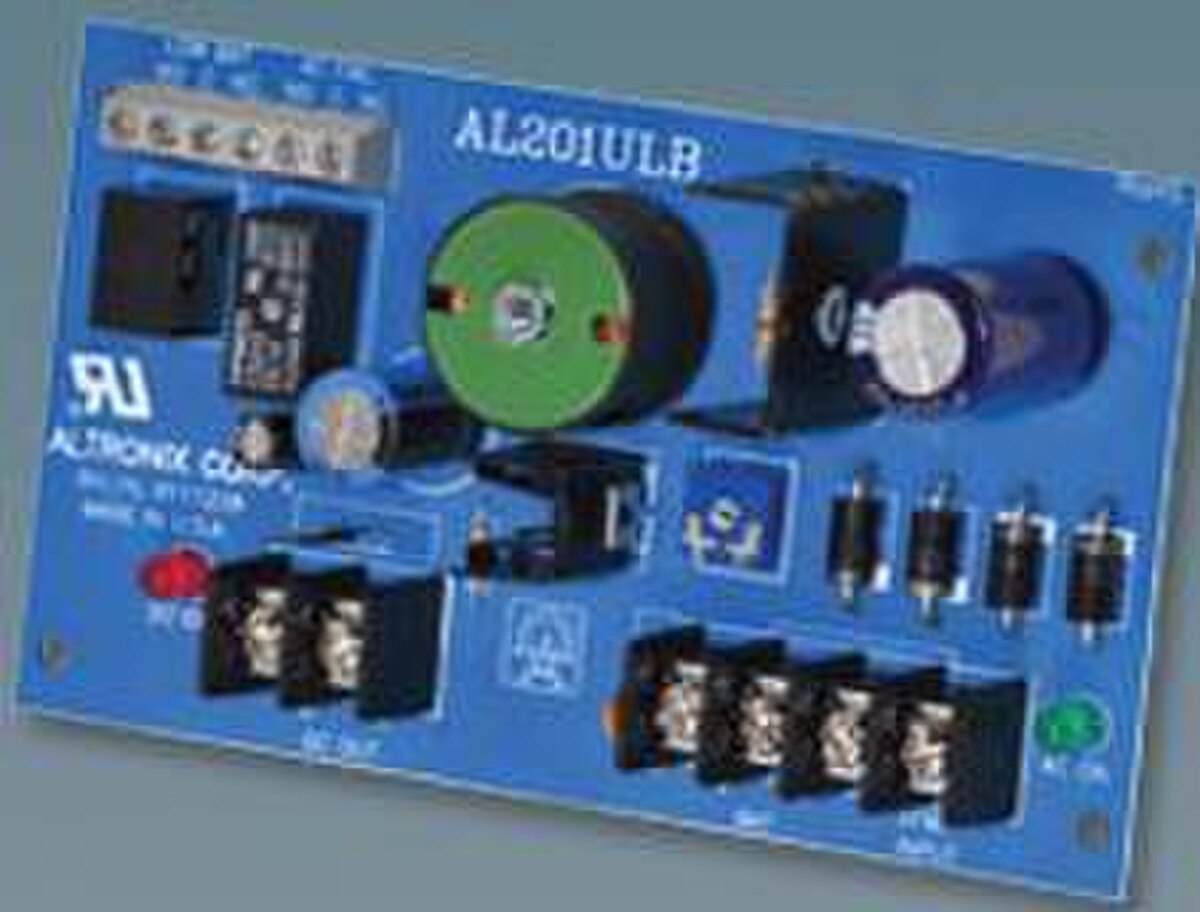

AL201ULB

SKU AL201ULB-474
12 VDC 1.75A SPVISED P/S BOARD

Features:

  • 1.75 amp continuous supply current at 12VDC.
  • 12VDC power limited output.
  • 24VAC 40VA input. Use UL Listed plug-in transformer.
  • AC fail supervision (form ''C'' 1 amp @ 28VDC).
  • AC input and DC output LED indicators.
  • Automatic switch over to stand-by battery when AC fails (zero voltage drop).
  • Class 2 Rated.
  • Filtered and electronically regulated output.
  • Includes power supply and battery leads.
  • Lifetime Warranty.
  • Low battery supervision (form ''C'' 1 amp @ 28VDC).
  • Maximum charge current 400mA.
  • Short circuit and thermal overload protection.
