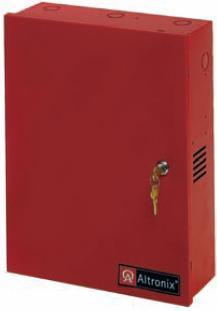

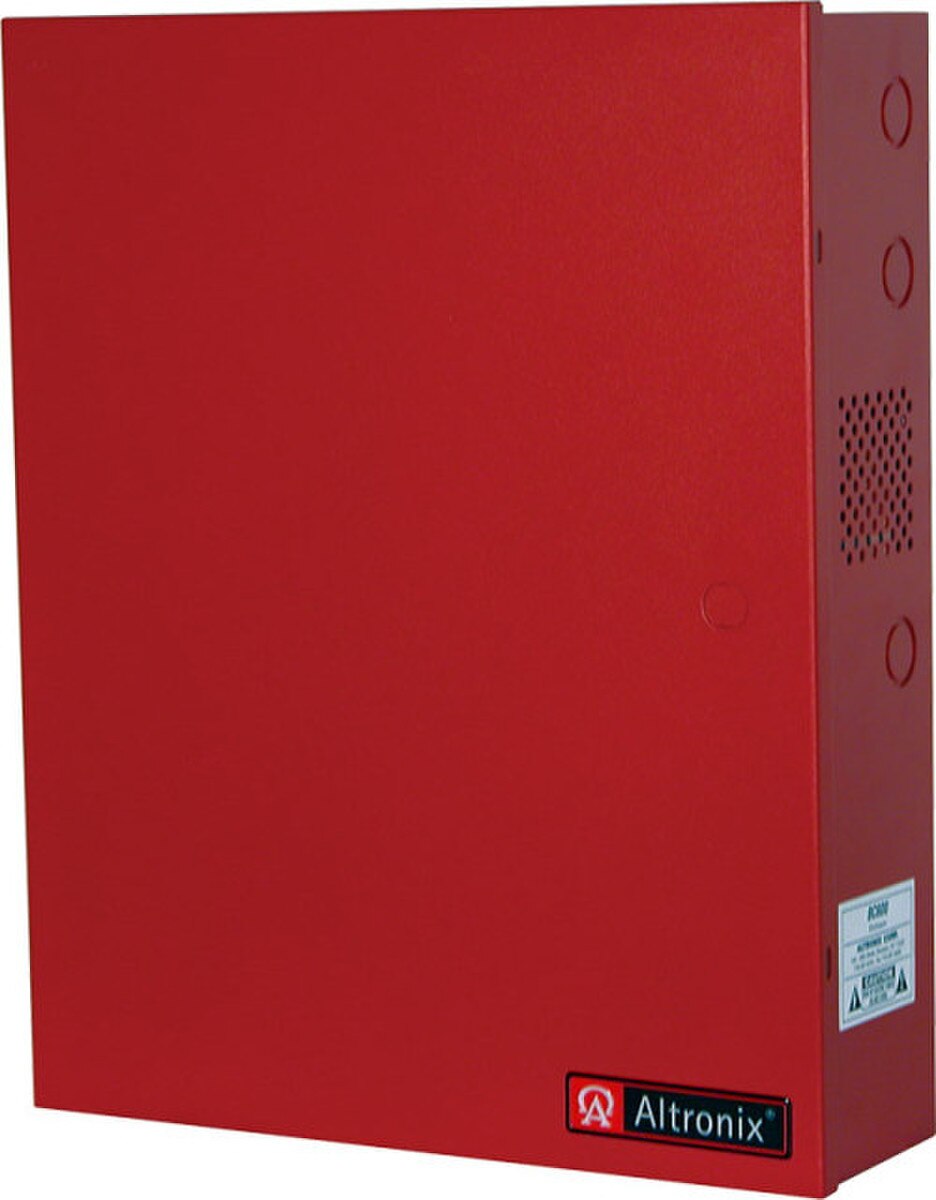

AL642ULADA

Features:

• 115VAC 60Hz., 3.2 amp.
• 24VDC output.
• 6.5 amp max total alarm current.
• AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
• AC input and DC output LED indicators.
• Built-in charger for sealed lead acid or gel type battery backup.
• Low battery and battery presence supervision (form ''C'' contact
• Maximum charge current .7 amp.
• rated @ 1 amp 28VDC).
• Short circuit and thermal overload protection.
• Zero voltage drop upon transfer to battery backup.
