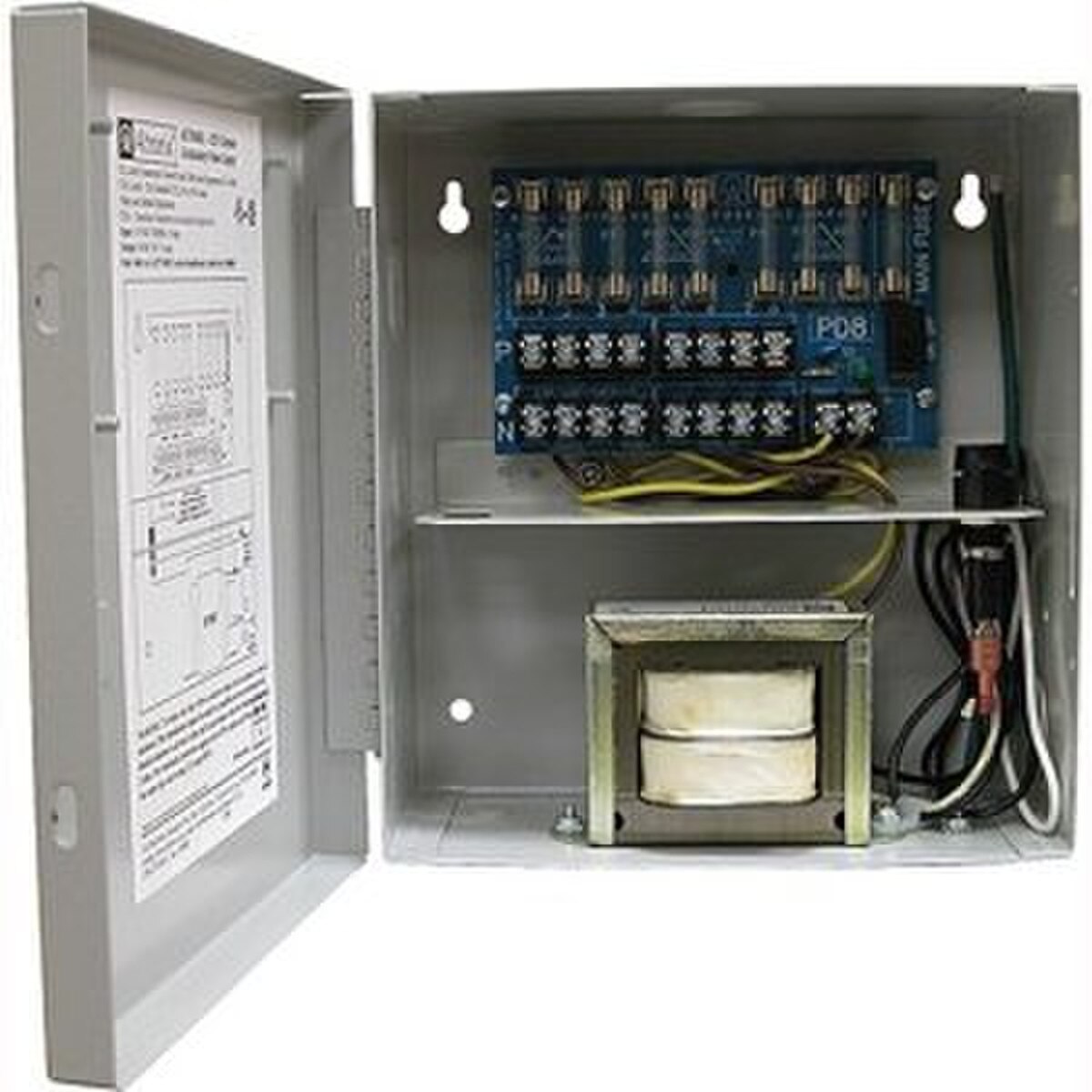

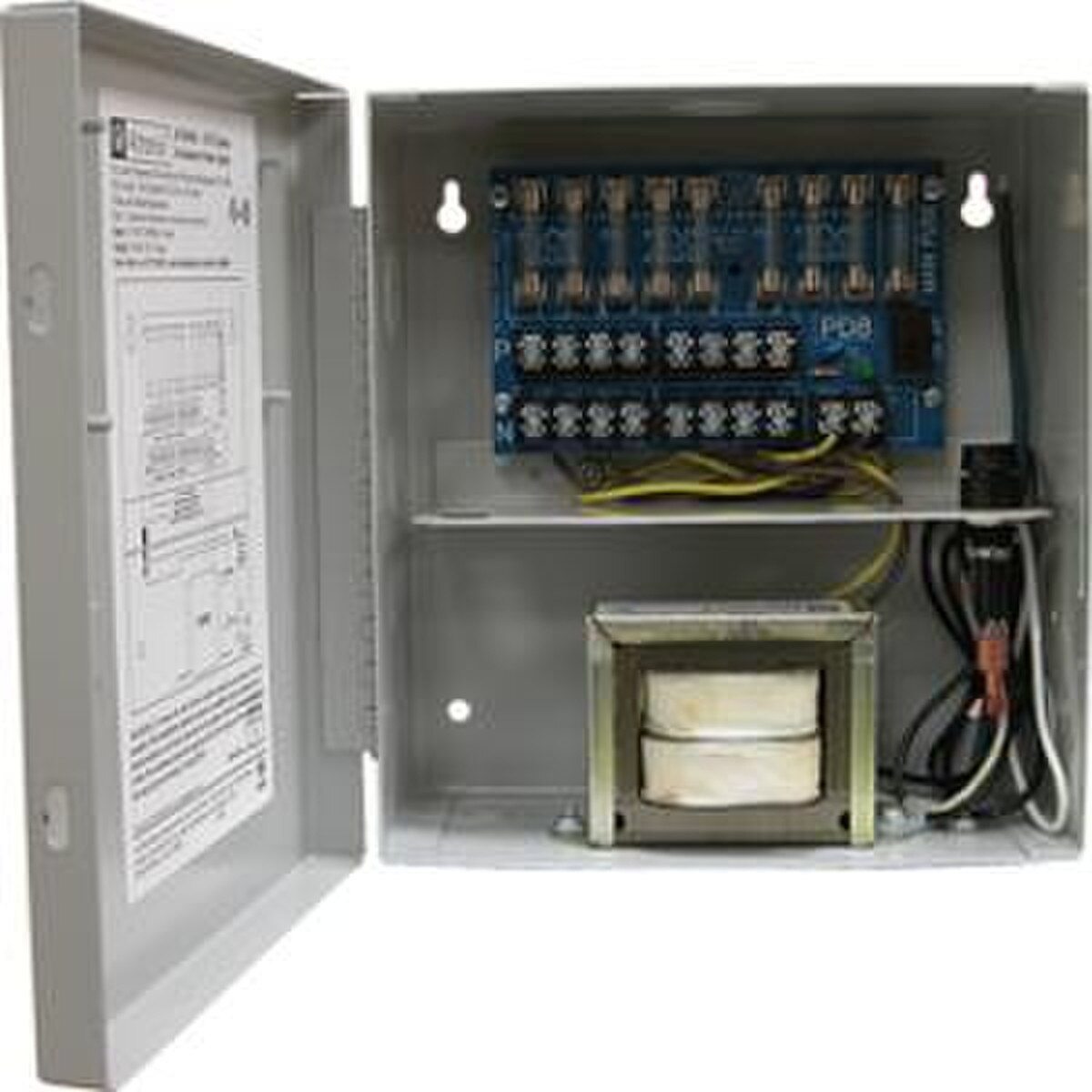

ALTV248UL

SKU ALTV248UL-474
24 VAC/3.5A/8 OUT UL CCTV P/S

Features:

  • 115VAC, 50/60Hz, 0.9A.
  • Eight (8) fuse protected outputs.
  • 24VAC @ 3.5A (85VA) supply current (0.438A per device, 3.5A max.) or 28VAC @ 3A (85VA) supply current (0.375A per device, 3.5A max.).
  • Outputs are rated @ 3.5A.
  • Surge suppression.
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 43 BTU/Hr.
  • System AC input VA requirement: 103.5VA.
  • Secondary fuse rated @ 5A/250V.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided. (all models w/primary and/or secondary fuses).
