ALTV615DC1016CB

SKU ALTV615DC1016CB-474

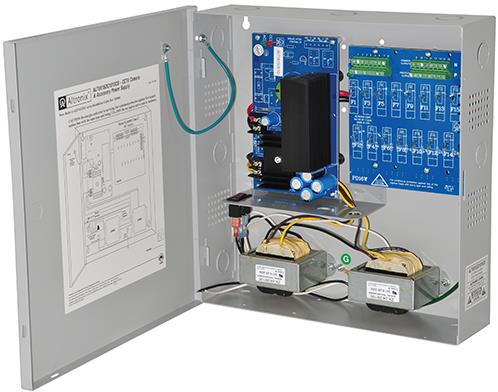

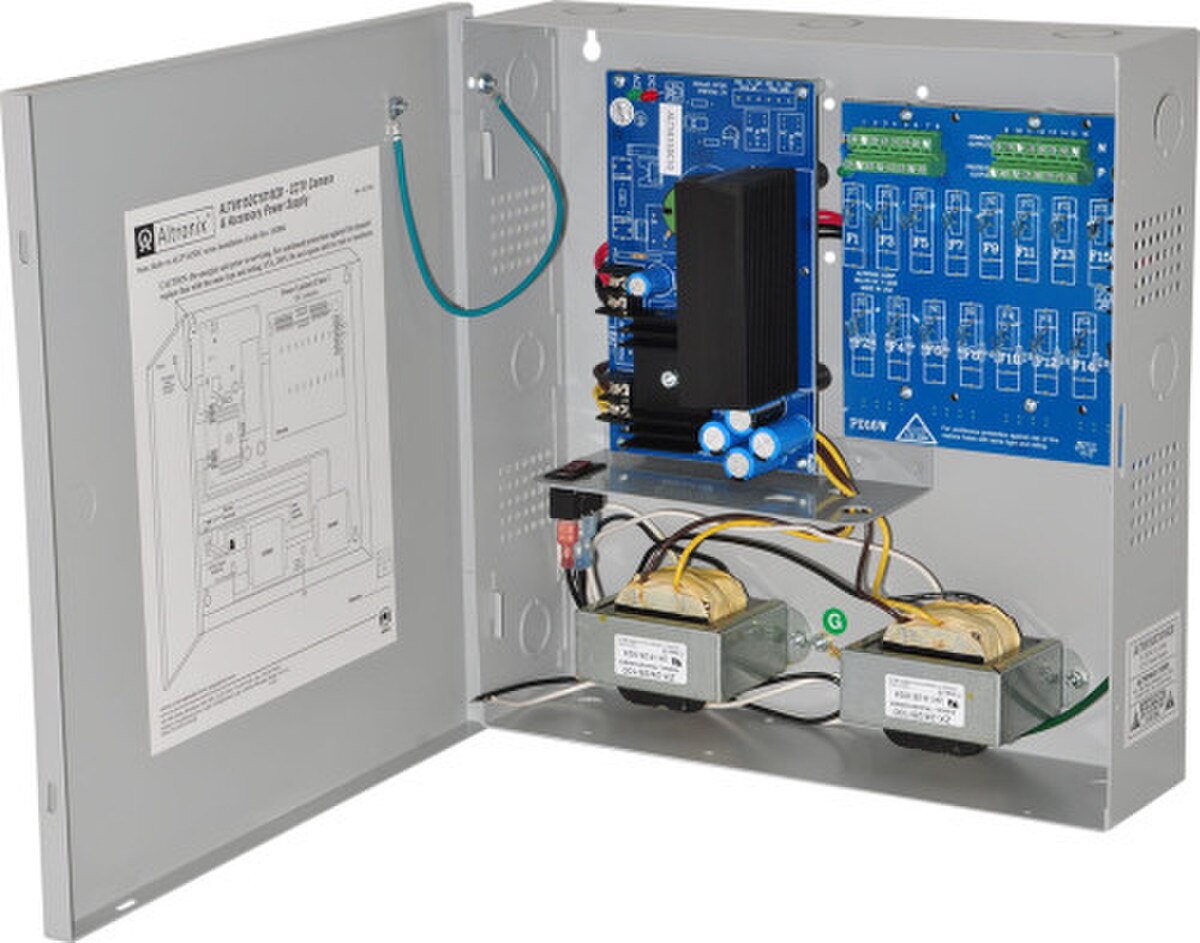

6-15VDC 10A 16 PTC CCTV P/S

Features:

  • Sixteen (16) PTC protected outputs (auto-resettable).
  • 6VDC to 15VDC field adjustable.
  • 10A total continuous supply current (0.625A per device, 3.5A max.).
  • Filtered and electronically regulated outputs.
  • Operating 0 to 49 C (32 to 120 F )
  • Relative Humidity 85% +/- 5%
  • BTU/Hr. (approx.): 31-77 BTU/Hr.
  • System AC input VA requirement: 218.5VA.
  • AC input and DC output LED indicators.
  • Illuminated power disconnect circuit breaker with manual reset.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
