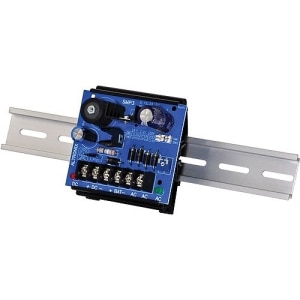

DPS3

SKU DPS3-474
6/12/24 VDC 2.5A P/S CHGR DIN

Features:

  • 6VDC or 12VDC output use TP1640 or 24VDC output use T2428100.
  • 6VDC, 12VDC or 24VDC selectable output.
  • 2.5A continuous supply current.
  • Filtered and electronically regulated output.
  • Short circuit and thermal overload protection.
  • Built-in charger for sealed lead acid or gel type batteries.
  • Automatic switch over to stand-by battery when AC fails.
  • Battery short circuit protection (circuit breaker).
  • AC input and DC output LED indicators.
  • Extremely compact design.
  • Includes battery leads.
  • Snap Track compatible (order Altronix model number ST3).
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr. (approx.):
  • 6VDC: 8 BTU/Hr.
  • 12VDC: 15 BTU/Hr.
  • 24VDC: 31 BTU/Hr.
  • System AC input VA requirement: 6VDC/12VDC: 276VA. 24VDC: 402.5VA
