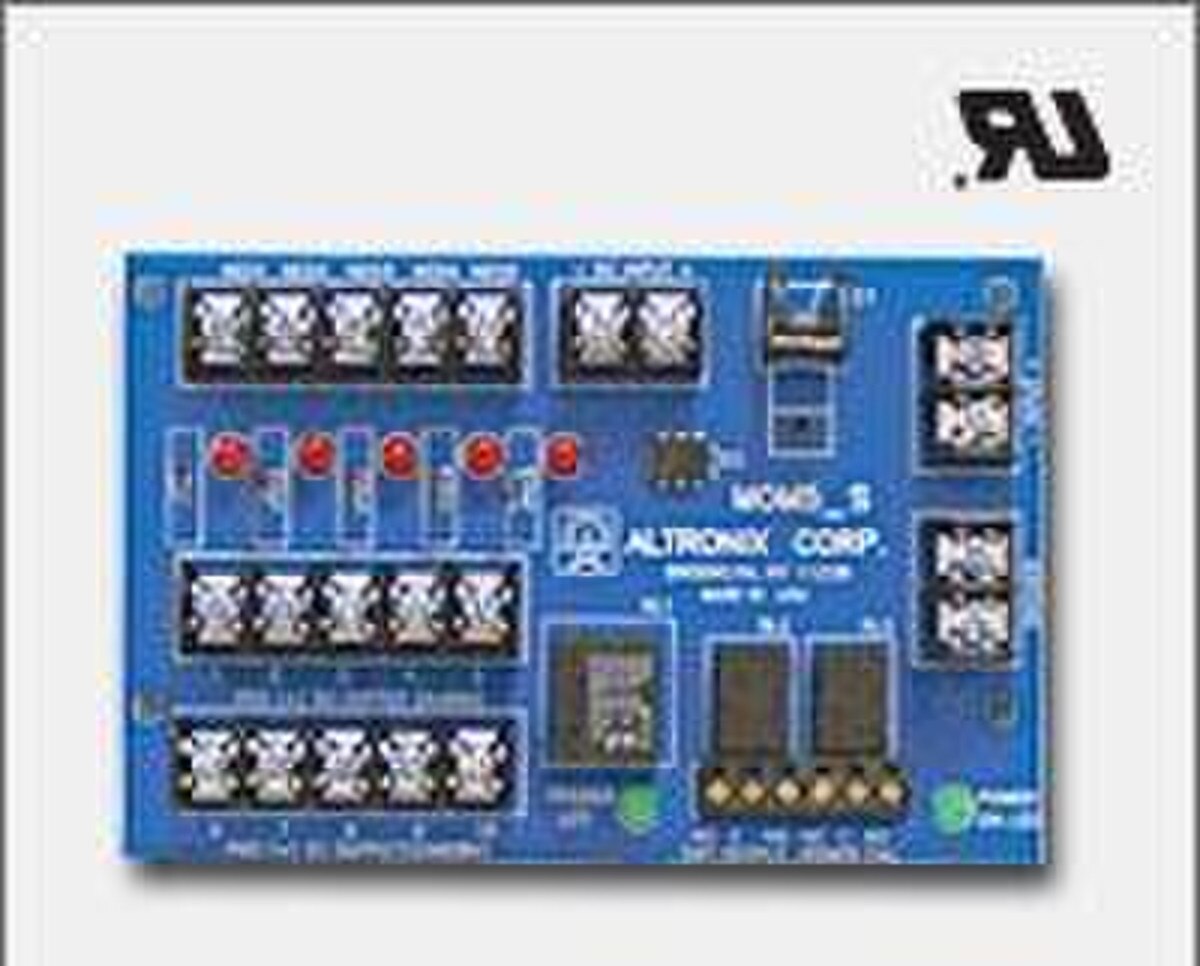

MOM5

SKU MOM5-474
MULTI-OUTPUT P/S INTERFACE

Features:

  • 12VDC or 24VDC from power supply.
  • 12VDC or 24VDC operation.
  • Current limit is 2A @ 12VDC or 24VDC per output.
  • Five (5) individual Class 2 Rated PTC protected power-limited outputs (auto-resettable).
  • PTCs are rated @ 2A/250V.
  • Red LEDs indicate condition of each power output.
  • Power and input trigger LEDs.
  • Power fail supervision relay (Form ''C'' contact rated 1A @ 28VDC).
  • Output relay indicates that unit is triggered (Form C contact rated 1A @ 28VDC).
  • Interfaces with most DC Power Supplies.
  • Relative Humidity 85% +/- 5%.
