Item: PT724A





Vendor Note:

Ground Orders Ship In 3-5 Business Days\n
Lifetime Warranty on All Products

PT724A

Vendor: Altronix Corporation

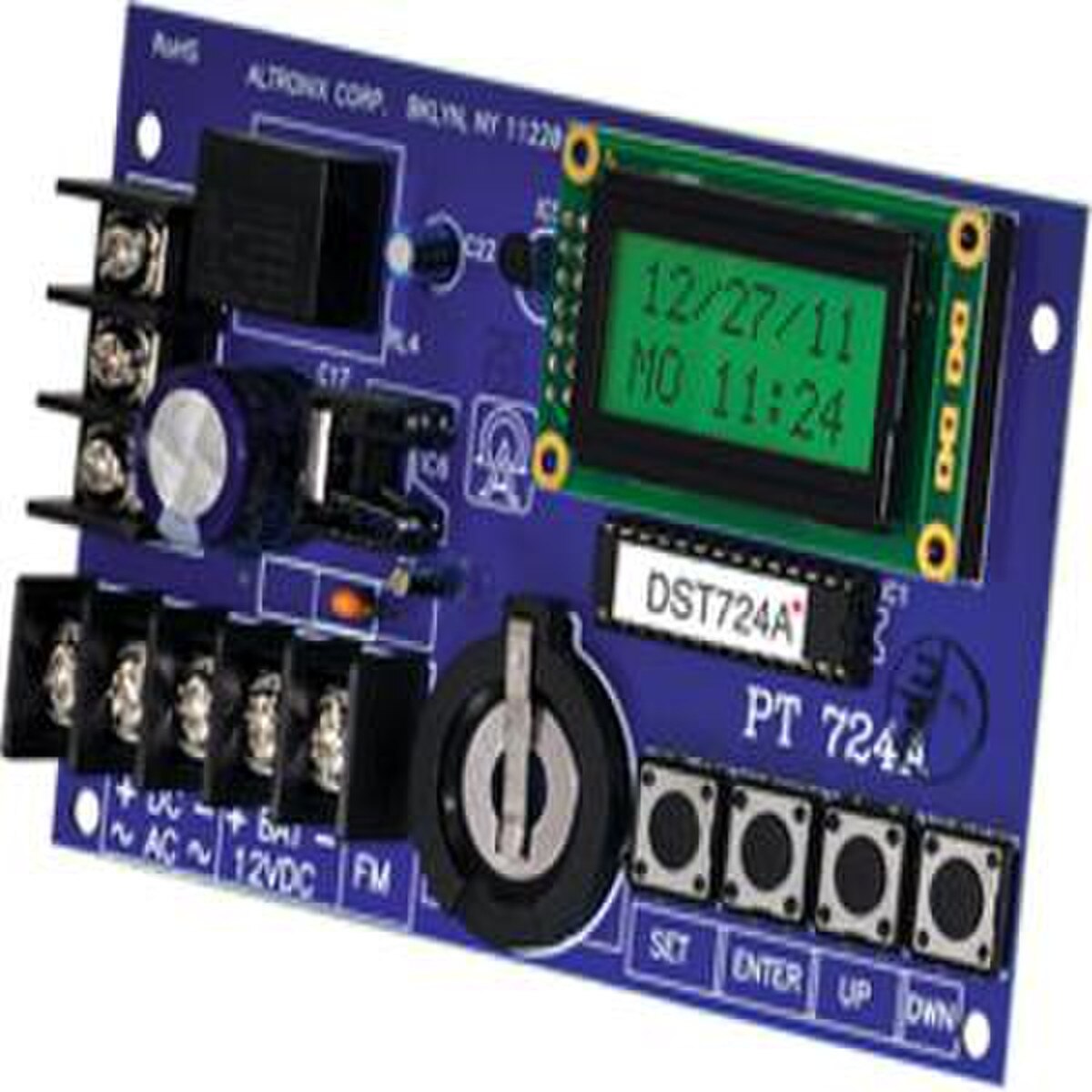

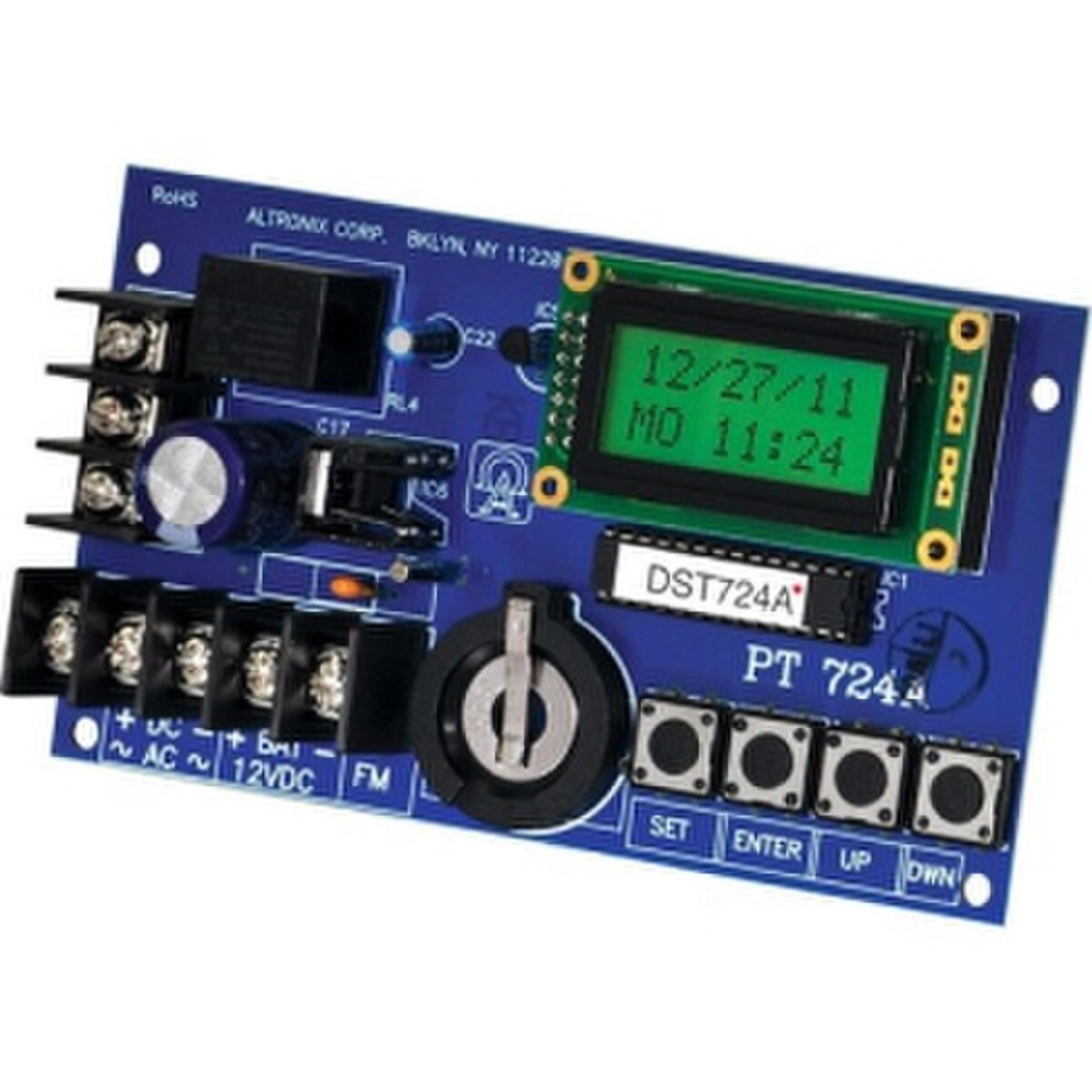

PT724A is an extremely versatile 24 Hour 365 Day Event Timers designed to support a wide range of applications: Home and Building Automation, Security, Access Control, Lighting Control, Etc.The PT724A are equipped with an independently controlled form ''C'' relay contact that provides many latching and/or momentary operations during a program schedule of your choice. Events may be set for single or multiple operations on a daily and/or weekly schedule.

Notes: n/a

List: $0.00

Dealer: $N/A

Features
  • “First man in” option.
  • 10 programmable Holiday dates.
  • 12 to 24 volts AC or DC operation
  • 50 individually programmed daily/weekly events.
  • Accurate crystal controlled clock.
  • Alphanumeric LCD display simplifies programming.
  • Automatic compensation for leap year.
  • Block programming capacity can accommodate a total of 350 events per week.
  • Built-in charger for 12VDC sealed lead acid or gel type batteries
  • EE Prom memory protects against loss of programming due to power failure.
  • Form “C” relay contacts are rated 10 amp @120VAC/28VDC.
  • Lifetime Warranty.
  • Lithium battery backup maintains clock (optional). (Altronix part # LB2032.)
  • Max charge current 100mA.
  • Momentary and/or Latching Events.
  • Standard or Daylight Savings Time settings.
  • Standby current: 10mA (relay off) 50mA (relay on).
Other Information
Install Hours: 2 *
Phase: Finish
Industry: Security
Voltage: n/a
Rack Mount: No
Rack Units: 0
Bulk Wire: No
Diameter: 0
* Product install times are provided for reference purposes only. Actual install time may vary. Product install times indicate estimated time to install the product under normal conditions based on industry research and does not take into account other considerations such as travel, un-boxing, programming, commissioning, or other factors.
