PXL-500P

SKU PXL-500P-1116

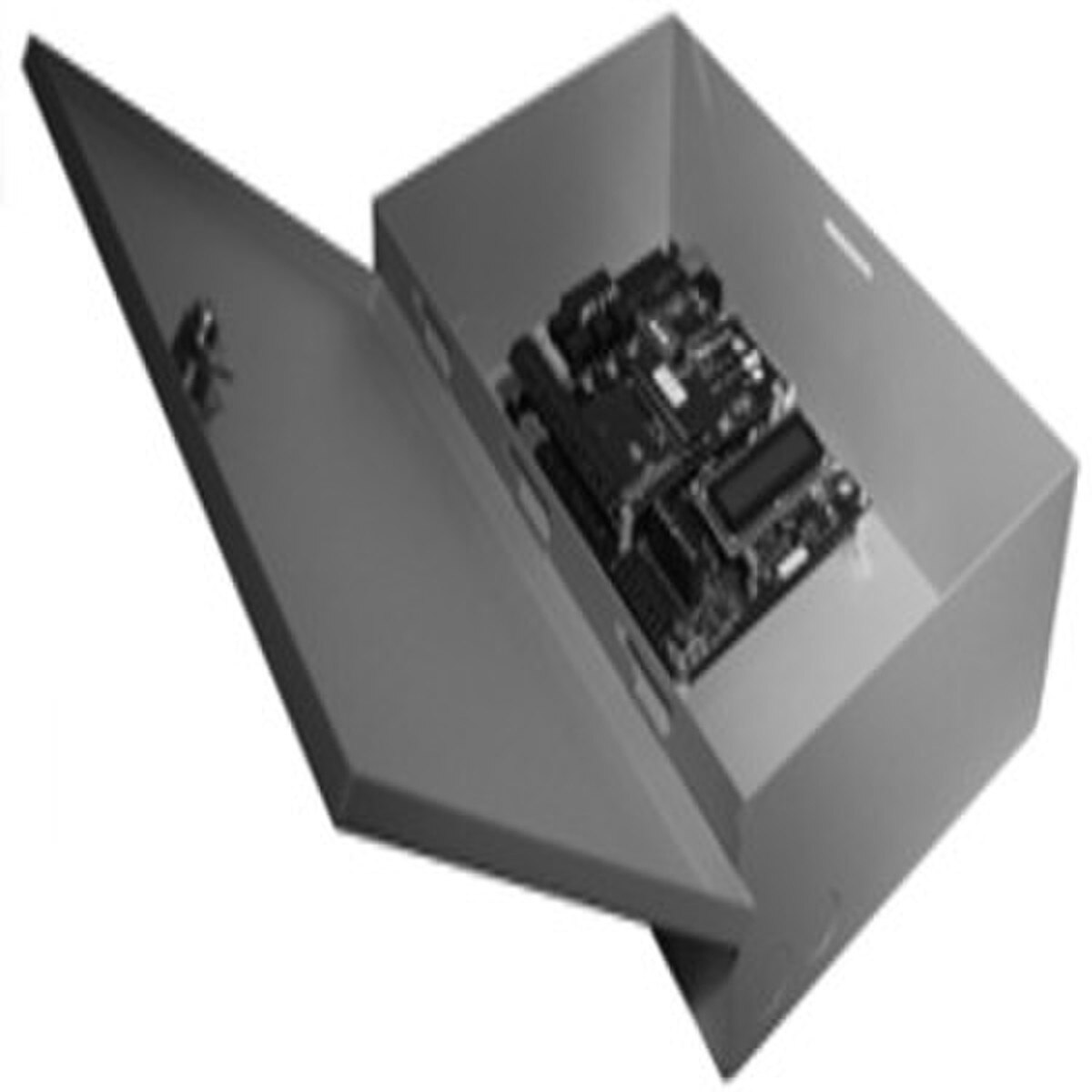

The PXL-500 Tiger Controller has all of the functionality needed to manage a single door, alarm output, and 2 reader ports. A second door can be added when used with SB-593 Satellite Expansion Board.PXL-500 Tiger Controller II The SB-593 Satellite Expansion Board economically provides second door control plus extra general purpose inputs and outputs.

Features:

Locking Metal Enclosure that can also house KPS-4 Power Supply and battery Added RAM for increased cardholder capacity (up to 65K per controller) On-board LAN socket for LAN-500 Adapter Double row header pins to ensure SB-593 is properly seated on PXL Additional LED indicator to confirm SB is properly seated RS-232 connector changed from DB-9 to quick disconnect terminal block RS-485 continuity indicator LED RS-485 connector different size so as not to interconnect with power input On-board diagnostic tests built into the controller firmware Diagnostic LEDs on the controller board to assist with troubleshooting communication and controller power issues Automatically senses communication method (direct connect to PC or via modem) Auto-Configures RS-485 grounding for optimum performance - NO JUMPER SETTINGS Quick disconnect terminals Software auto-configures system components, no data entry required Push-button setting and visual LED display of address selection - NO DIP SWITCHES
