UTI1

SKU UTI1-261

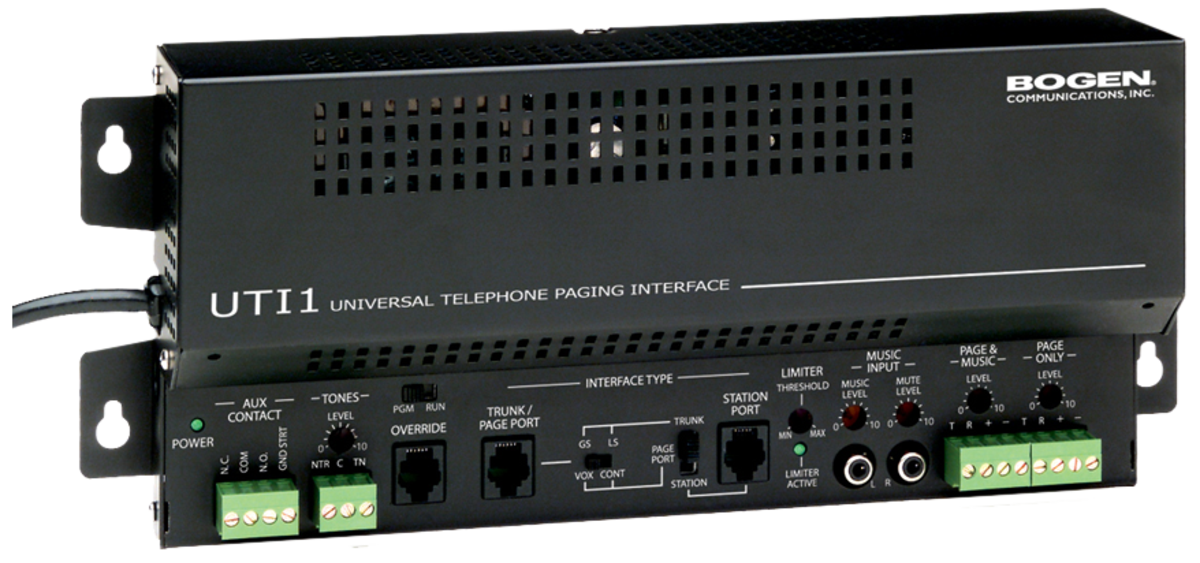

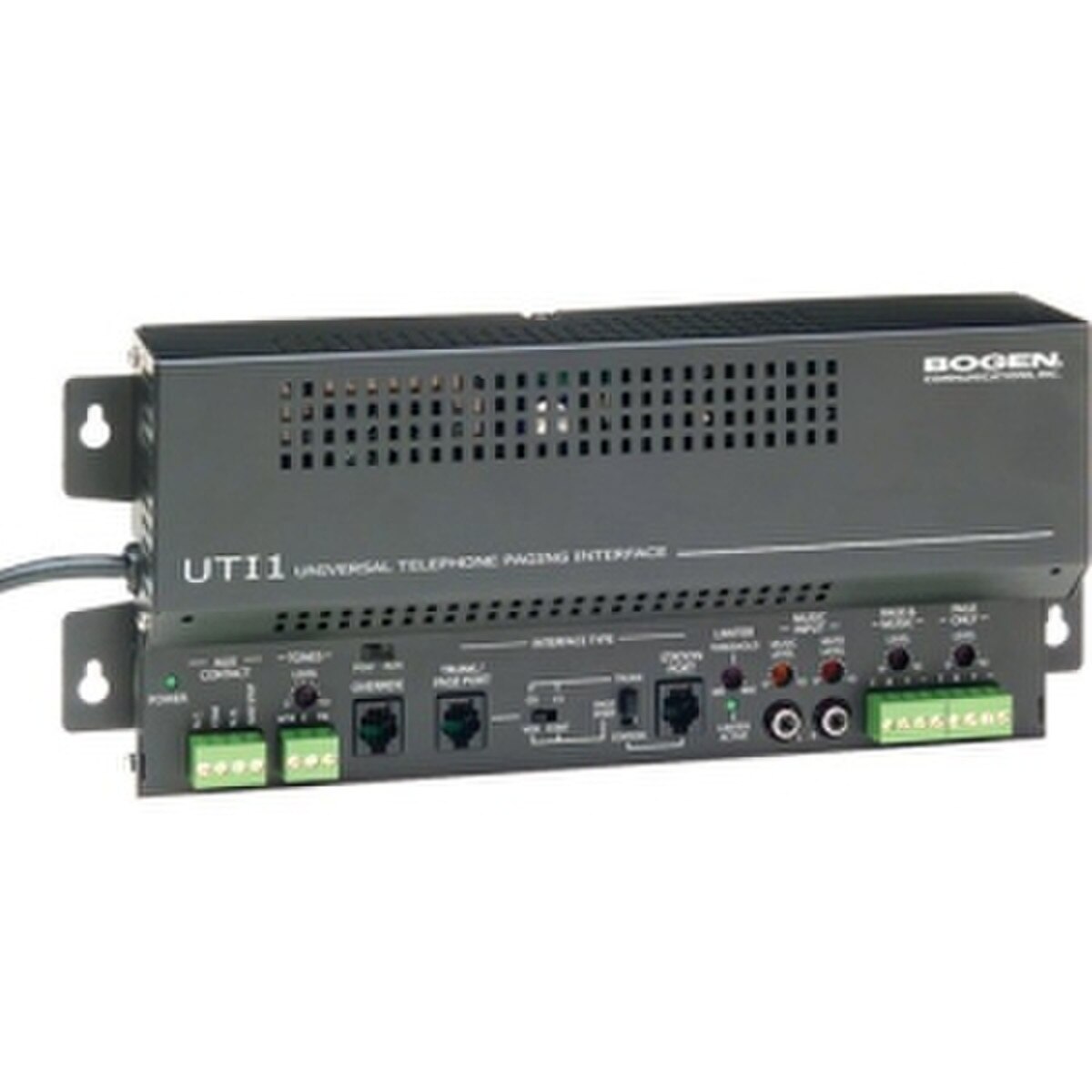

TELEPHONE INTERFACE, SINGLE ZONE, UNIVERSAL, MUSIC AND PAGING

Features:

  • Single-zone paging
  • Telephone interfaces: loop start trunk, ground start trunk, station access (analog ring-up), page port contact closure activation, page port voice activation
  • Simple 2-switch interface setup
  • Override paging (using loop start trunk or page port contact closure activation)
  • Programmable activation of AUX contacts
  • C-form contact
  • Two audio outputs (Page Only and Page with Background Music) both with level controls
  • Each output can provide audio drive for 150 selfamplified speakers
  • High impedance transformer-isolated background music input with volume control
  • Variable music mute
  • Night Ringer (contact closure activation)
  • Tone Trigger (tone and duration selectable, closureactivated)
  • Tone burst (2 to 7 sec), chime, and slow whoop tone selections
  • Pre-Announce/Confirmation Tone
  • Adjustable output limiter with threshold control and active indicator
  • Programmable timers control page duration (station and trunk)
  • DTMF programming
  • DTMF Block to help suppress DTMF tones over paging system
  • Non-volatile memory for setup data (no backup battery required)
  • Setup Tone to assist in volume setting
  • Pluggable terminal strips
  • Microcontroller-based operation
  • Wall mounting flanges
  • Rack panel kit with security cover available (RPKUTI1 sold separately)
  • Two-Year Warranty
