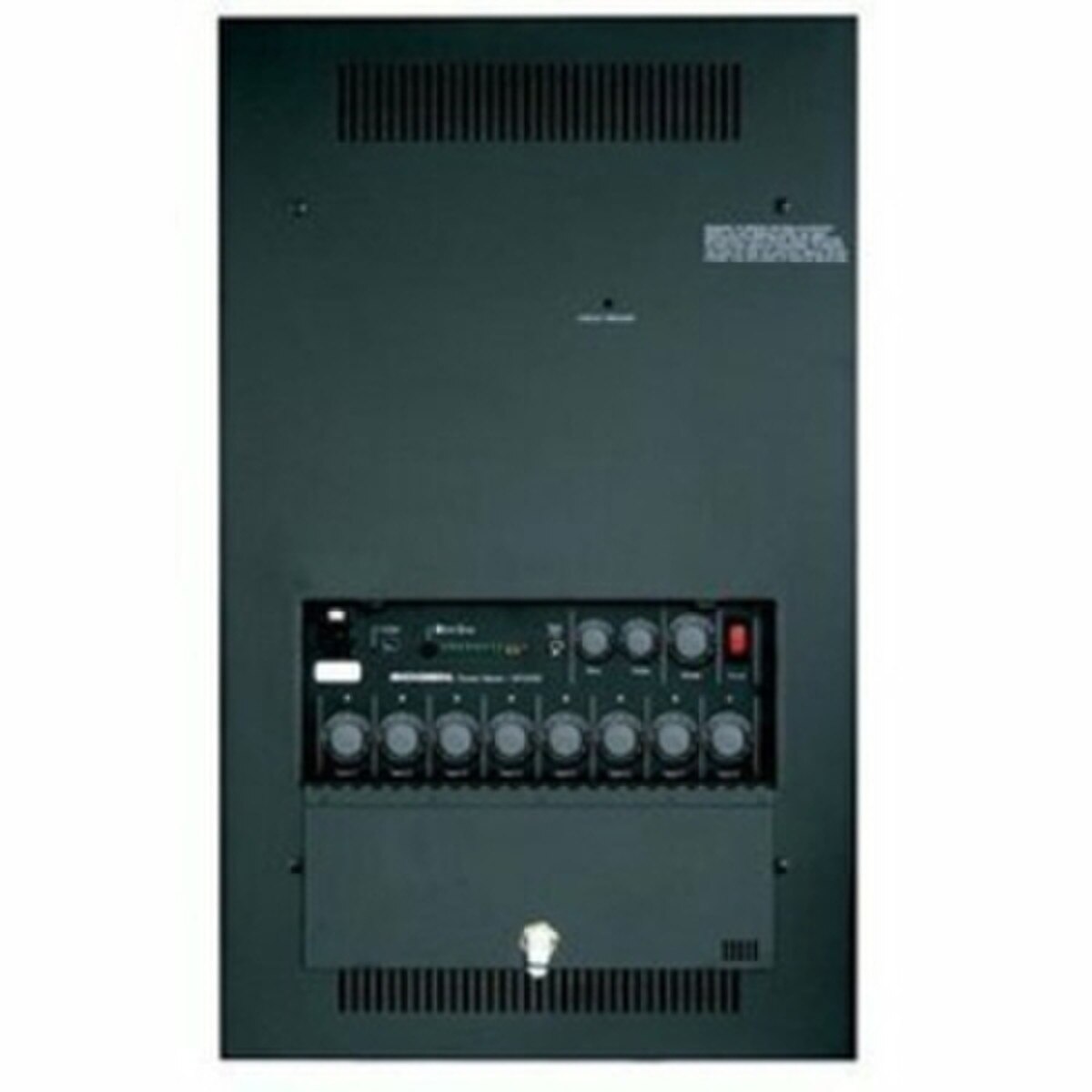

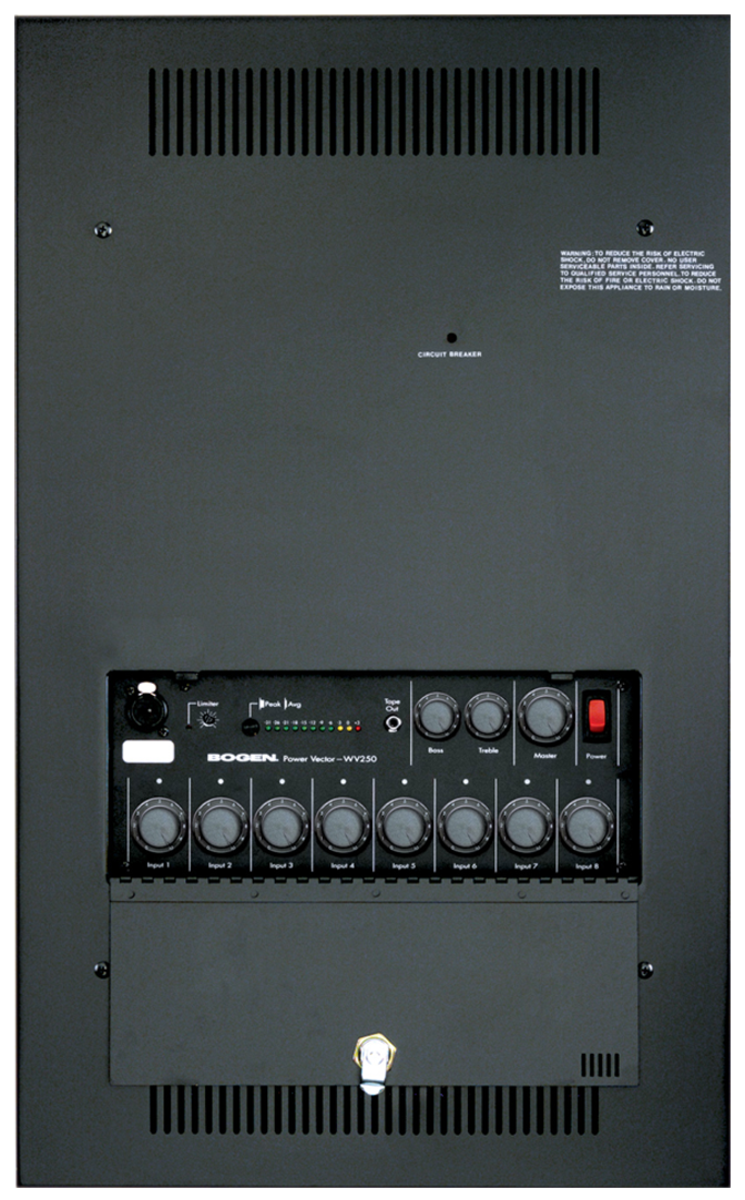

WV250
Features:
- 100-,150-, and 250-watt models, each with a large power reserve
- Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
- 8 module bays
- Wide selection of advanced plug-in modules
- 2 module bays capable of handling signal processing plug-in output modules
- 4 levels of priority between modules
- 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
- Adjustable output level limiter with limit indicator
- Tape output available on front of unit
- Optional front-mounted input combo jack with 1/4'' stereo phone and female XLR capabilities
- Motorized master volume control can be remotely operated
- Bass and treble controls with center detent
- Two-color LED for each channel indicates input active/clipping
- Switch permits user to select either transformercoupled outputs or a direct low-impedance output
- Bass and treble control bypass switch (located in module bay 6)
- 125 Hz Lo-cut feature (switch located in module bay 6)
- 5-position barrier strip, with clamping washers, provides connections for speaker loads
- Master mute function overrides all audio from the mixer section of the amplifier
- Screw terminal for master mute and remote volume control functions
- Each of the 8 module bays has an associated independent volume control
- Remote volume control panel (RVCP) (sold separately)
- Requires flush-mount (Model BBF) or surfacemount (Model BBS) back boxes (sold separately)
- Requires front cover door (WMAD sold separately)
- UL and CSA Listed
