ZM-9001

SKU ZM-9001-3933

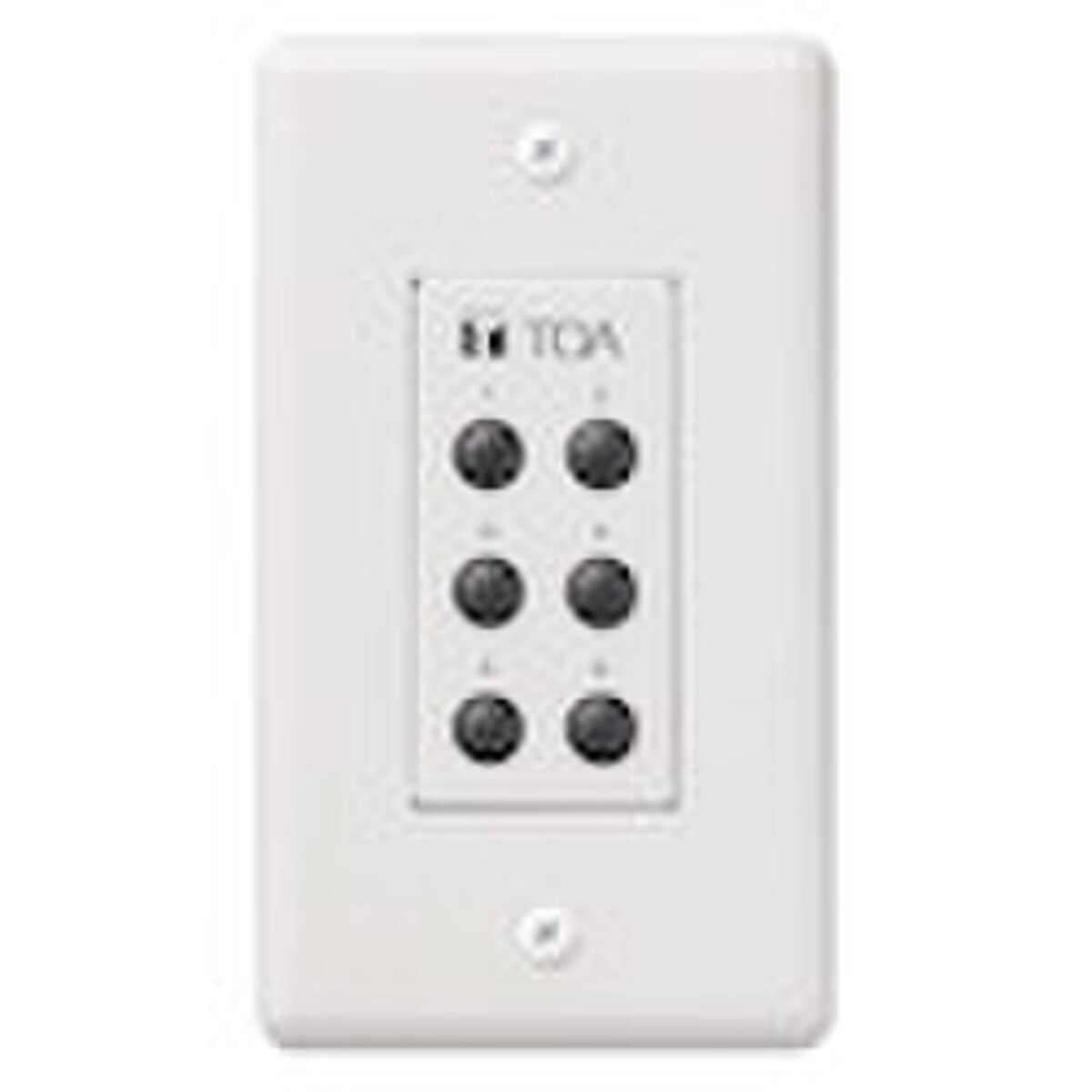

The ZM-9001 is a remote control switch panel used with the 9000 series amplifiers. It provides an additional 6 control inputs of amplifier expansion, and can be mounted in an American standard 1-gang electrical box in the wall.

Features:

  • Six buttons to activate preset selection or volume up/down
  • Wiring: shielded conductor to chassis Remote Volume terminals
  • Max. loop resistance: 100 ohms (3000 ft. 22AWG)
  • Fits one gang electrical box
  • Maximum two ZM-9001/ZM-9002 per chassis
  • Uses built in 9000M2 REMT VOL port
