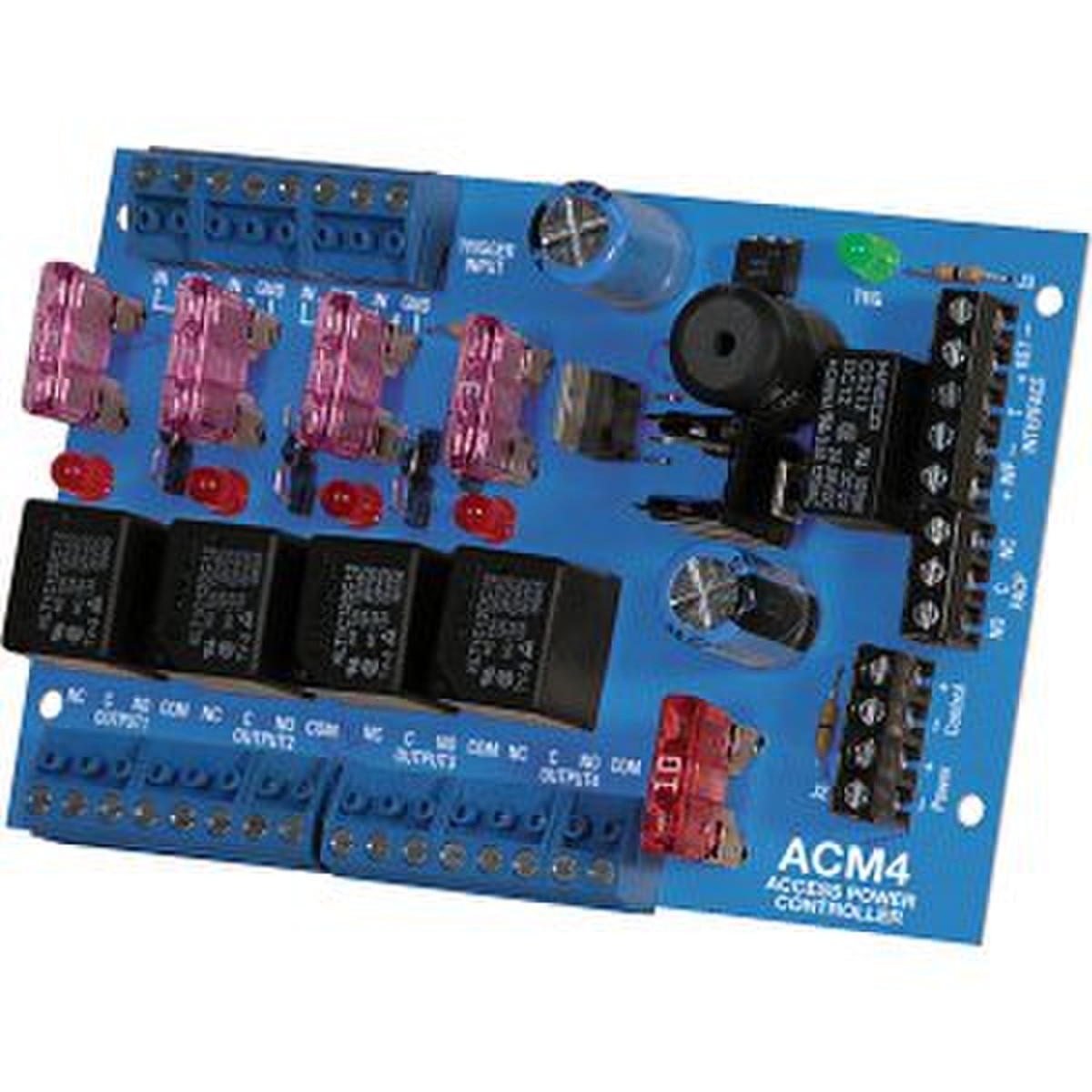

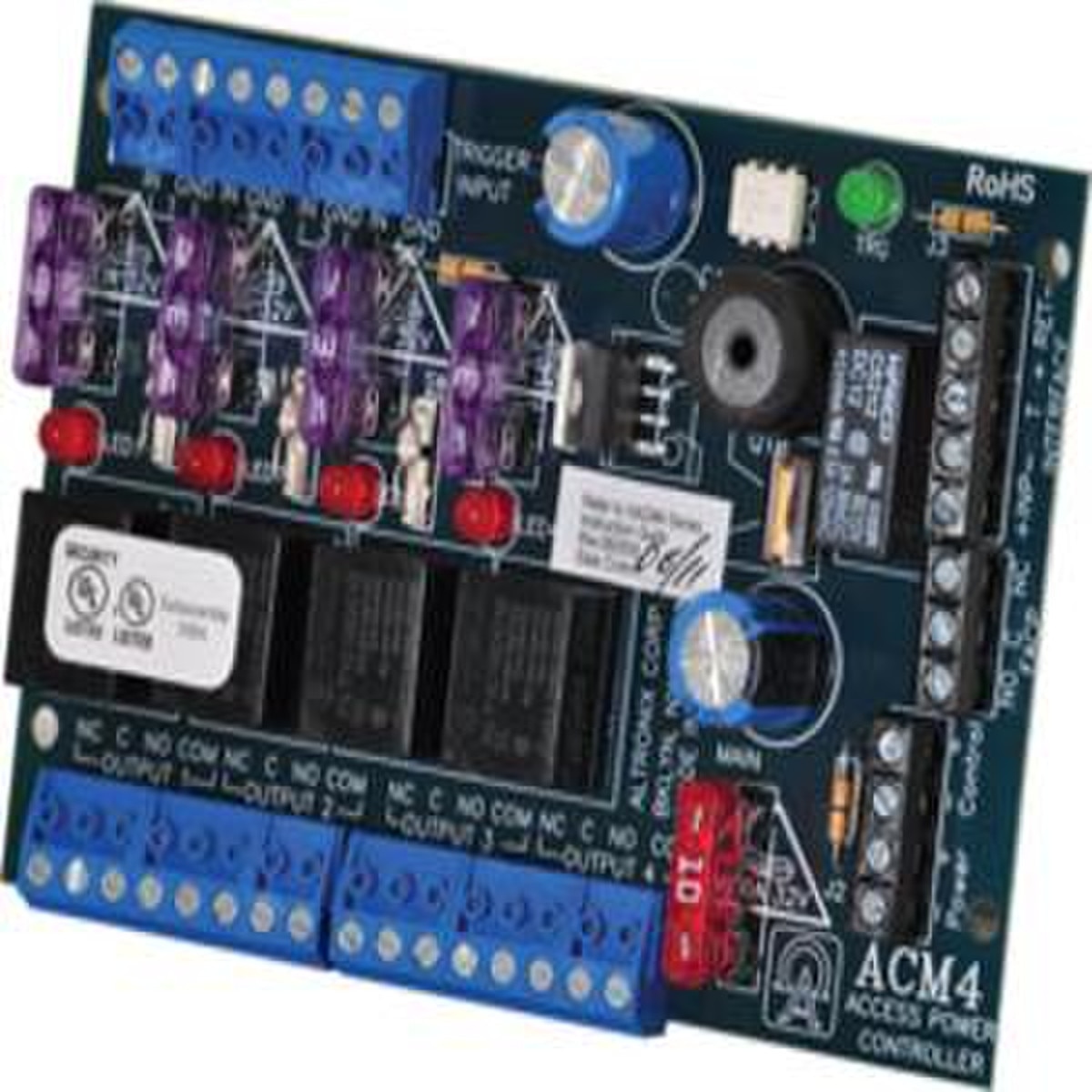

ACM4

Features:

• 12 to 24 volt AC or DC operation (setting not required).
• Any power output may be converted to dry form ''C'' relay output.
• Four (4) Access Control System outputs.
• Four (4) Access Control System trigger inputs.
• Four (4) fuse protected 12VDC auxiliary power outputs (unswitched).
• Four (4) fuse protected Fail-Safe and/or Fail-Secure 12VDC power outputs.
• Four (4) normally open (NO) inputs.
• Four (4) open collector inputs.
• One (1) common power input (board and lock power).
• one (1) for lock/hardware power).
• Power Supply Input Options:
• Red LEDs indicate outputs are triggered (relays energized).
• Two (2) isolated power inputs (one (1) for board power and
