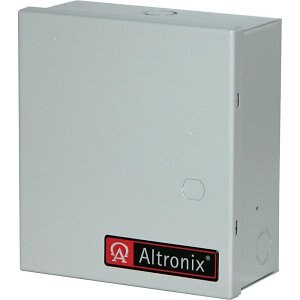

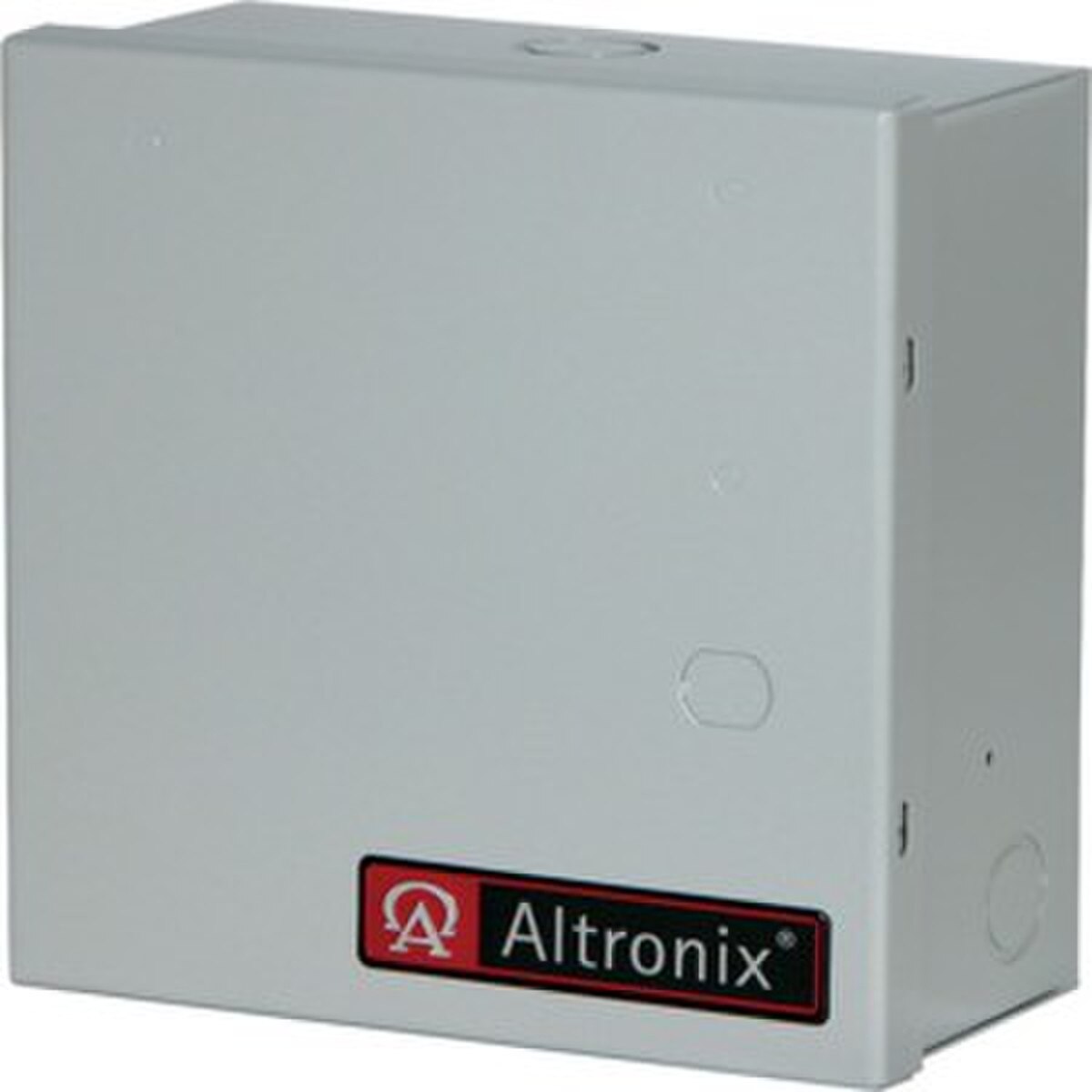

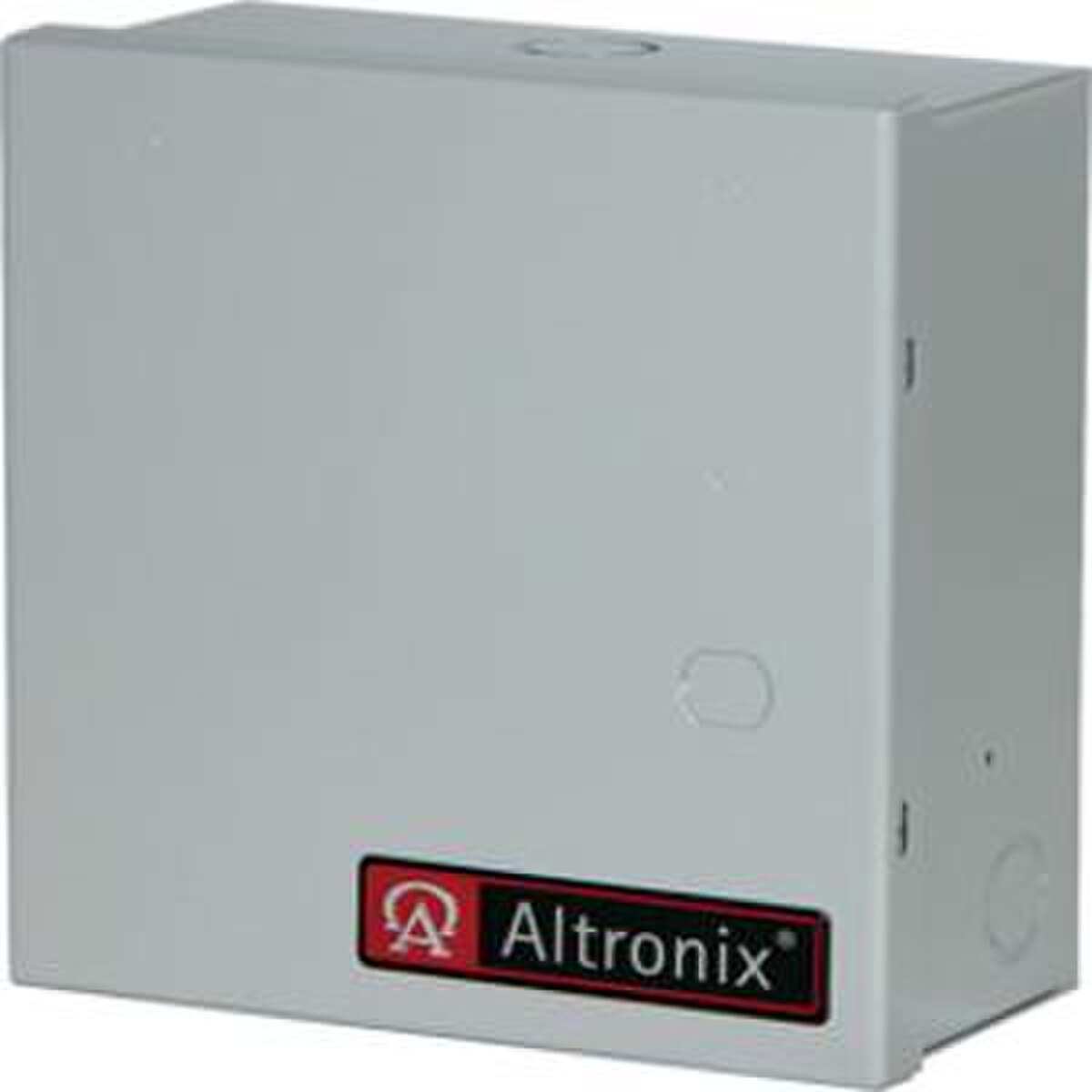

ACM4CBE
Features:
- 12 to 24 volt AC or DC operation (setting not required).
- Any combination of the above.
- Class 2 Rated power limited outputs.
- Fire Alarm Disconnect (latching or non-latching) is individually selectable for any or all of the four (4) outputs.
- Fire Alarm Disconnect:
- Fire Alarm output relay for triggering auxiliary reporting devices
- Fire Alarm trigger LED indicates that the Fire Alarm Disconnect has been activated.
- Four (4) Access Control System outputs.
- Four (4) Access Control System trigger inputs.
- Four (4) normally open (NO) inputs.
- Four (4) open collector inputs.
- Four (4) PTC protected 12VDC auxiliary power outputs (unswitched).
- Four (4) PTC protected Fail-Safe and/or Fail-Secure 12VDC power outputs.
- Normally open (NO) or normally closed (NC) dry contact input.
- One (1) common power input (board and lock power).
- one (1) for lock/hardware power).
- Polarity reversal input FACP signaling circuit.
- Power Supply Input Options:
- Red LEDs indicate outputs are triggered (relays energized).
- Two (2) isolated power inputs (one (1) for board power and
