AL1002ULADAJ

Technology partner: V474 Altronix Corporation
SKU AL1002ULADAJ-474

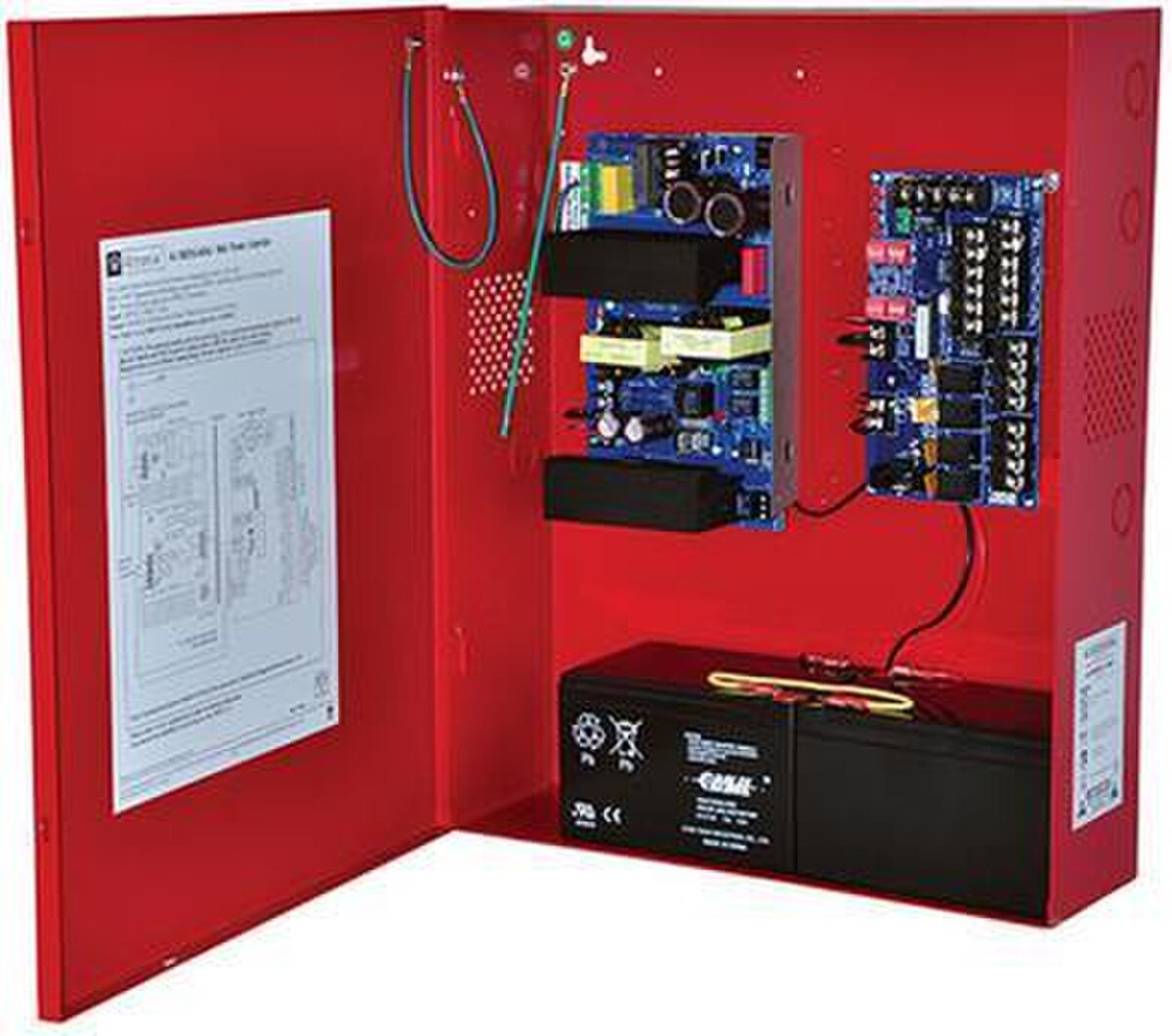

The AL1002ULADAJ are extremely cost effective voltage regulated remote NAC Power Extenders. They may be connected to any 24 volt Fire Alarm Control Panel (FACP). Primary applications include Notification Appliance Circuit (NAC) expansion (supports ADA requirements) and will provide auxiliary power to support system accessories.

Features:

  • 10 amp max total alarm current.
  • 115VAC 60Hz., 4.4 amp.
  • 24VDC output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
