AL100UL

Technology partner: V474 Altronix Corporation
SKU AL100UL-474

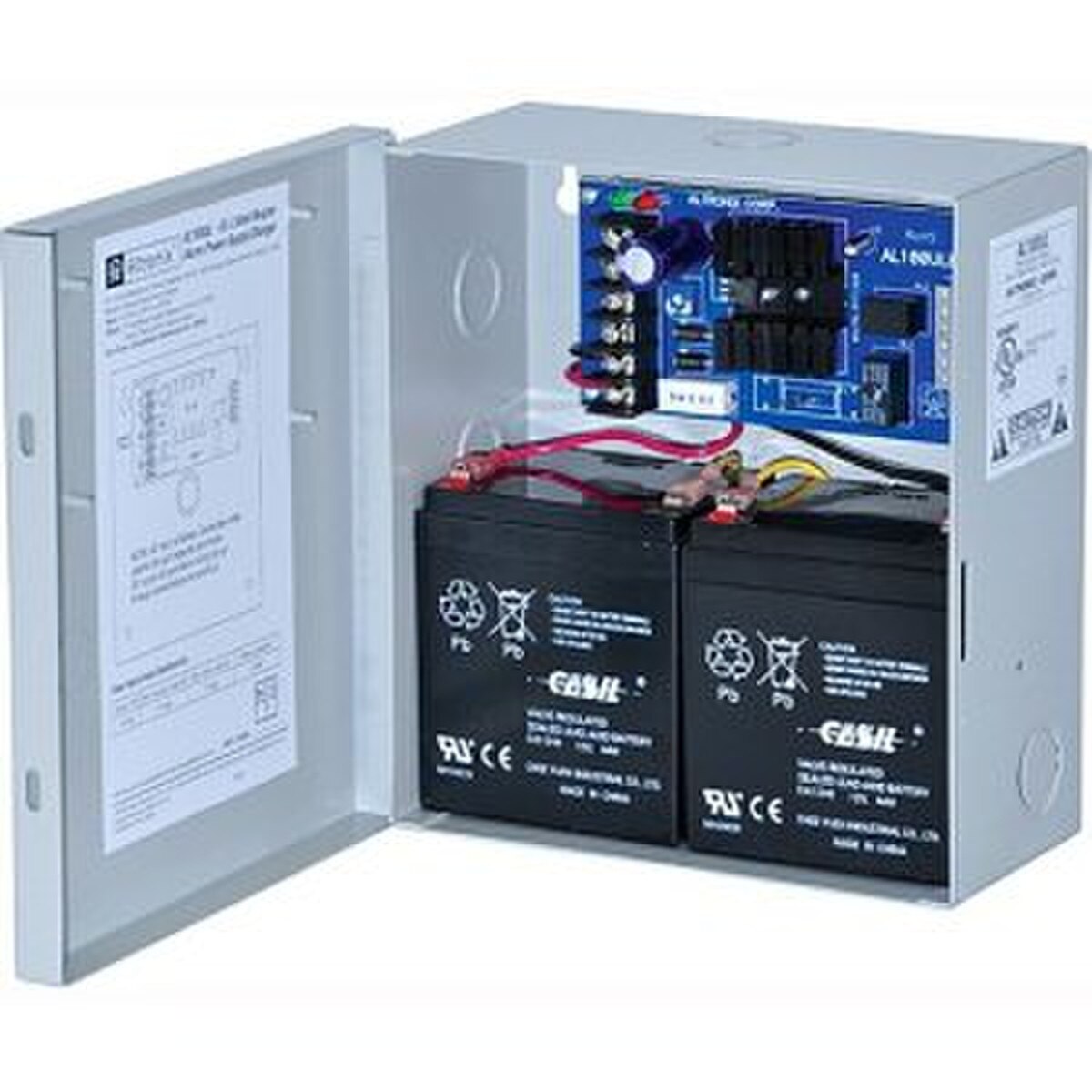

Altronix AL100UL linear power supply/charger converts a low voltage input into a 12VDC output.

Features:

  • .75A continuous supply current @ 12.5 to 13.9VDC.
  • 12VDC power limited output.
  • 16.5VAC/20VA input from UL Listed, Class 2 transformer.
  • AC input and DC output LED indicators
  • Automatic switch to stand-by battery when AC fails.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .5 amp.
  • Short circuit and thermal overload protection.
