AL1012ULACM

Technology partner: V474 Altronix Corporation
SKU AL1012ULACM-474

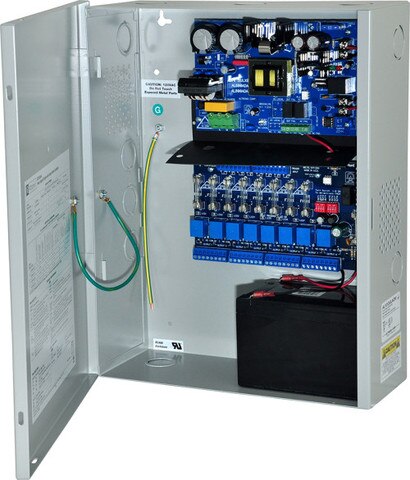

Altronix AL1012ULACM converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC non power limited fuse protected Fail-Safe and/or Fail-Secure outputs with a total of 10A continuous supply current. The fire alarm disconnect feature enables emergency egress in the event the fire alarm system is activated. It is individually selectable for any or all of the eight (8) outputs. Model AL1012ULACMCB is a PTC protected version of this unit.
Suggested Replacement for EFLOW102NA8

Features:

  • 10 amp of continuous supply current.
  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC output.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
