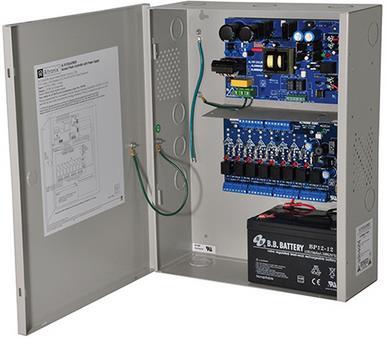

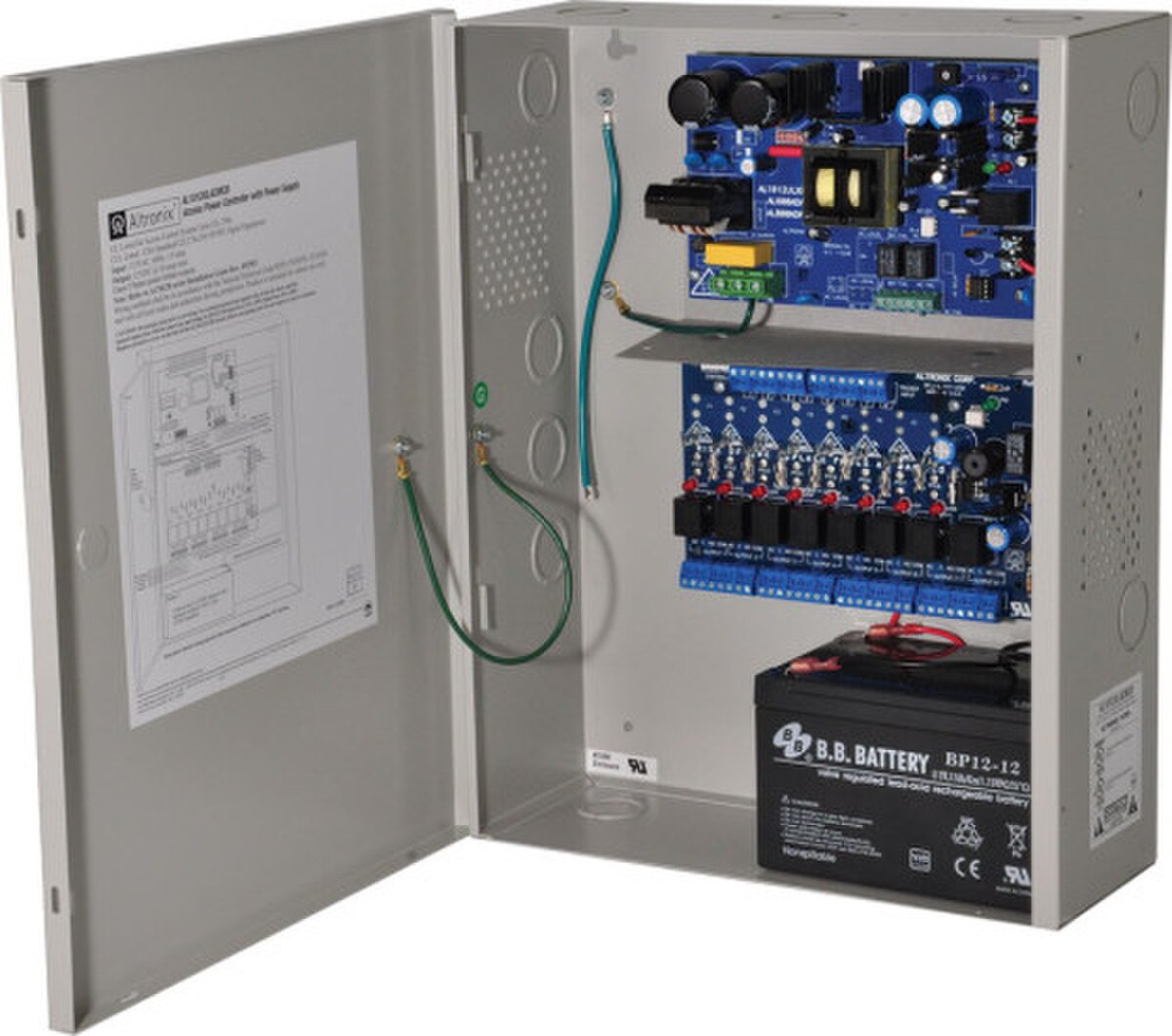

AL1012ULACMCB

Technology partner: V474 Altronix Corporation
SKU AL1012ULACMCB-474
Access power controller with power supply/charger, 8 PTC class 2 / Suggested Replacement for EFLOW102NA8D

Features:

  • 10 amp of continuous supply current.
  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC output.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
