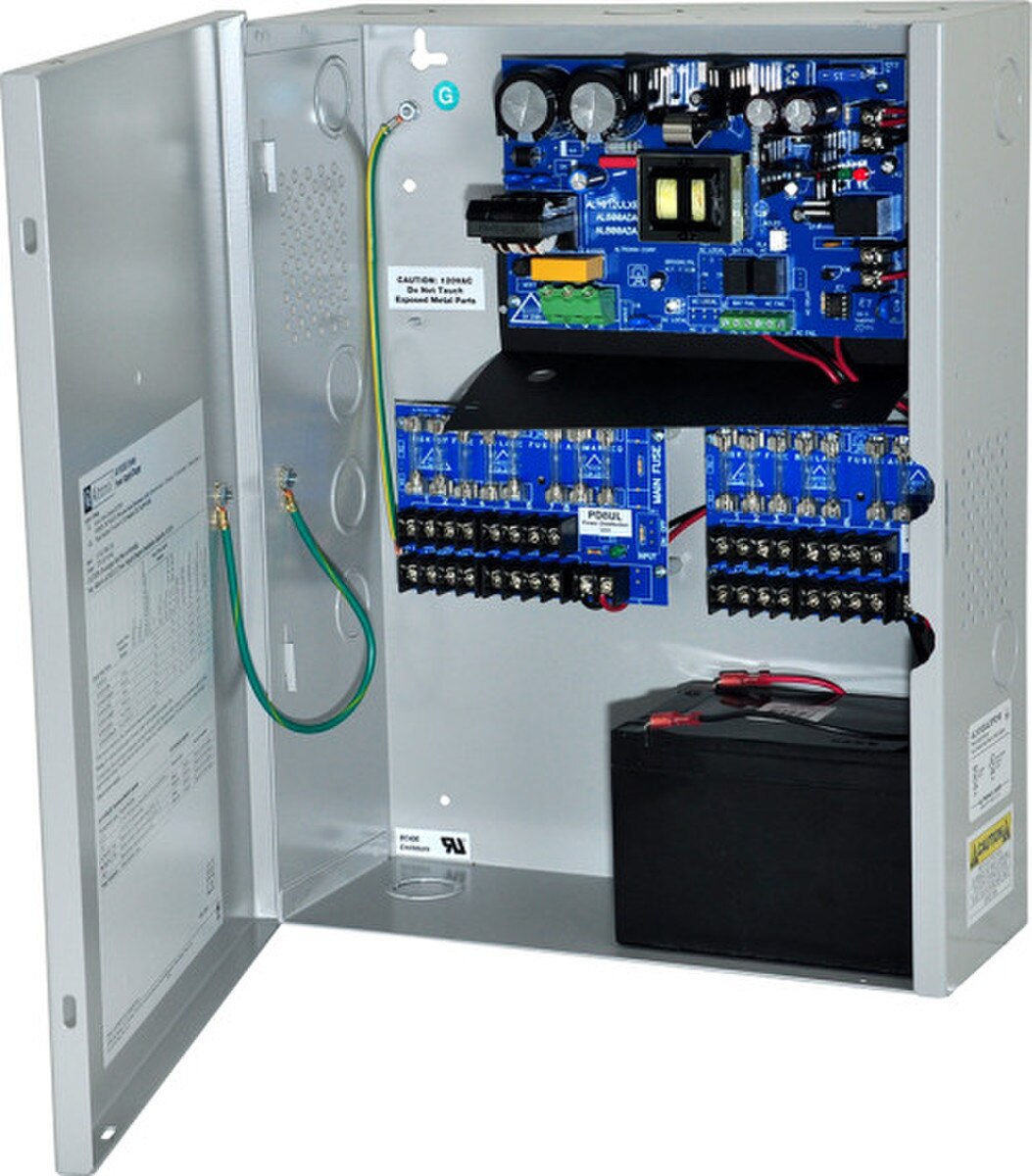

AL1012ULXPD16
Features:
- 10 amp of continuous supply current.
- 115VAC 60Hz, 1.9 amp input.
- 12VDC output.
- AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
- AC input and DC output LED indicators.
- Built-in charger for sealed lead acid or gel type battery backup.
- Filtered and electronically regulated outputs.
- Fuses are rated @ 3.5 amp.
- Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
- Maximum charge current .7 amp.
- Short circuit and thermal overload protection.
- Sixteen (16) fuse protected outputs.
- Zero voltage drop upon transfer to battery backup.
