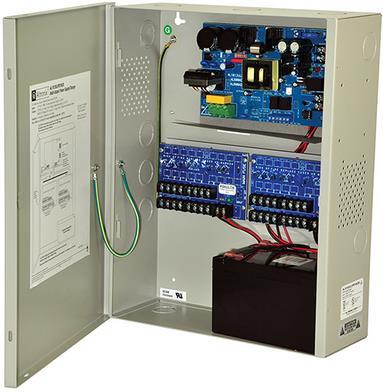

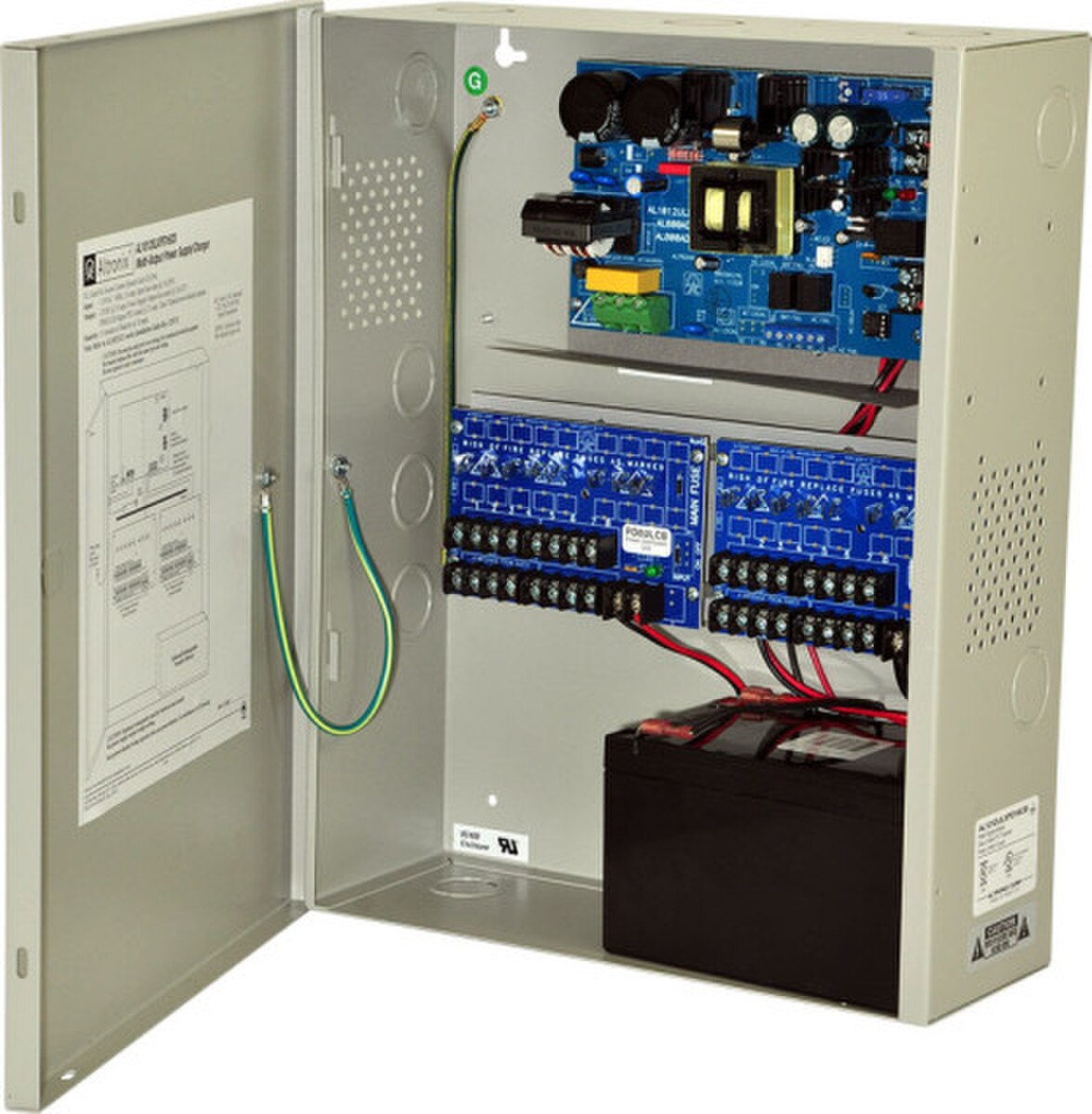

AL1012ULXPD16CB

SKU AL1012ULXPD16CB-474
UL 10A 12VDC P/S W16 PTC OUT

Features:

  • 10 amp of continuous supply current.
  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited outputs.
  • Filtered and electronically regulated outputs.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • PTCs are rated @ 2.5 amp.
  • Short circuit and thermal overload protection.
  • Sixteen (16) PTC protected outputs.
  • Zero voltage drop upon transfer to battery backup.
