AL1024ULACM

Technology partner: V474 Altronix Corporation
SKU AL1024ULACM-474

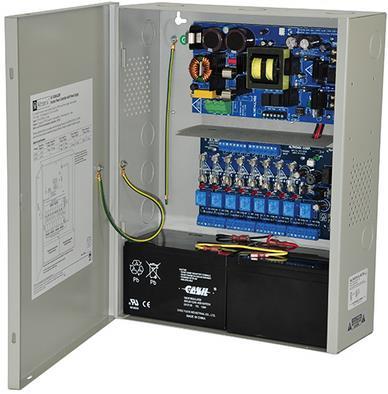

Access power controller with power supply/charger, 8 fused relay / Suggested Replacement for EFLOW104NA8

Features:

  • 10 amp of continuous supply current.
  • 115VAC 60Hz, 4.4 amp input.
  • 115VAC 60Hz, 4.4 amp input.
  • 115VAC 60Hz, 4.4 amp input.
  • 24VDC output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup
  • Filtered and electronically regulated outputs
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Low battery and battery presence supervision (form ''C'' contact
  • rated @ 1 amp 28VDC).
  • Maximum charge current 3.6 amp
  • Short circuit and thermal overload protection.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup
