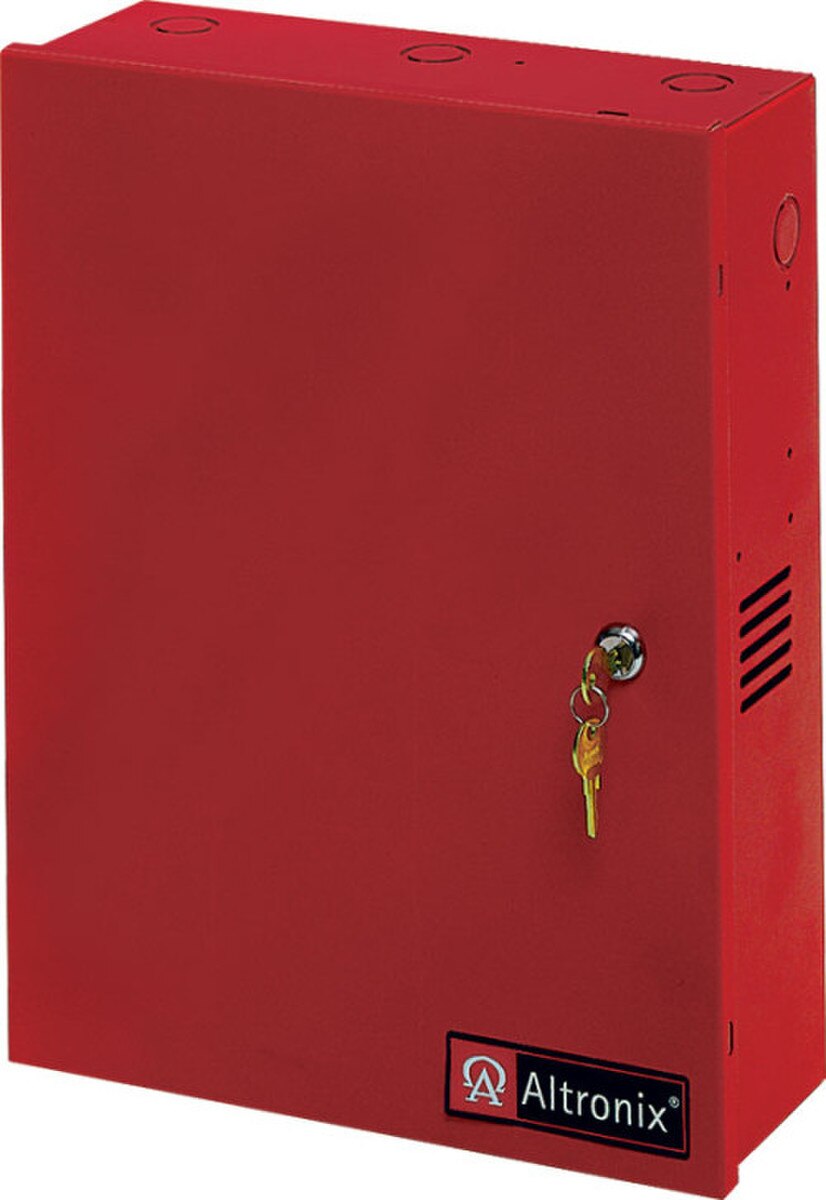

AL1024ULMR

Technology partner: V474 Altronix Corporation
SKU AL1024ULMR-474
AL1024ULMR multi-output access control power supply/charger is specifically designed for use with access control systems and accessories.This unit converts a 115VAC, 60Hz input into five (5) individually protected Class 2 Rated power limited 24VDC outputs. Each output will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. These outputs will operate in both Fail-Safe and Fail-Secure modes. Controlled trigger input is achieved through normally open (N.O.) or normally closed (N.C.) supervised input or the polarity reversal from an FACP (Fire Alarm Control Panel). A form ''C'' dry output relay enables HVAC Shutdown, Elevator Recall or it may be used to trigger auxiliary devices.

Features:

  • 115VAC 60Hz, 4.4 amp input.
  • 24VDC output.
  • 8 amp with 10 amp during alarm supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
