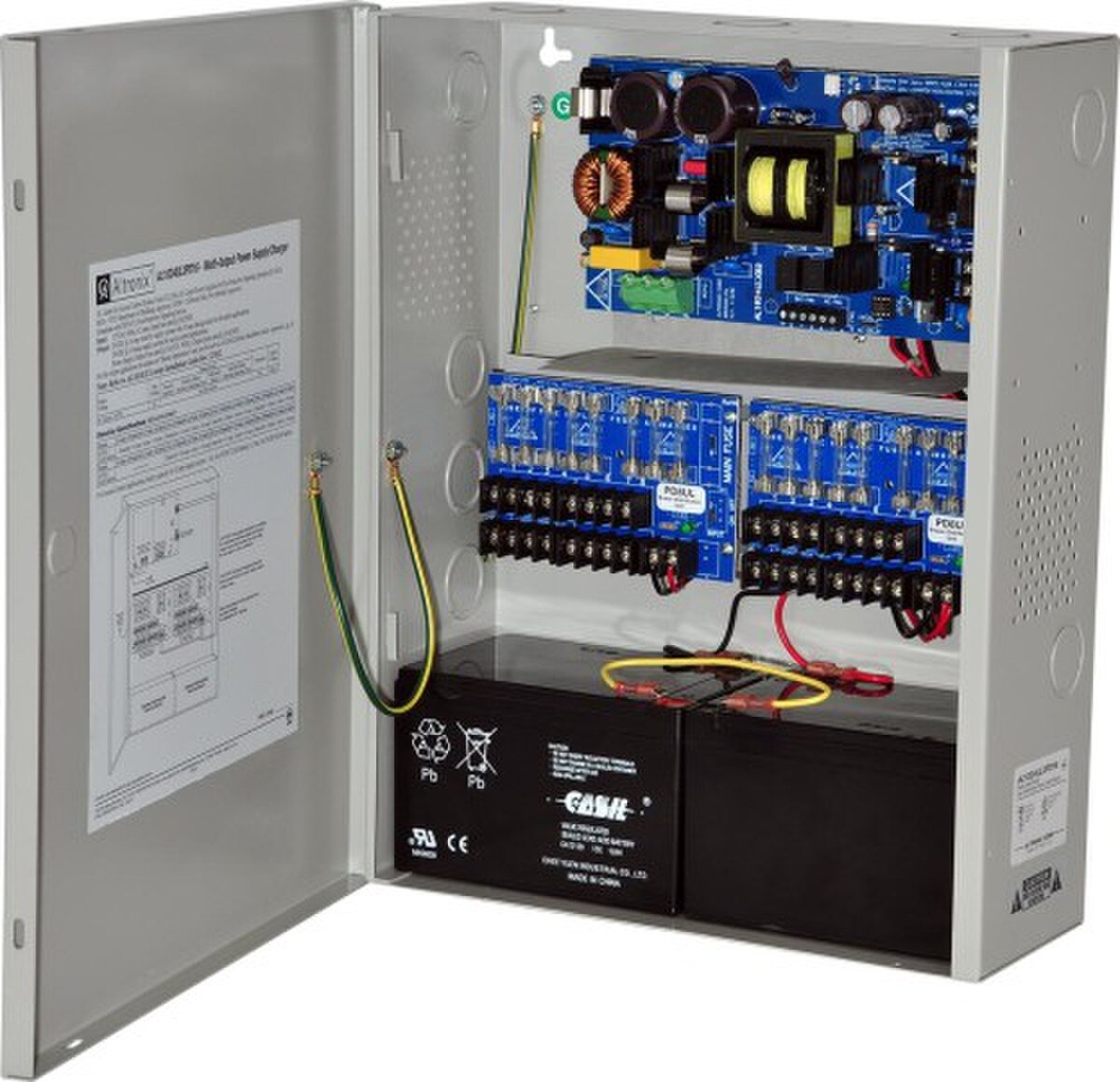

AL1024ULXPD16

Technology partner: V474 Altronix Corporation
SKU AL1024ULXPD16-474
Power supply charger, 16 fused output, 24VDC @ 10A, 115VAC, BC400 / Suggested Replacement for EFLOW104NX16

Features:

  • 10 amp of continuous supply current for Access Control applications
  • 115VAC 60Hz, 4.4 amp input.
  • 24VDC output.
  • 8 amp of continuous supply current, 10 amp during alarm for
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Fire Alarm applications.
  • Fuses are rated @ 3.5 amp.
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Sixteen (16) fuse protected outputs.
  • Zero voltage drop upon transfer to battery backup.
