AL1024ULXPD16CB

Technology partner: V474 Altronix Corporation
SKU AL1024ULXPD16CB-474

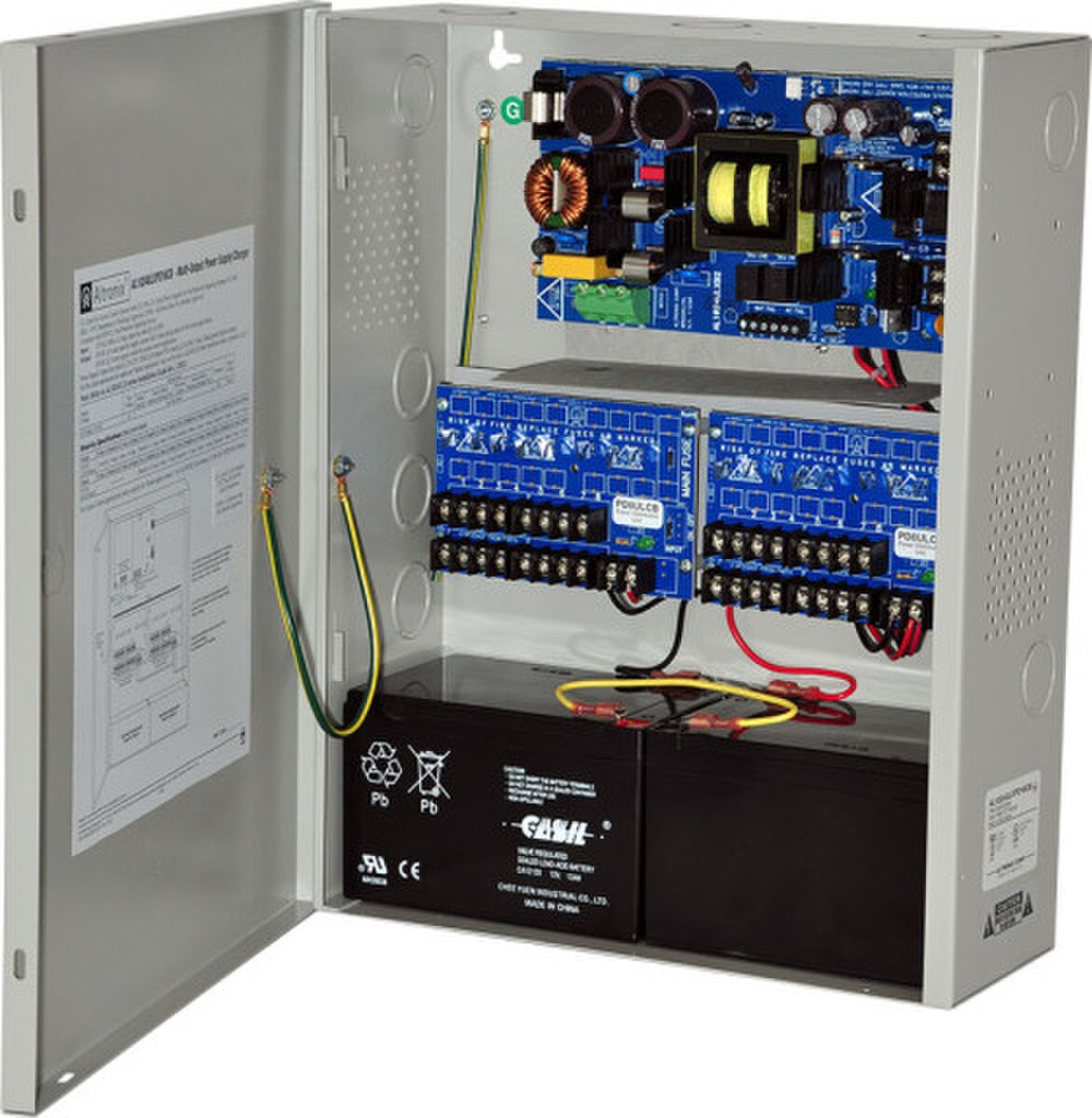

AL1024ULXPD16CB is a multi-output power supply/charger which converts a 115VAC, 60Hz input into sixteen (16) 24VDC Class 2 Rated power limited outputs.
Suggested Replacement for EFLOW104NX16D

Features:

  • 10 amp of continuous supply current for Access Control applications
  • 115VAC 60Hz, 4.4 amp input.
  • 24VDC output.
  • 8 amp of continuous supply current, 10 amp during alarm for
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited outputs.
  • Filtered and electronically regulated outputs.
  • Fire Alarm applications.
  • Maximum charge current .7 amp.
  • PTCs are rated @ 2.5 amp.
  • Short circuit and thermal overload protection.
  • Sixteen (16) PTC protected outputs.
  • Zero voltage drop upon transfer to battery backup.
