AL125ULE

Technology partner: V474 Altronix Corporation
SKU AL125ULE-474

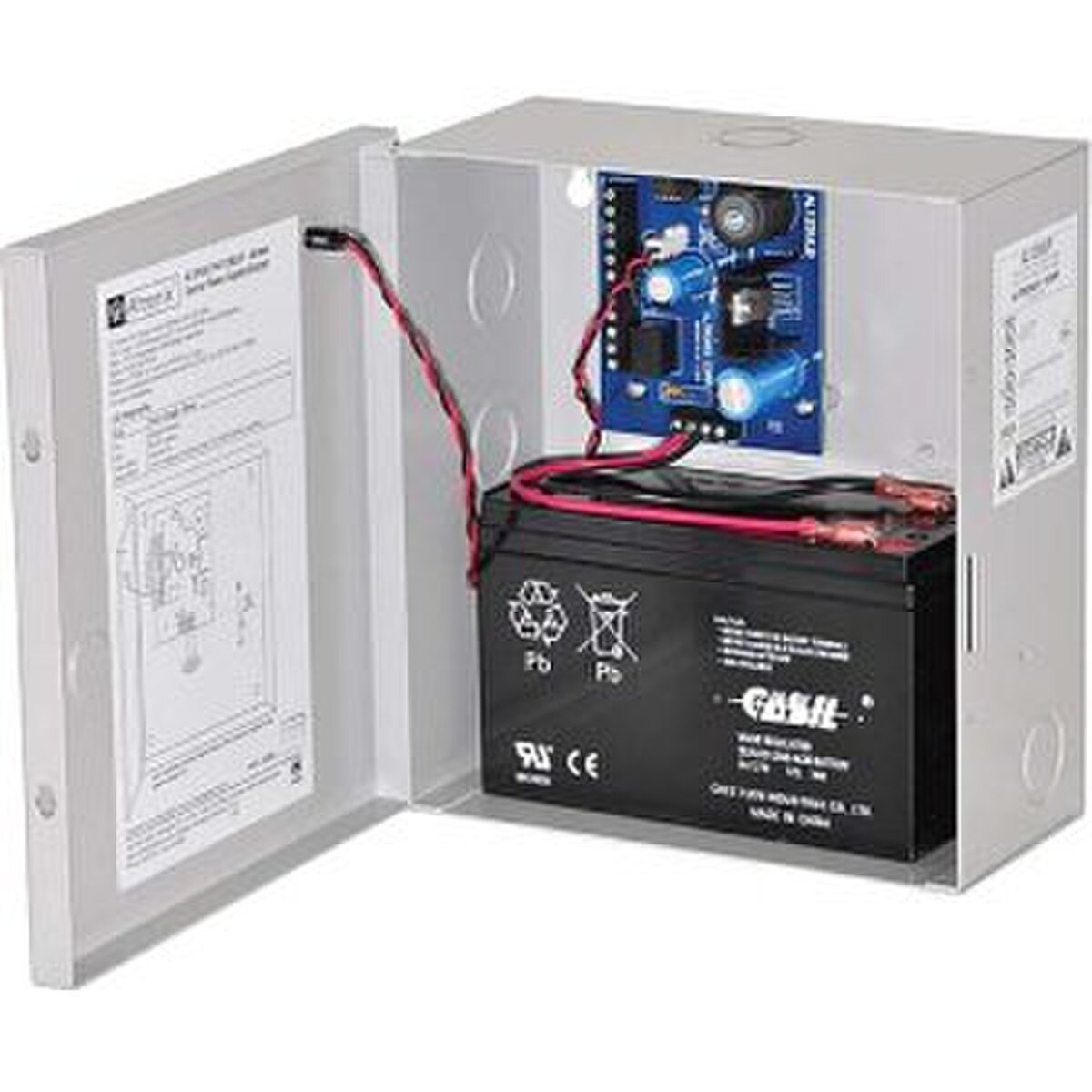

AL125ULE is a Two (2) Output Switching Power Supply/Charger that converts a 24VAC @ 40VA input, into two (2) individually PTC protected 12VDC or 24VDC outputs.

Features:

  • 1 amp at 12VDC or .5 amp @ 24VDC of total supply current.
  • 12VDC or 24VDC selectable output.
  • 24VAC/40VA input. Use UL listed plug-in transformer.
  • AC input and DC output LED indicators.
  • AC power and unit status indicator on the front panel.
  • Automatic switch to stand-by battery when AC fails.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .4 amp.
  • Normally Open (NO) trigger input.
  • Short circuit and thermal overload protection.
  • Supervised Fire Alarm Disconnect (Latching w/reset or Non-Latching).
  • Two (2) Class 2 Rated power limited outputs.
