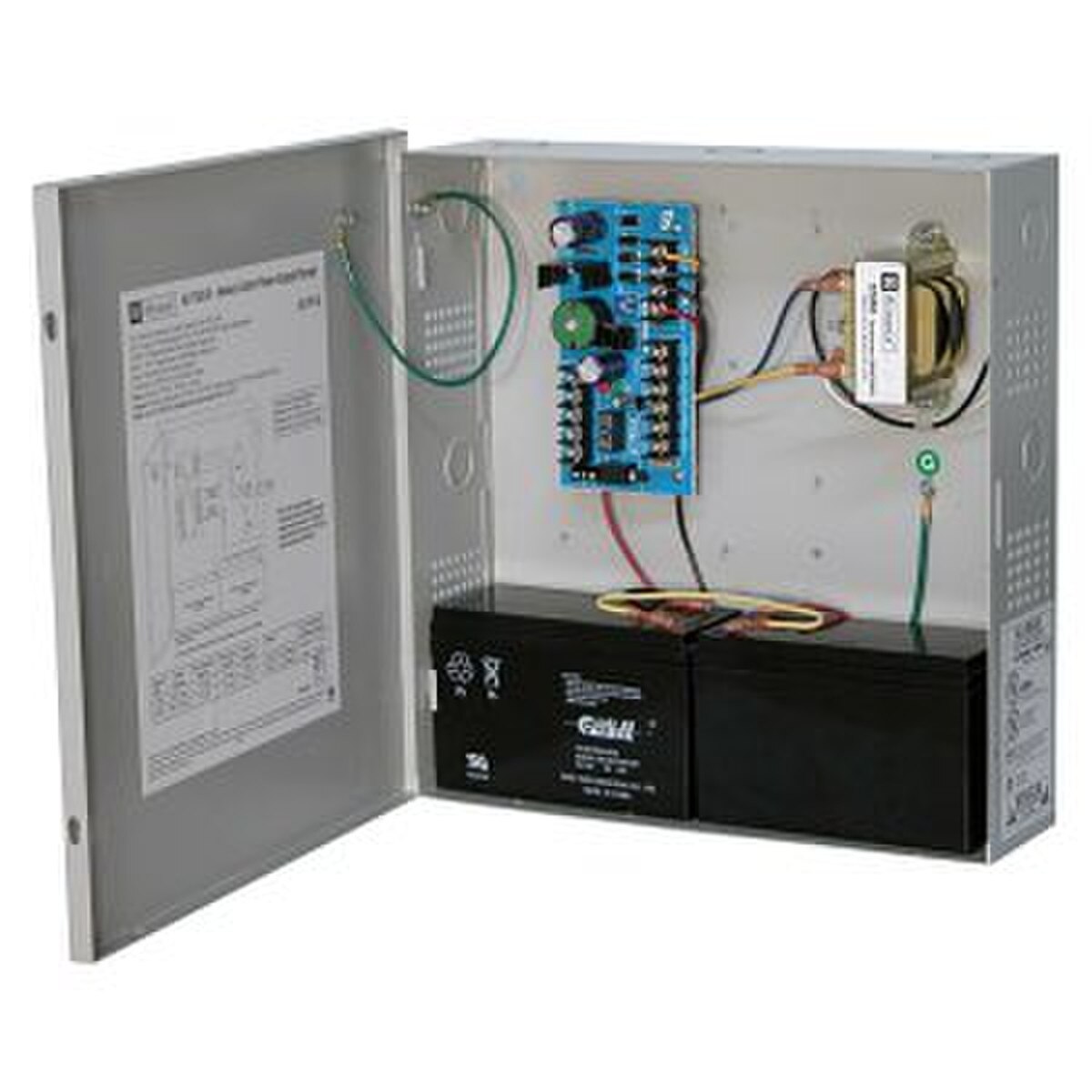

SKU AL175ULX-474
12/24VDC 1.75A.UL PS/CGR LG CB


  • 1.75 amp of continuous supply current
  • 115VAC 60Hz, .6 amp
  • 12VDC or 24VDC selectable output
  • AC fail supervision
  • AC input and DC output LED indicators
  • Automatic switch to stand-by battery when AC fails
  • Built-in charger for sealed lead acid or gel type battery backup
  • Dry Trigger Input
  • Dry trigger output supervision
  • Filtered and electronically regulated outputs
  • Maximum charge current .4 amp
  • Short circuit and thermal overload protection
  • Two (2) PTC protected Class 2 Rated power limited outputs
