AL176UL

Technology partner: V474 Altronix Corporation
SKU AL176UL-474

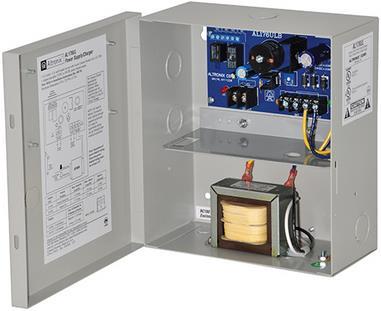

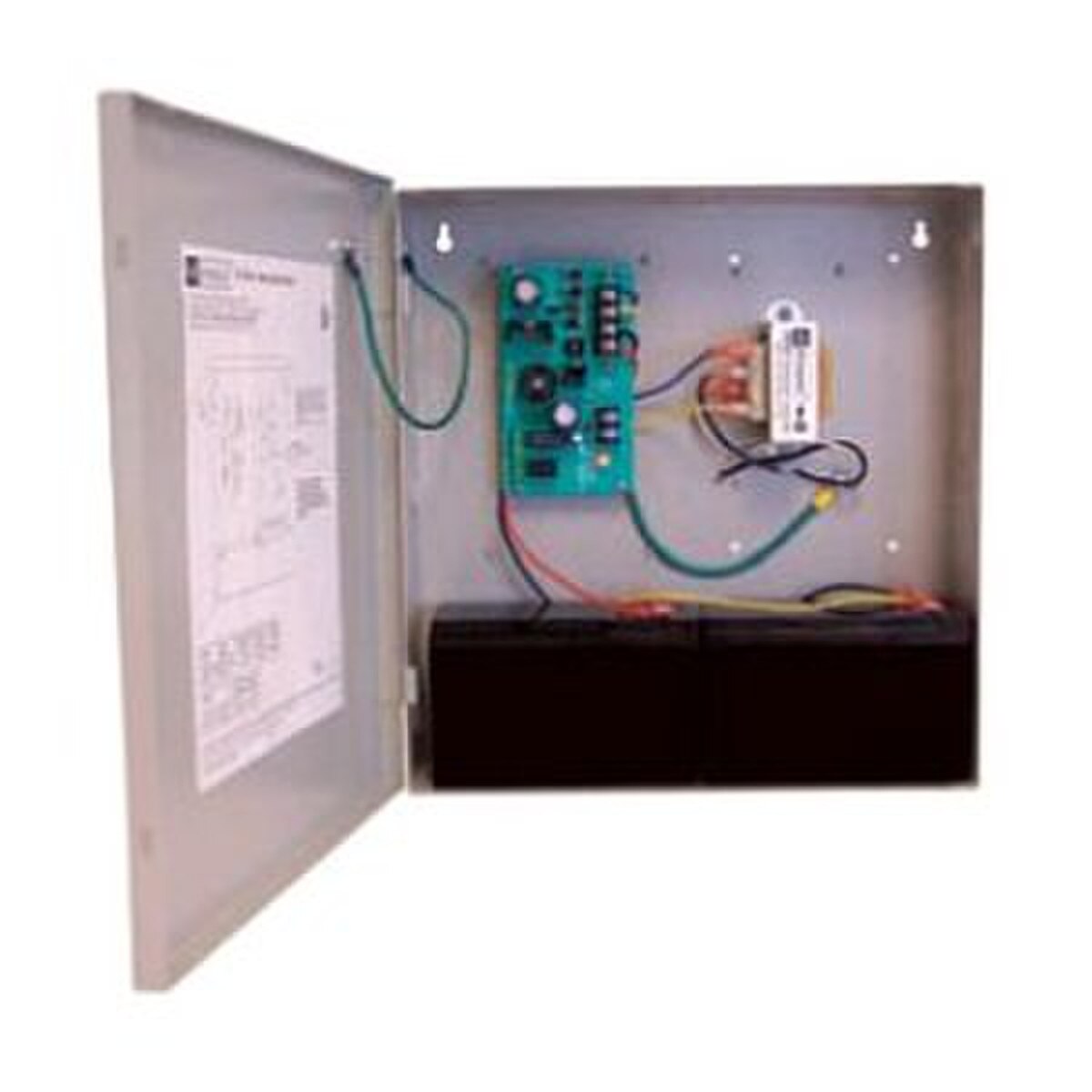

Altronix AL176UL is a Single Output Power Supply/Charger that converts a 115VAC 50/60Hz input into a PTC protected 12VDC or 24VDC output.

Features:

  • 1.75 amp of continuous supply current output.
  • 115VAC 60Hz, .6 amp input.
  • 12VDC or 24VDC selectable output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated outputs.
  • Low battery supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .4 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
