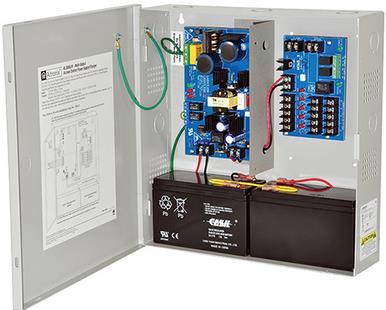

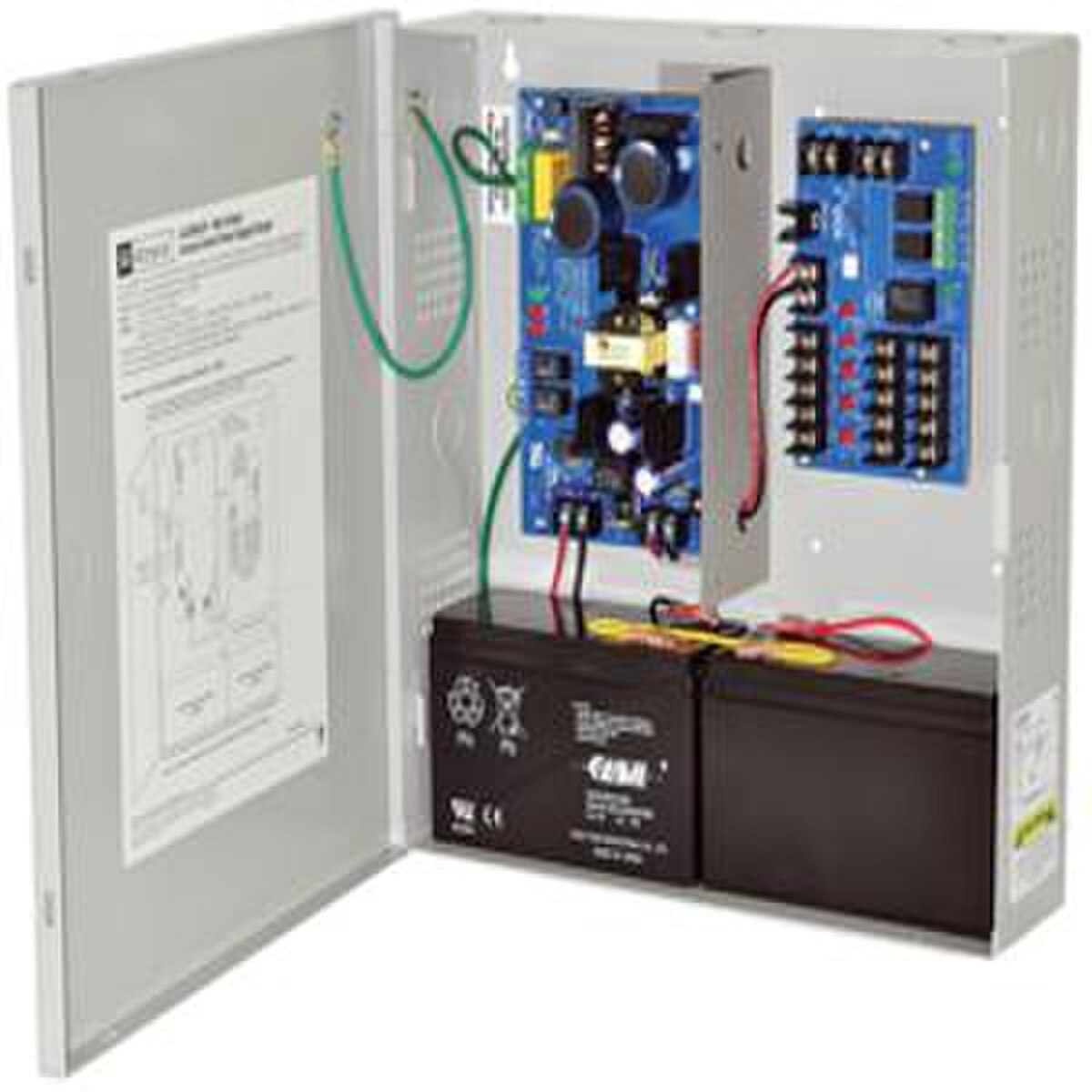

AL300ULM

Technology partner: V474 Altronix Corporation
SKU AL300ULM-474
Temporarily Unavailable-Contact PSA for Suggested Alternative Item /Access Power distribution module with power supply/charger, 5 PTC

Features:

  • 115VAC 60Hz, 1.45 amp input.
  • 12VDC or 24VDC selectable output.
  • 2.5 amp supply current.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
