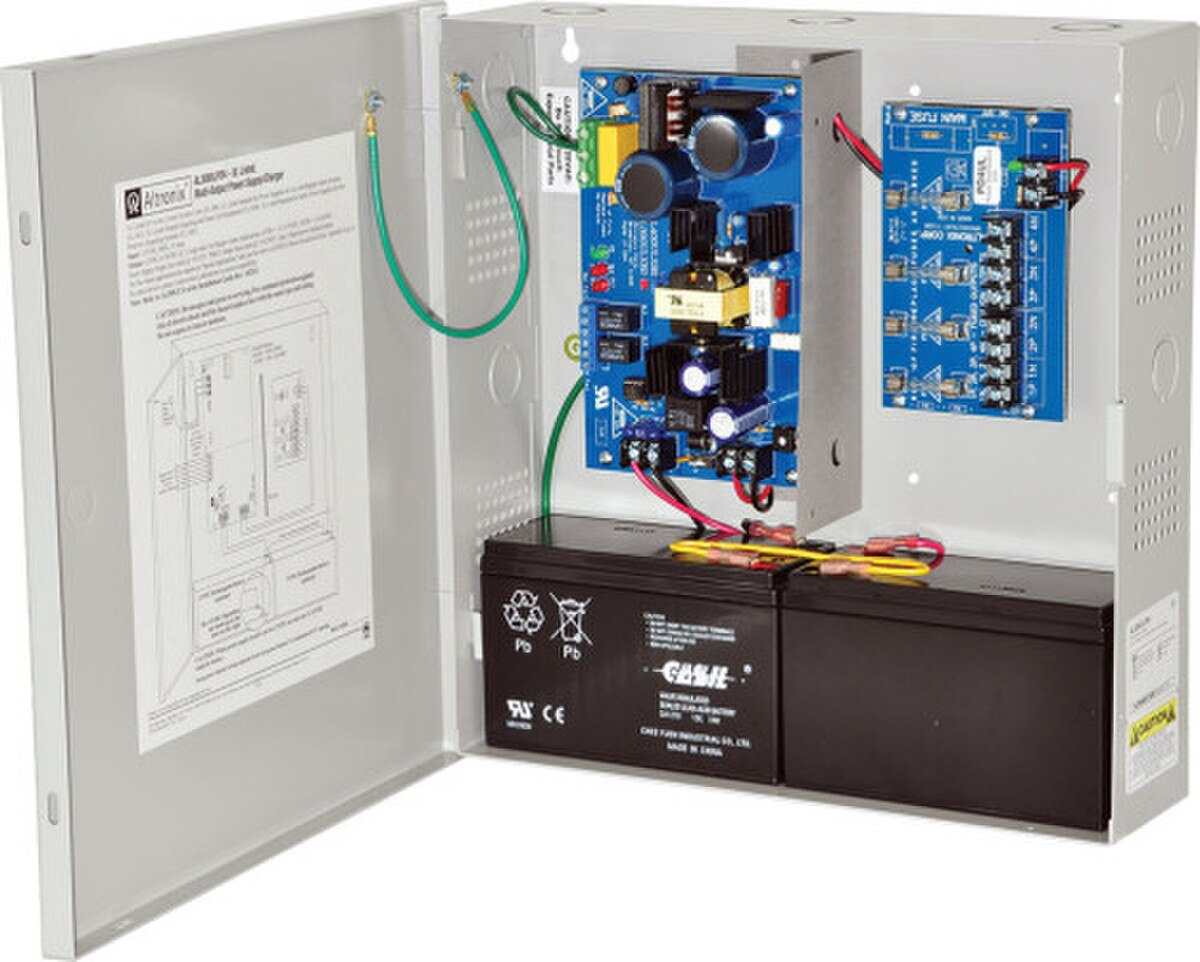

AL300ULPD4

Features:

• 115VAC 60Hz, 1.45 amp input.
• 12VDC or 24VDC selectable output.
• 2.5 amp supply current.
• AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
• AC input and DC output LED indicators.
• Built-in charger for sealed lead acid or gel type battery backup.
• Class 2 Rated power limited outputs.
• Filtered and electronically regulated outputs.
• Four (4) fuse protected outputs.
• Fuses are rated @ 3.5 amp
• Maximum charge current .7 amp.
• Short circuit and thermal overload protection.
• Zero voltage drop upon transfer to battery backup.
