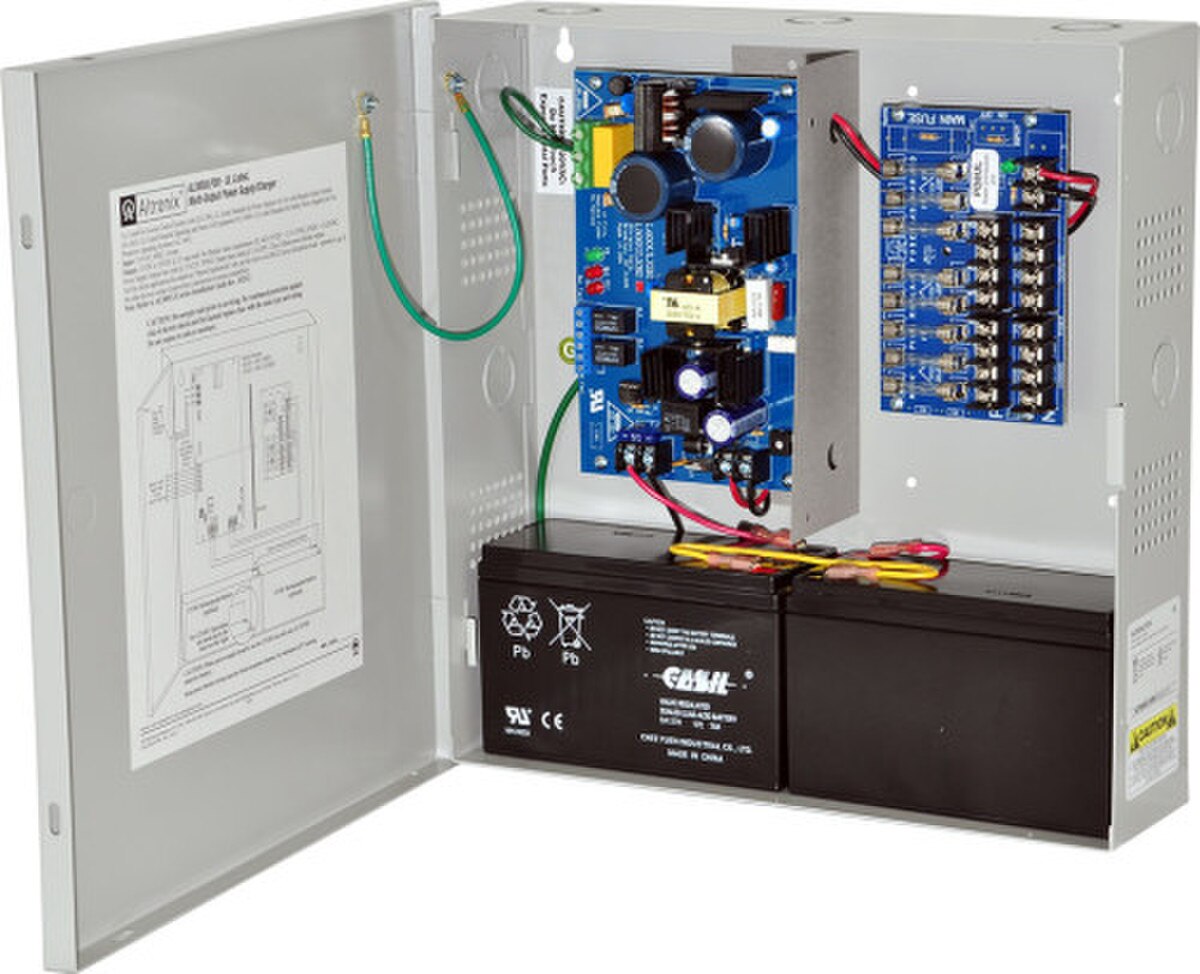

AL300ULPD8

SKU AL300ULPD8-474
12/24VDC 2.5A W/PD8

Features:

  • 115VAC 60Hz, 1.45 amp input.
  • 12VDC or 24VDC selectable output.
  • 2.5 amp supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited outputs.
  • Eight (8) fuse protected outputs.
  • Filtered and electronically regulated outputs.
  • Fuses are rated @ 3.5 amp
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
