AL300ULX

Technology partner: V474 Altronix Corporation
SKU AL300ULX-474

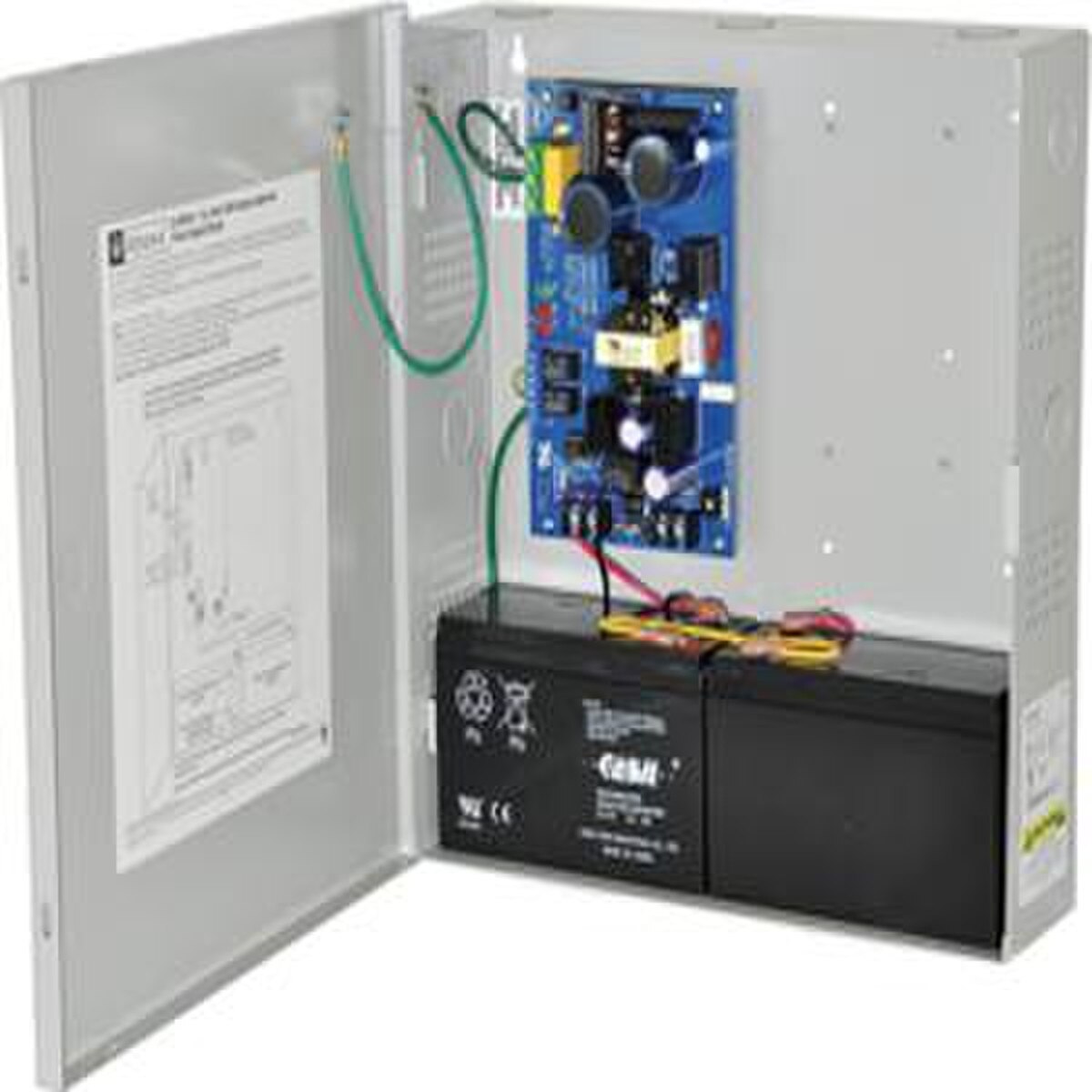

AL300ULX is a power supply/charger that converts a 115VAC/60Hz input into a single 12VDC or 24VDC Class 2 Rated power limited output. *Temporarily Unavailable, Please See Suggested Replacement AL400ULX*
Temporarily Unavailable / Contact PSA for Suggested Alternative Item

Features:

  • 115VAC 60Hz, 1.45 amp input
  • 12VDC or 24VDC selectable output
  • 2.5 amp of continuous supply current output
  • AC fail supervision
  • AC input and DC output LED indicators
  • Built-in charger for sealed lead acid or gel type battery backup
  • Class 2 Rated power limited output
  • Filtered and electronically regulated outputs
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp
  • Short circuit and thermal overload protection
  • Zero voltage drop upon transfer to battery backup
