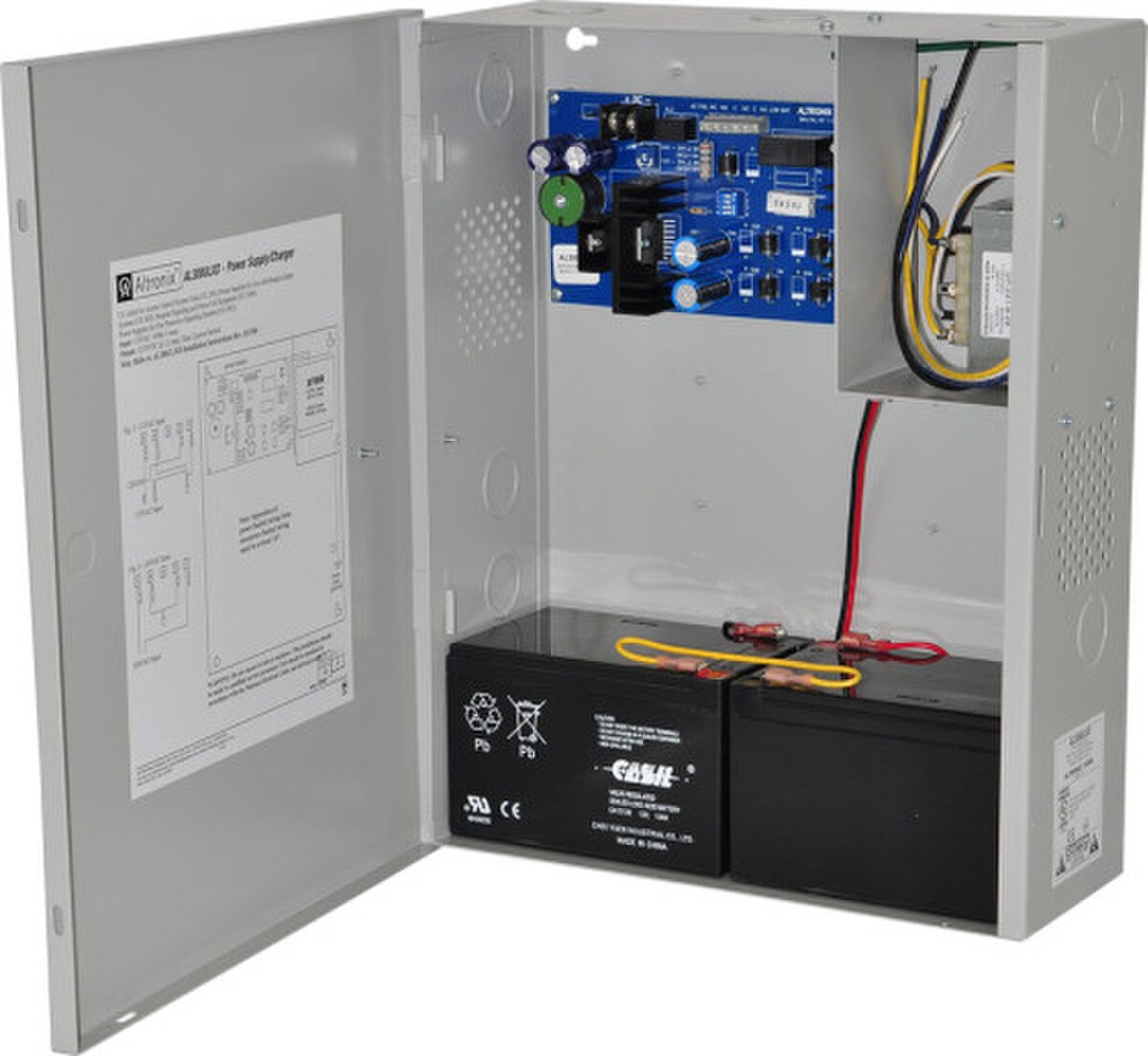

AL300ULXD

Technology partner: V474 Altronix Corporation
SKU AL300ULXD-474
Temporarily Unavailable-Contact PSA for Suggested Alternative Item /Power supply charger, single class 2 output, 12/24VDC @ 2.5A, 115

Features:

  • 115VAC 50/60Hz, .9 amp or 230VAC 60Hz .45 amp input.
  • 12VDC or 24VDC selectable output.
  • 2.5 amp of continuous supply current output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .6 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
