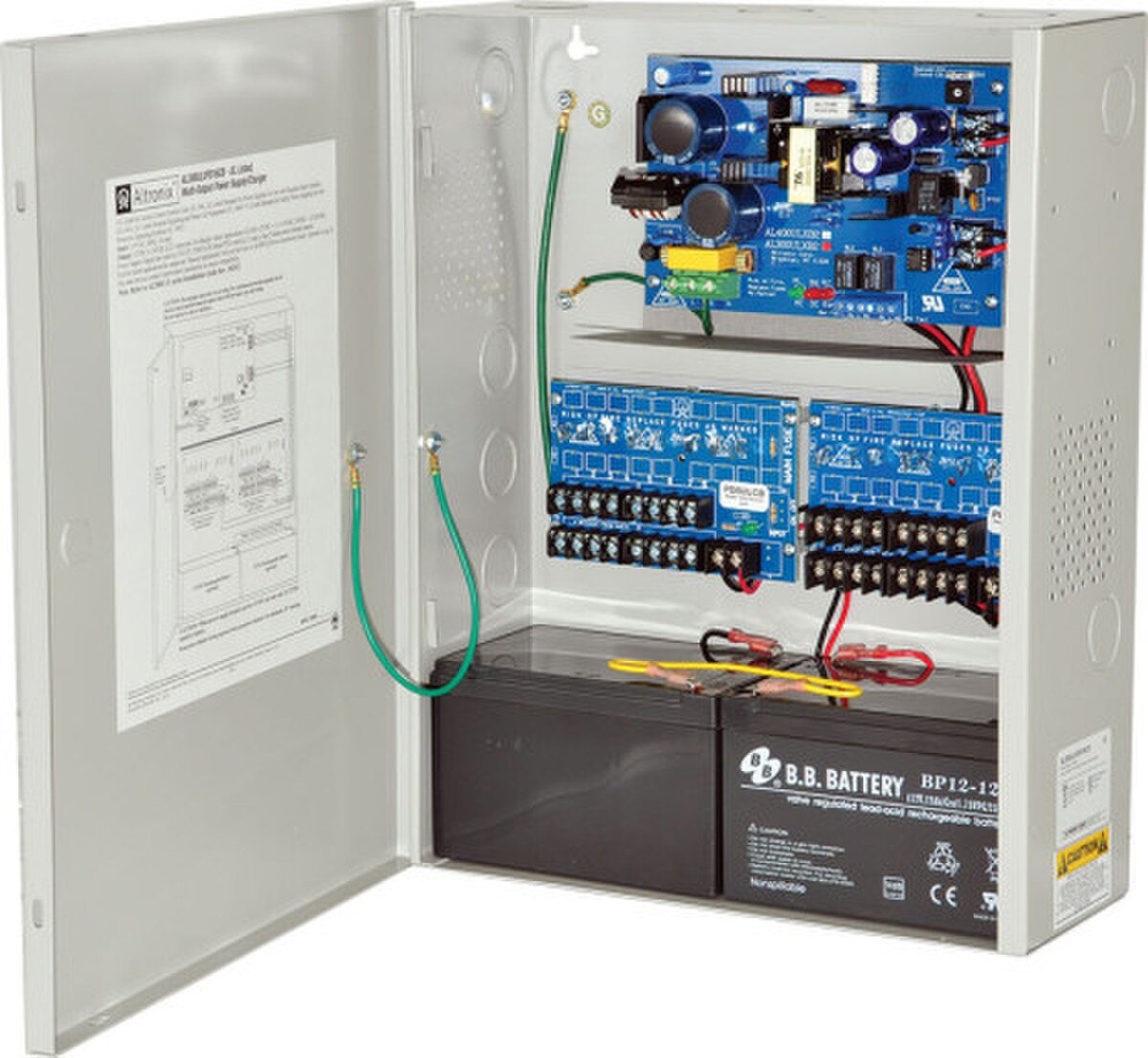

AL300ULXPD16CB
Features:
- 115VAC 60Hz, 1.45 amp input.
- 12VDC or 24VDC selectable output.
- 2.5 amp of continuous supply current output.
- AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
- AC input and DC output LED indicators.
- Built-in charger for sealed lead acid or gel type battery backup.
- Class 2 Rated power limited outputs.
- Filtered and electronically regulated outputs.
- Maximum charge current .7 amp.
- PTCs are rated @ 2.5 amp.
- Short circuit and thermal overload protection.
- Sixteen (16) PTC protected outputs.
- Zero voltage drop upon transfer to battery backup.
