AL400ULACMCB

Technology partner: V474 Altronix Corporation
SKU AL400ULACMCB-474

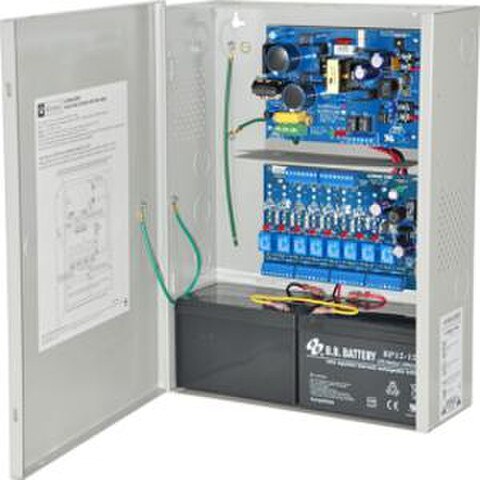

Altronix AL400ULACMCB converts a 115VAC 60Hz input into eight (8) independently controlled 12VDC or 24VDC Fail-Safe and/or Fail-Secure outputs with a total of 4A @ 12VDC or 3A @ 24VDC continuous supply current. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. This unit will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. The outputs will operate in both FailSafe and/or Fail-Secure modes. This unit is designed to be powered by one common power source (factory installed) which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.
Suggested Replacement for EFLOW4NA8D

Features:

  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC or 24VDC selectable output.
  • 4 amp at 12VDC or 3 amp @ 24VDC of continuous supply current output.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
