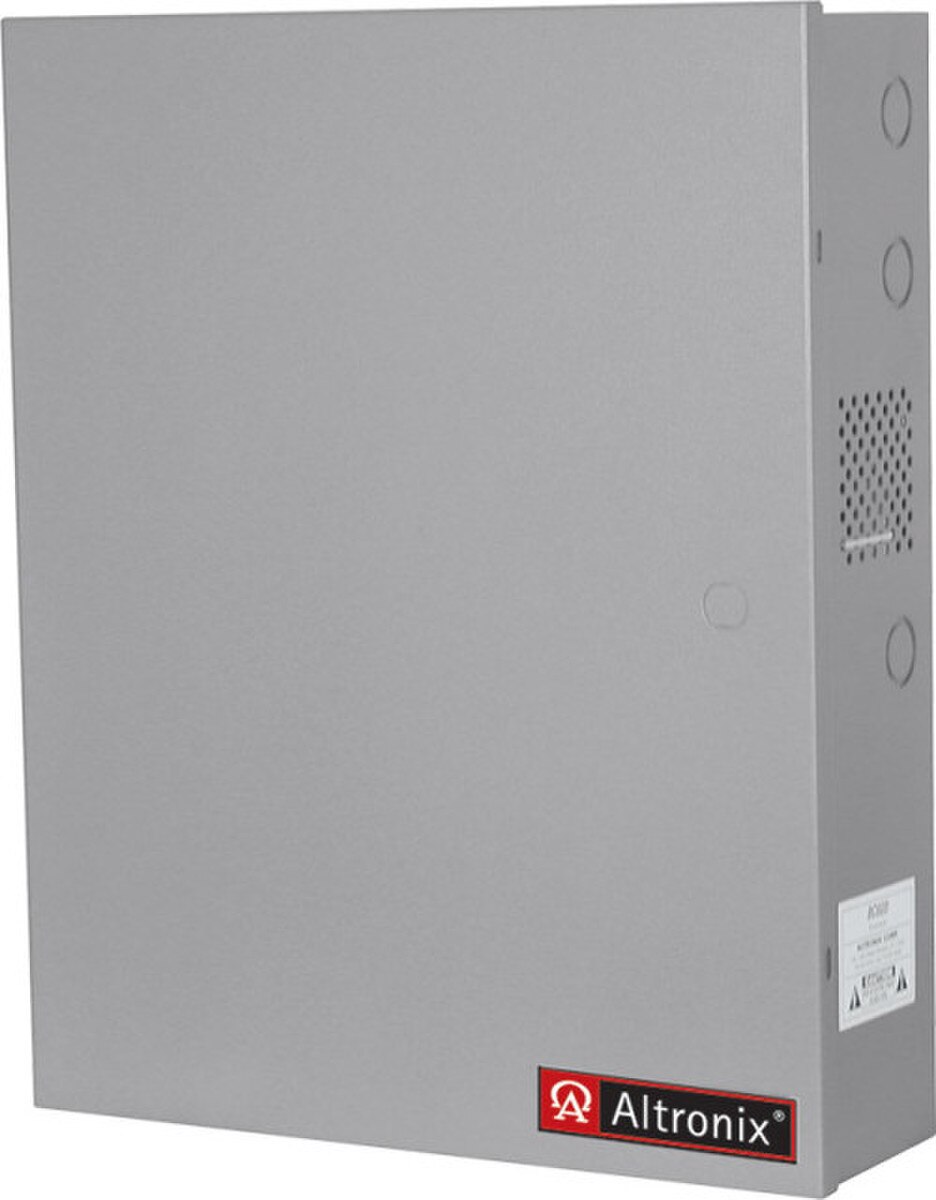

AL400ULACMCBJ

SKU AL400ULACMCBJ-474
12/24 VDC SPLY W/ACM8CB J ENCL

Features:

  • Eight (8) independently controlled Fail-Safe and/or
  • Fail-Secure power outputs.
  • Eight (8) auxiliary power outputs (unswitched).
  • Output PTCs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.
  • Supervision:
  • AC Fail
  • Battery Fail and Battery Presence.
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
  • Alarm output relay indicates that FACP input trigged
  • Fire Alarm disconnect input options:
  • a) Normally open (NO) or normally closed (NC) dry contact input
  • b) Polarity reversal input from FACP signaling circuit
  • Built-in charger for sealed lead acid or gel type batteries.
  • Instantaneous transfer to stand-by batteries.
  • UL Listed in the U.S. and Canada.
  • Lifetime Warranty / Made in the U.S.A.
