AL400ULPD4CB

Technology partner: V474 Altronix Corporation
SKU AL400ULPD4CB-474

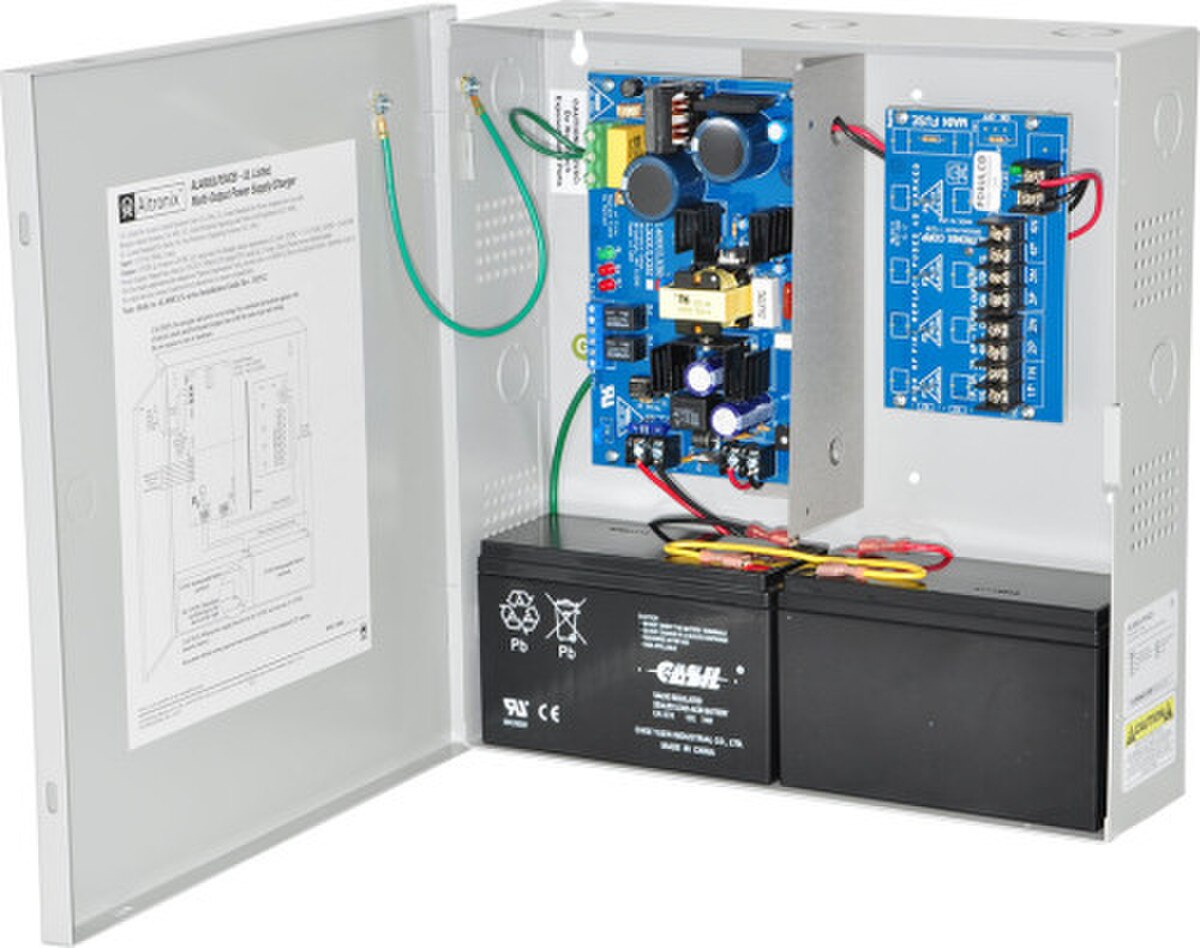

AL400ULPD4CB is a multi-output power supply/charger that converts a 115VAC/60Hz input into four (4) Class 2 Rated 12VDC or 24VDC power limited outputs.
Suggested Replacement for EFLOW3N4D

Features:

  • 115VAC 60Hz, 1.45 amp input.
  • 12VDC or 24VDC selectable output.
  • 4 amp @ 12VDC or 3 amp @ 24VDC of continuous supply current output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited outputs.
  • Filtered and electronically regulated outputs.
  • Four (4) PTC protected outputs.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • PTCs are rated @ 2.5 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
