AL400ULX

Technology partner: V474 Altronix Corporation
SKU AL400ULX-474

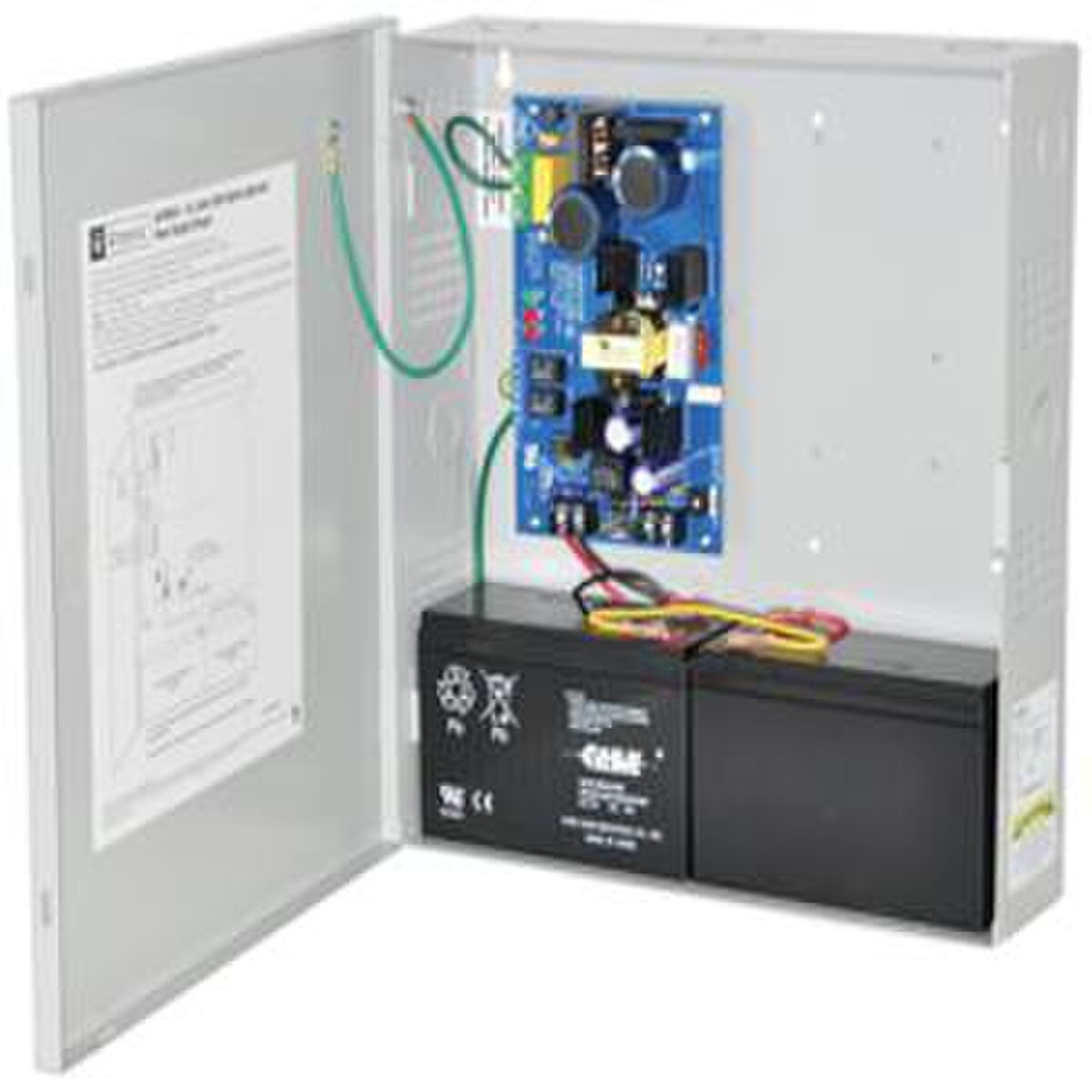

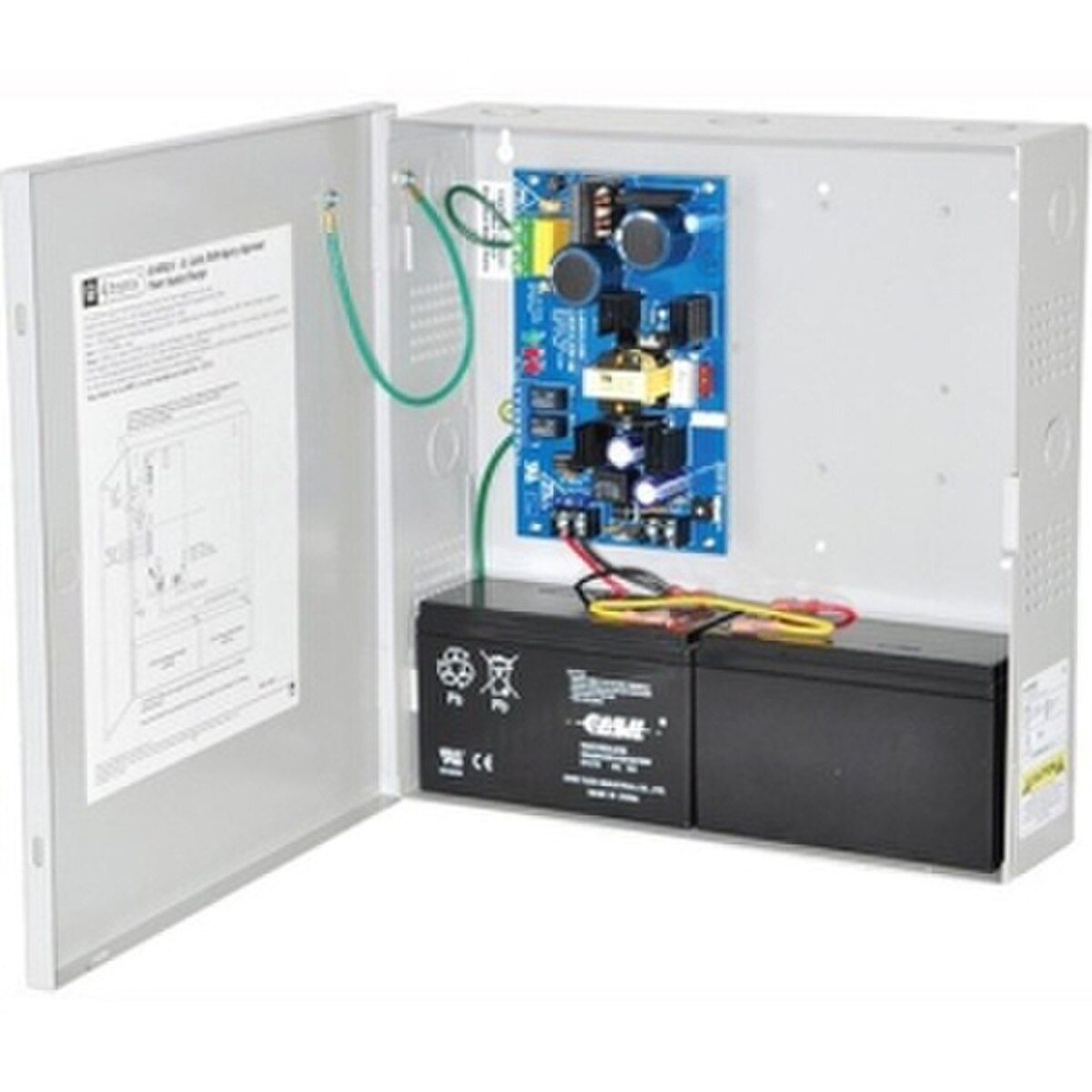

Power supply charger, single class 2 output, 12/24VDC @ 4A, 115VA / Suggested Replacement for EFLOW3N

Features:

  • 115VAC 60Hz, 1.45 amp input.
  • 115VAC 60Hz, 1.45 amp input.
  • 12VDC or 24VDC selectable output.
  • 12VDC or 24VDC selectable output.
  • 12VDC or 24VDC selectable output.
  • 4 amp @ 12VDC or 3 amp @ 24VDC of continuous supply current output
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup
  • Class 2 Rated power limited output
  • Filtered and electronically regulated outputs
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .7 amp.
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection
  • Zero voltage drop upon transfer to battery backup.
