AL600UL3X

Technology partner: V474 Altronix Corporation
SKU AL600UL3X-474

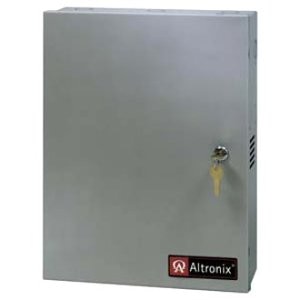

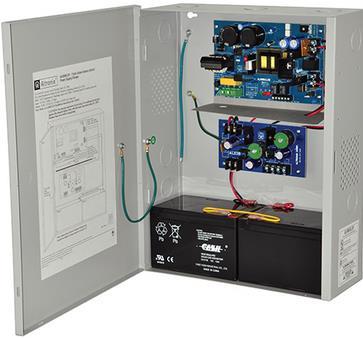

Altronix AL600UL3X triple output power supply/charger is designed for use with access control systems and accessories. It converts a 115VAC / 60Hz input into three (3) individually PTC protected 5VDC, 12VDC and 24VDC regulated outputs.

Features:

  • 1.75 amp @ 5VDC and 12VDC, and 3 amp @ 24VDC supply current.
  • 115VAC 60Hz, 1.9 amp input.
  • 5VDC, 12VDC or 24VDC simultaneous output.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited outputs (5 and 12VDC).
  • Filtered and electronically regulated outputs.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • Non-power limited output (24VDC).
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
