AL600ULACMCB

Technology partner: V474 Altronix Corporation
SKU AL600ULACMCB-474

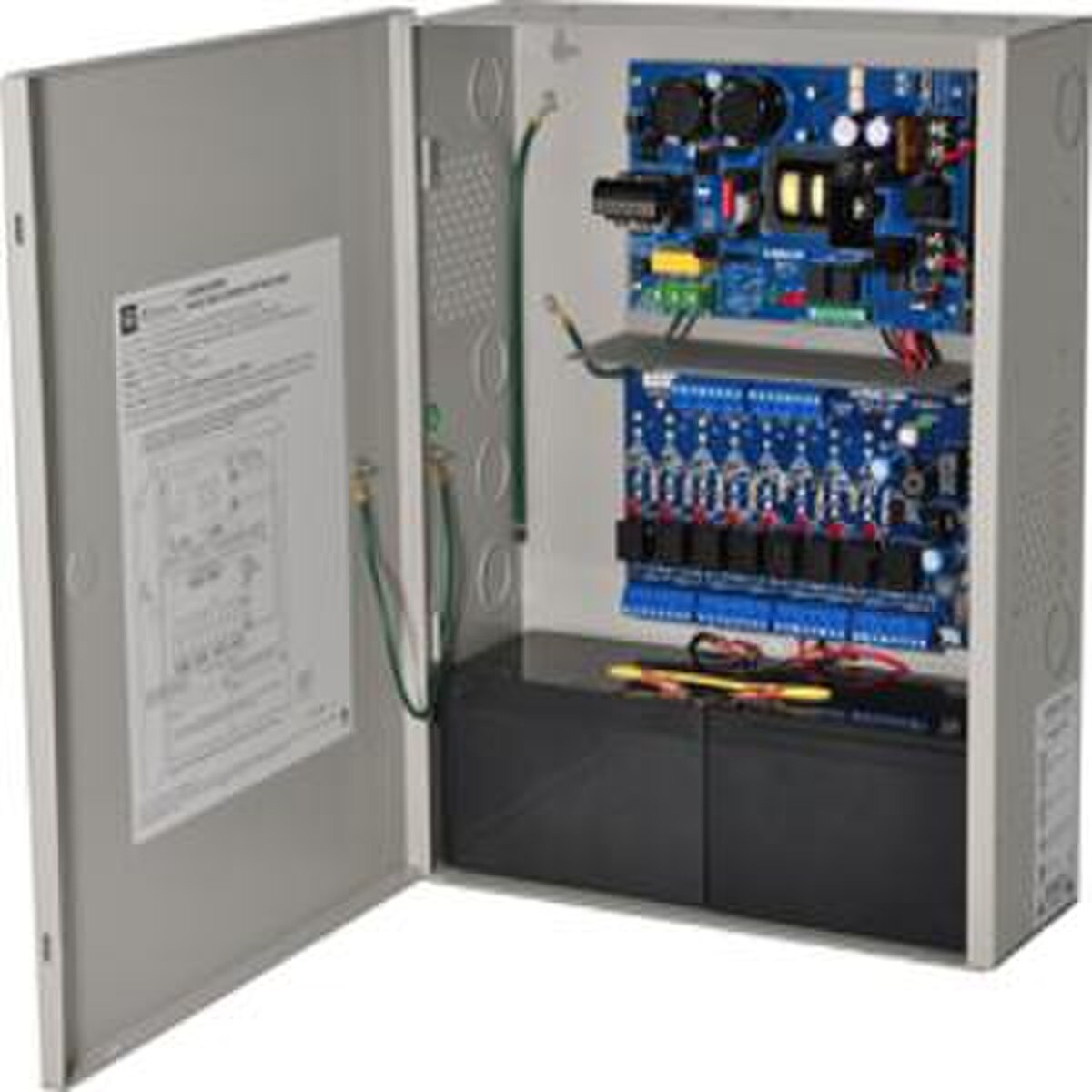

Access power controller with power supply/charger, 8 PTC class 2 / Suggested Replacement for EFLOW6NA8D

Features:

  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC or 24VDC selectable output.
  • 6 amp of continuous supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited output.
  • Filtered and electronically regulated outputs.
  • Lifetime Warranty.
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
