AL600ULB

Technology partner: V474 Altronix Corporation
SKU AL600ULB-474

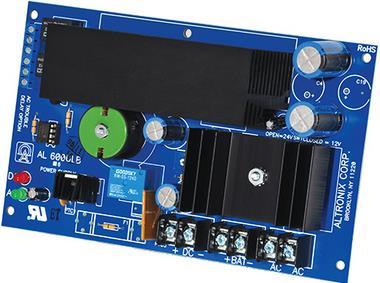

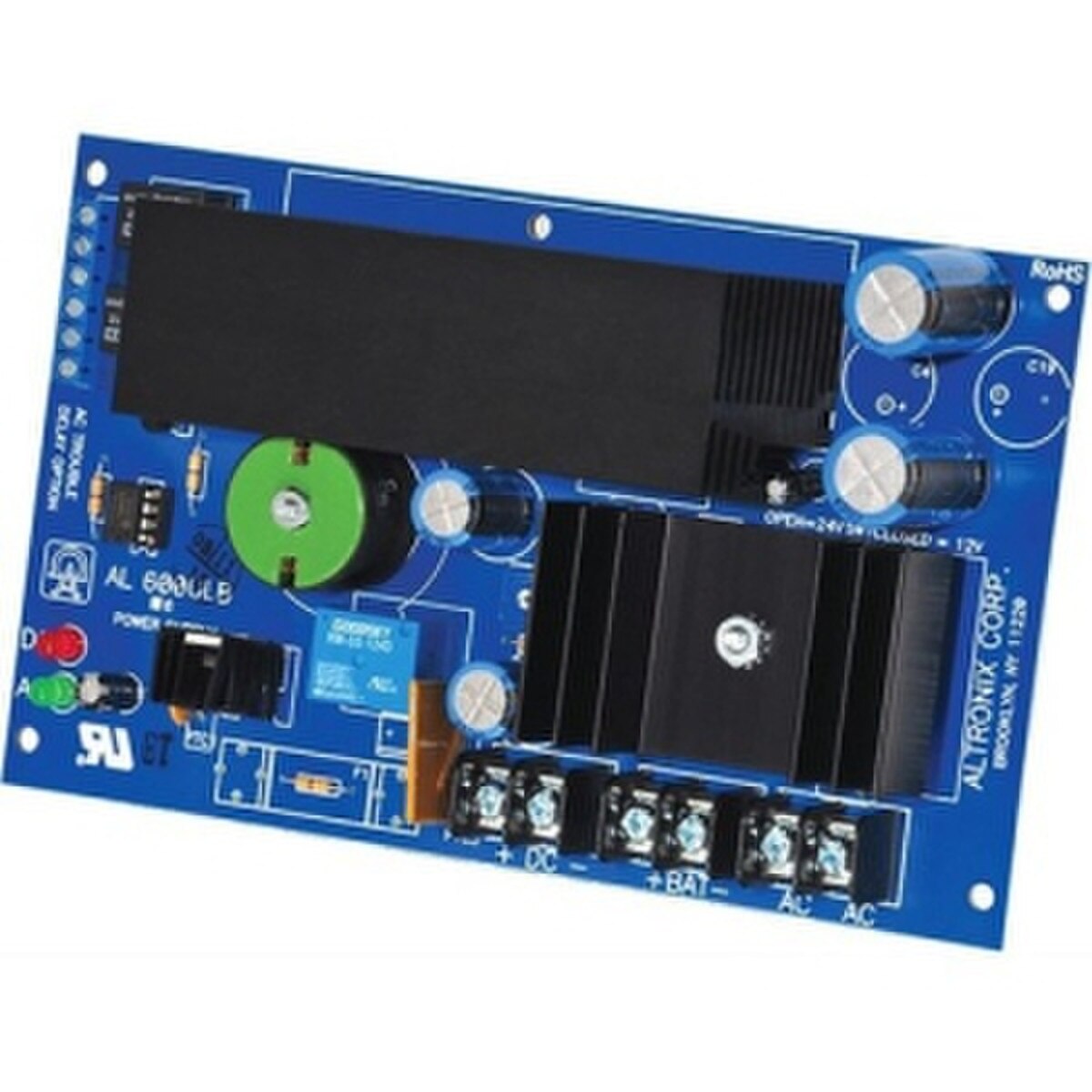

Altronix AL600ULB UL Recognized power supply/charger converts a 28VAC/200VA input into a single 12VDC or 24VDC non power-limited output. It also offers a suite of features that includes AC fail supervision, battery presence, and low battery supervision.

Features:

  • (form ''C'' contact rated @ 1 amp 28VDC).
  • 12VDC or 24VDC selectable output.
  • 28VAC/200VA input.
  • 6 amp of continuous supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
