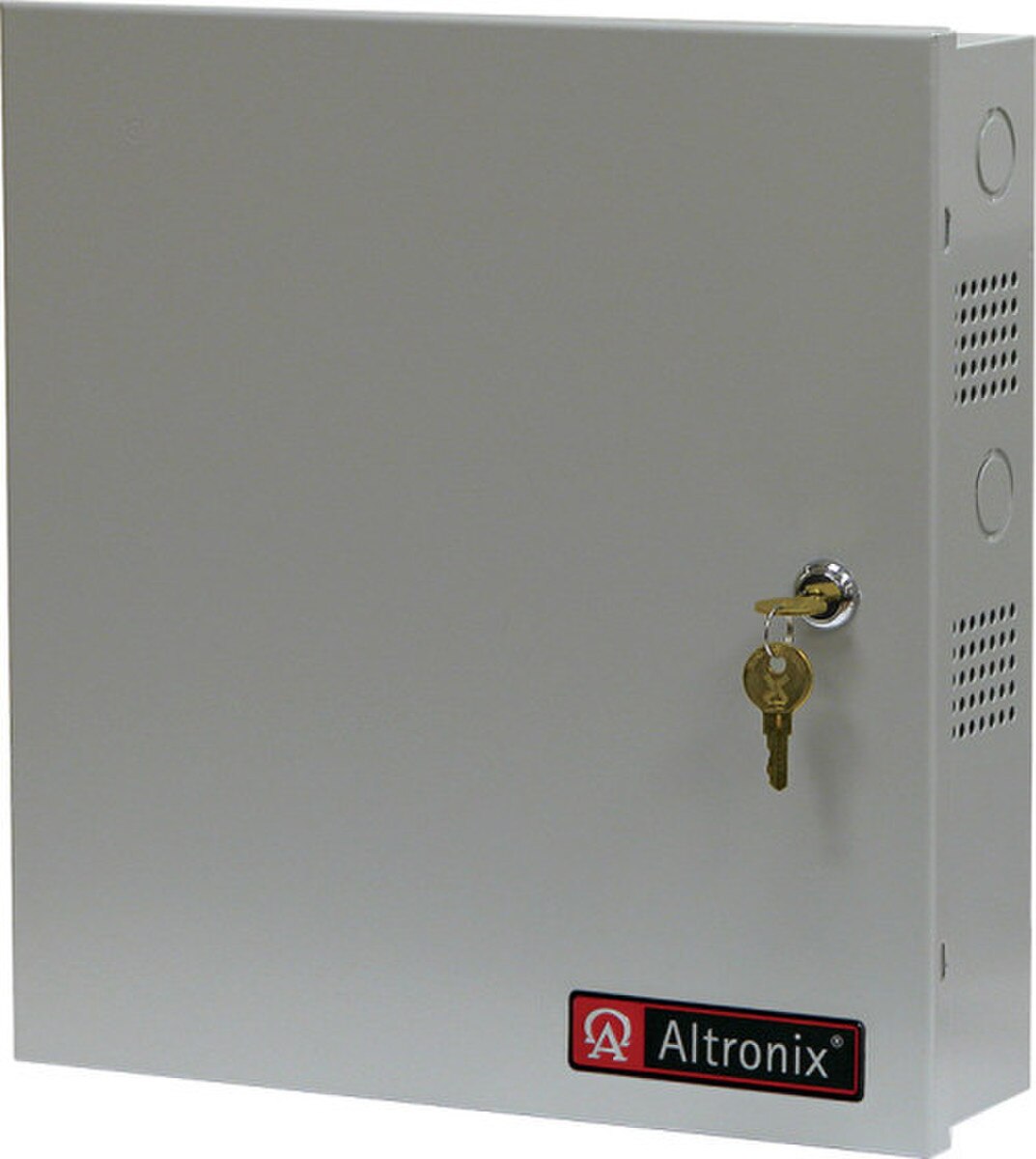

AL600ULPD4

Technology partner: V474 Altronix Corporation
SKU AL600ULPD4-474
AL600ULPD4 is a multi-output power supply/charger which converts a 115VAC, 60Hz input into four (4) 12VDC or 24VDC non power-limited outputs.

Features:

  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC or 24VDC selectable output.
  • 6 amp of continuous supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Four (4) fuse protected outputs.
  • Fuses are rated @ 3.5 amp.
  • Low battery and battery presence supervision (
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
