AL600ULPD4CB

Technology partner: V474 Altronix Corporation
SKU AL600ULPD4CB-474

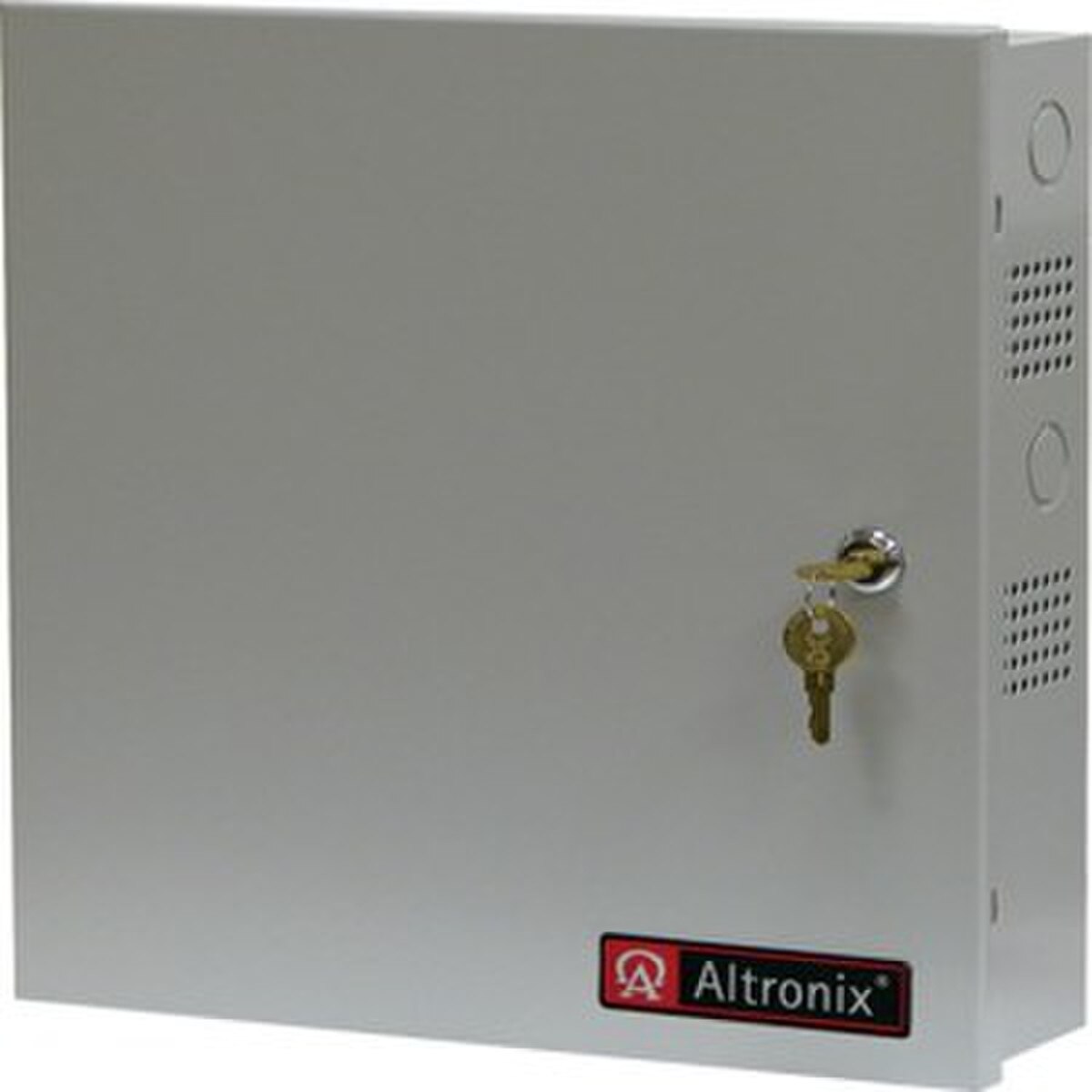

AL600ULPD4CB is a multi-output power supply/charger which converts a 115VAC, 60Hz input into four (4) 12VDC or 24VDC Class 2 Rated power limited outputs.

Features:

  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC or 24VDC selectable output.
  • 6 amp of continuous supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Class 2 Rated power limited outputs.
  • Filtered and electronically regulated outputs.
  • Four (4) PTC protected outputs.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • PTCs are rated @ 2.5 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
