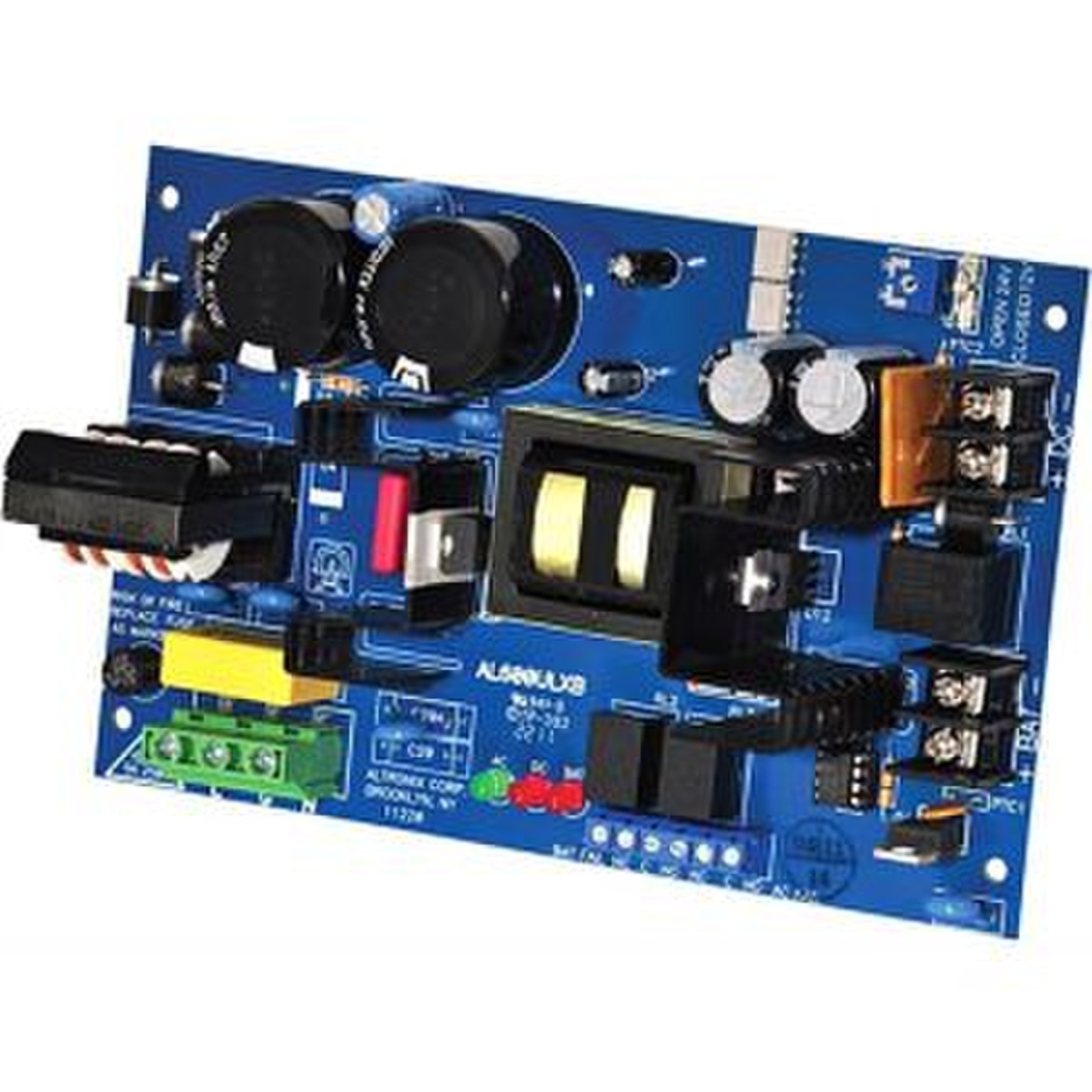

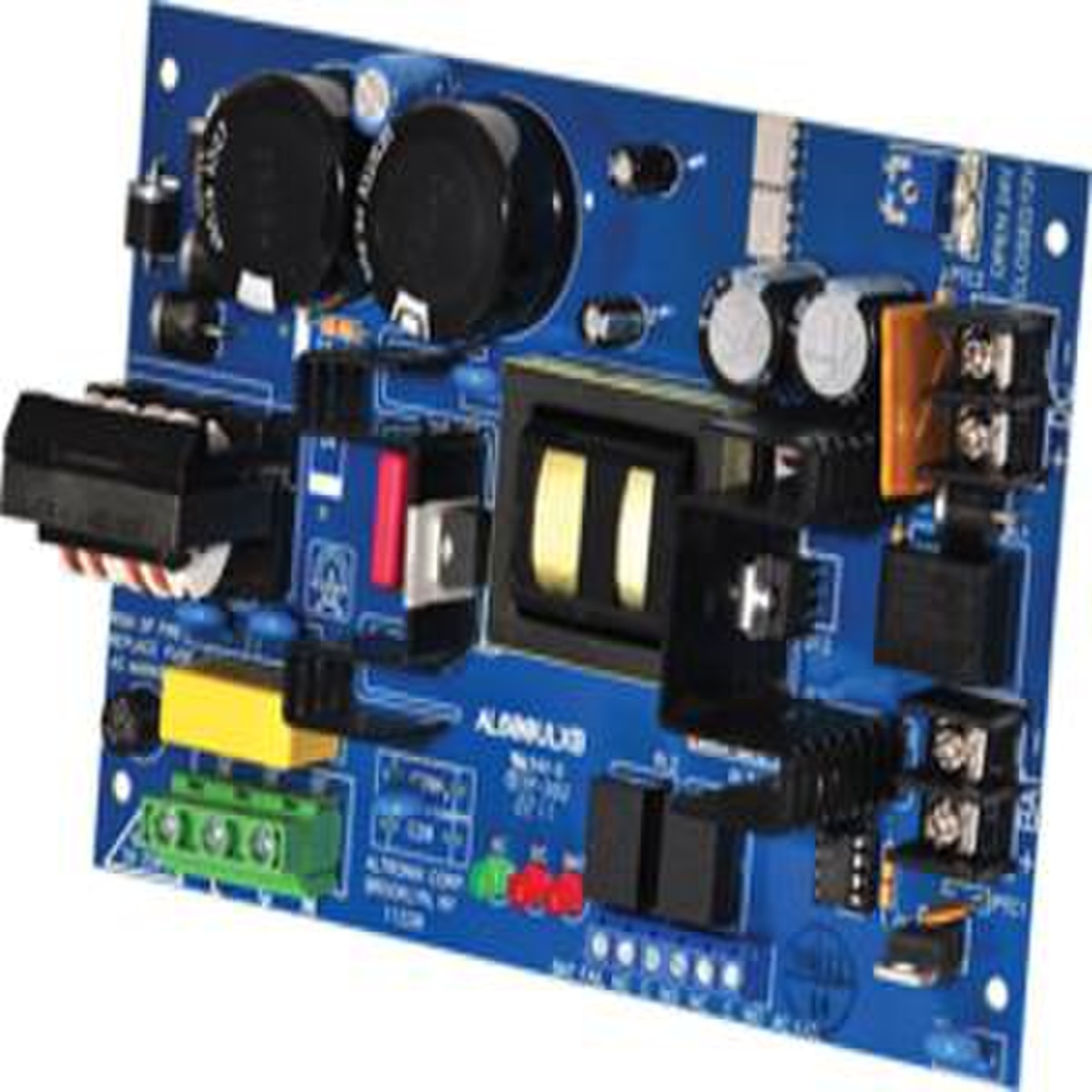

AL600ULXB

Technology partner: V474 Altronix Corporation
SKU AL600ULXB-474
Power supply charger, Single class 2 Output, 12/24VDC @ 6A, 115VA / Suggested Replacement for EFLOW6NB

Features:

  • (form ''C'' contact rated @ 1 amp 28VDC).
  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC or 24VDC selectable output.
  • 6 amp of continuous supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
