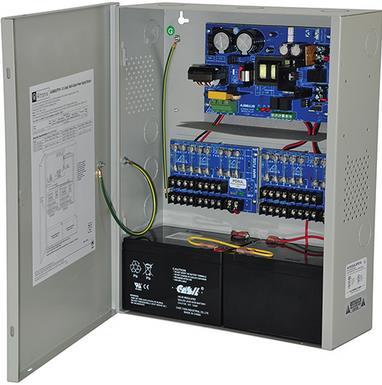

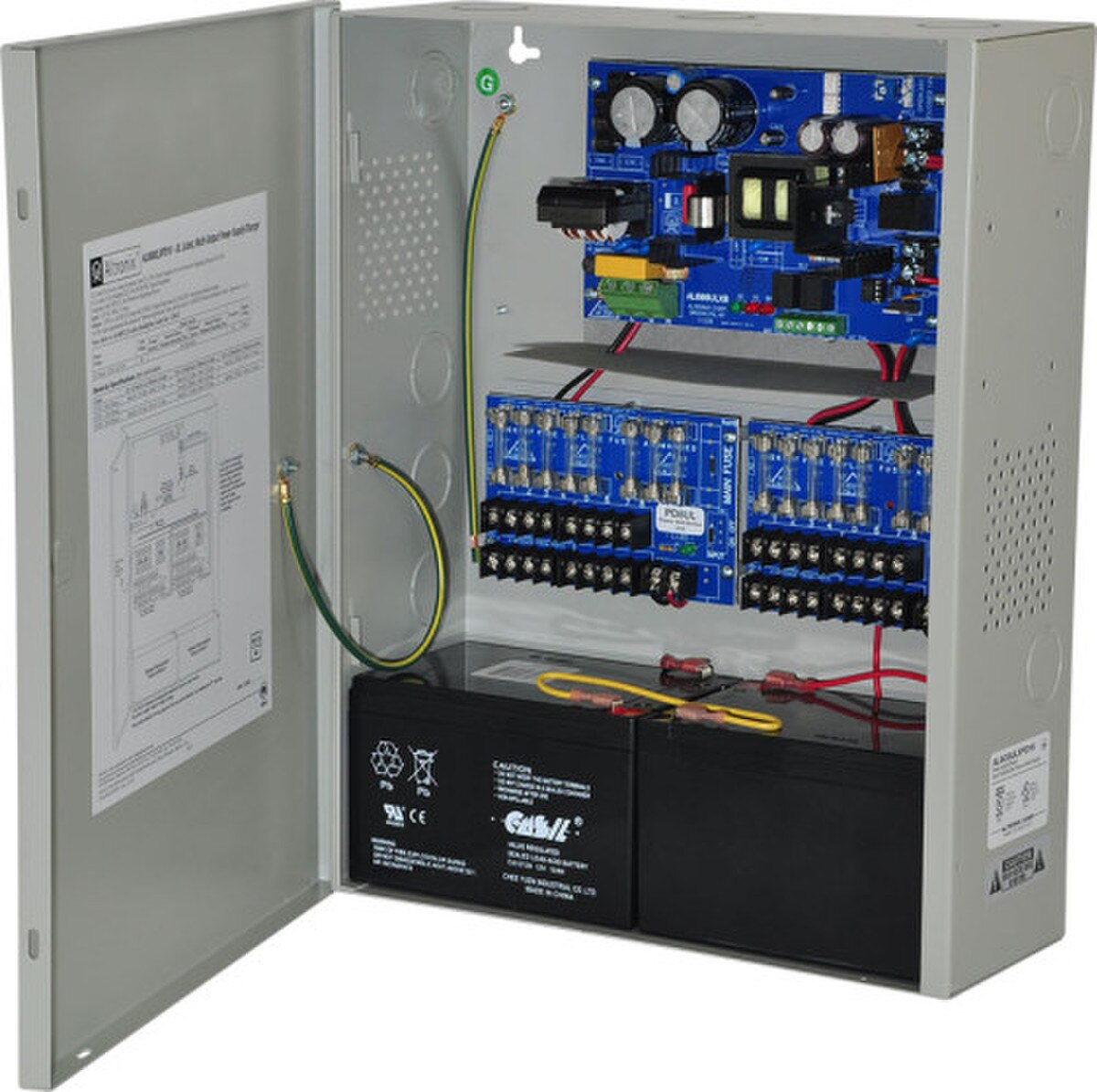

SKU AL600ULXPD16-474
UL 12/24VDC 6A P/S W/2 PD8 INS


  • 115VAC 60Hz, 1.9 amp input.
  • 12VDC or 24VDC selectable output.
  • 6 amp of continuous supply current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Fuses are rated @ 3.5 amp.
  • Low battery and battery presence supervision
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Sixteen (16) fuse protected outputs.
  • Zero voltage drop upon transfer to battery backup.
