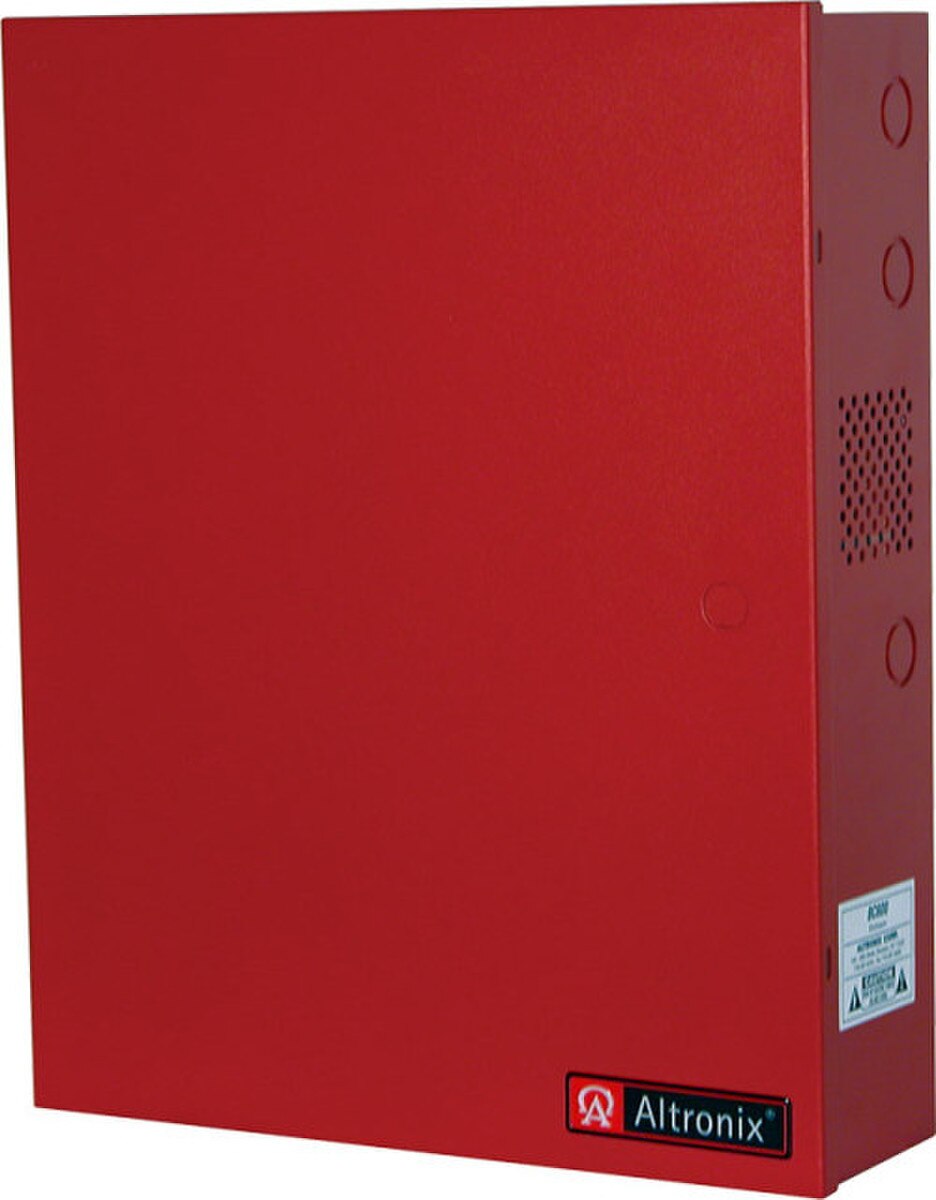

Technology partner: V474 Altronix Corporation
Temporarily Unavailable-Contact PSA for Suggested Alternative Item /NAC Power supply, 2 class A or 4 class B output, 24VDC @ 6.5A, 11


  • 115VAC 60Hz., 1.45 amp.
  • 24VDC output.
  • 6.5 amp max total alarm current.
  • AC fail supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Low battery and battery presence supervision (form ''C'' contact rated @ 1 amp 28VDC).
  • Maximum charge current .7 amp.
  • Short circuit and thermal overload protection.
  • Zero voltage drop upon transfer to battery backup.
