AL624E

Technology partner: V474 Altronix Corporation
SKU AL624E-474

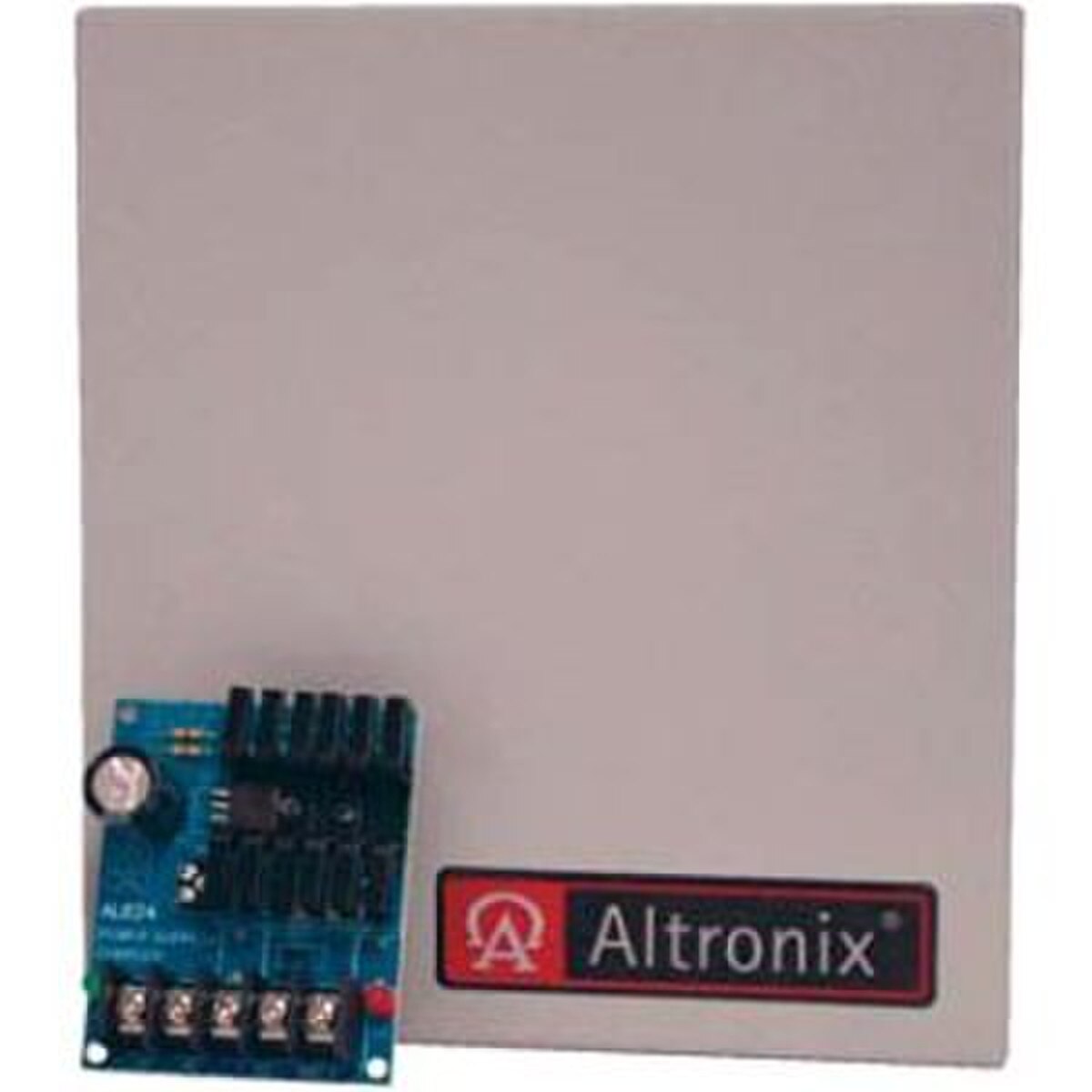

Altronix AL624E power supply/charger converts a low voltage AC input into 6VDC, 12VDC or 24VDC output. This general purpose power supply has a wide range of applications for access control, security and CCTV system accessories that require additional power.

Features:

  • 1.2 amp of continuous supply current.
  • 12.5VAC/20VA for 6VDC output (Altronix Model # TP1220).
  • 16.5VAC/20VA for 12VDC output (Altronix Model # TP1620).
  • 6VDC or 12VDC selectable output.
  • AC input and DC output LED indicators.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .3 amp.
  • Short circuit and thermal overload protection.
  • Transformer requirements:
