Technology partner: V474 Altronix Corporation

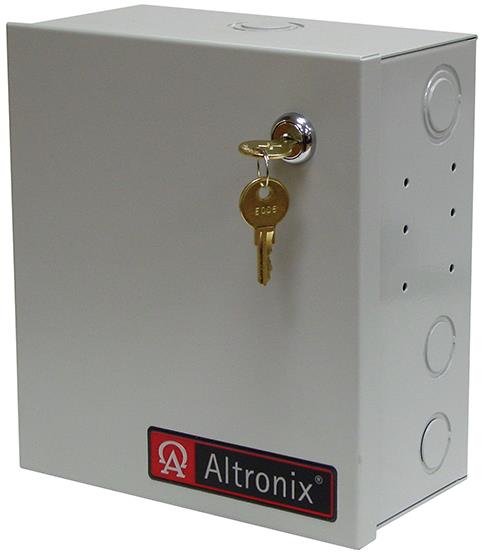

ALTV284ULCBMI Isolated CCTV Power Supply provides 24VAC distributed via eight (8) isolated Class 2 Rated PTC protected power limited outputs for powering CCTV Cameras, heaters and other video accessories.


  • 115VAC, 50/60Hz, 3A.
  • Eight (8) Class 2 Rated PTC protected outputs.
  • 24VAC @ 12.5A (300VA) supply current.
  • Surge suppression.
  • Illuminated master power disconnect circuit breaker with manual reset.
  • Unit maintains camera synchronization.
  • Spare fuses provided.
  • Factory installed 3-wire line cord.
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 154 BTU/Hr.
  • System AC input VA requirement: 345VA.
