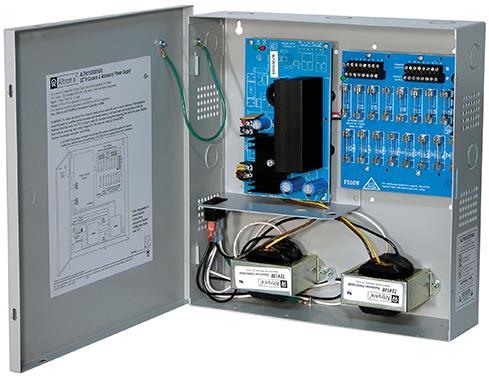

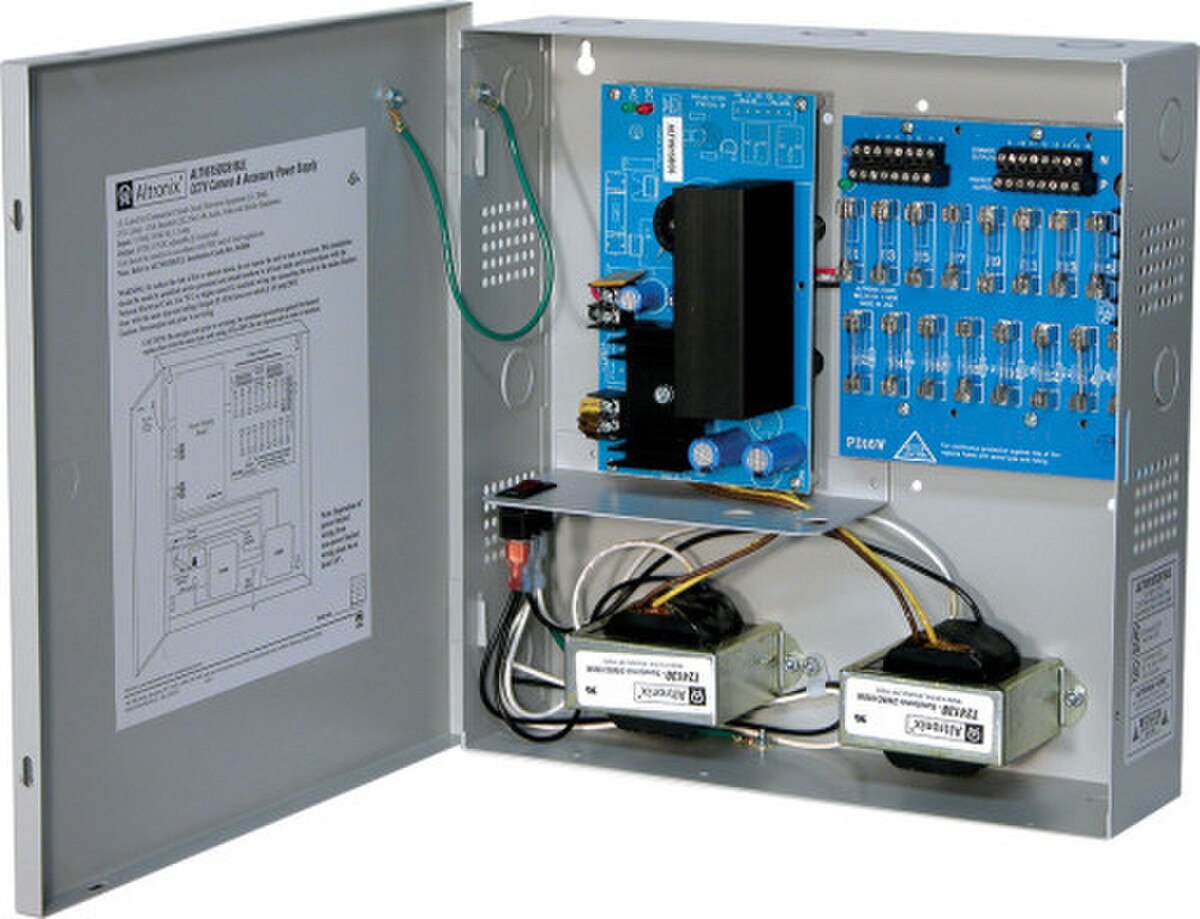

ALTV615DC616UL

Technology partner: V474 Altronix Corporation
SKU ALTV615DC616UL-474
ALTV615DC616UL provide 6VDC to 15VDC distributed via sixteen (16) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

Features:

  • Input 115VAC, 50/60 Hz, 0.9A.
  • Sixteen (16) fuse protected outputs.
  • 6VDC to 15VDC field adjustable.
  • 6A total continuous supply current (0.375A per device, 3.5A max.).
  • Output fuses are rated @ 3.5A/250VAC.
  • Filtered and electronically regulated outputs.
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr (approx.): 18-46 BTU/Hr.
  • System AC input VA requirement: 103.5VA.
  • AC input and DC output LED indicators.
  • Illuminated power disconnect circuit breaker with manual reset.
  • Spare fuse(s) provided.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
