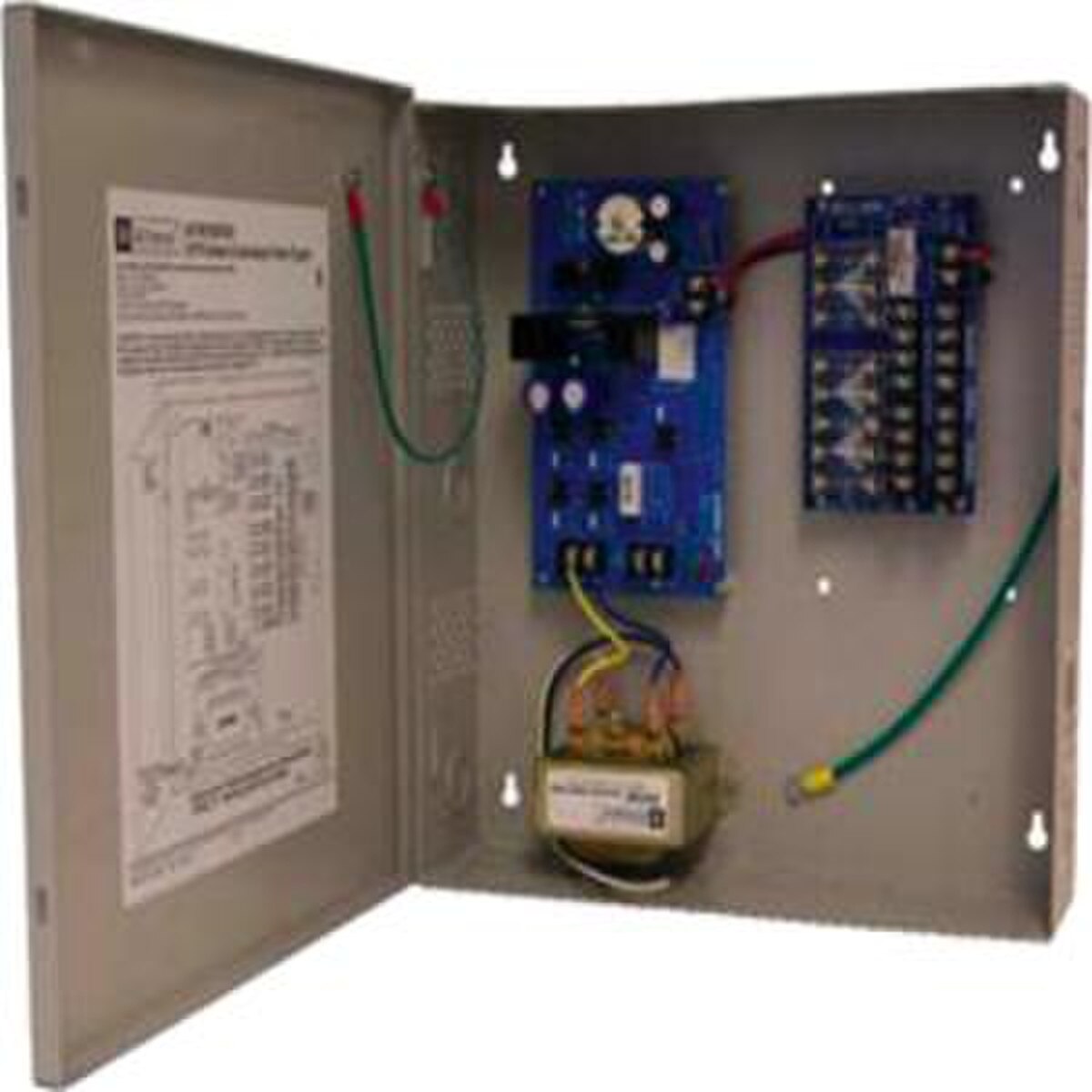

ALTV615DC8UL

SKU ALTV615DC8UL-474
6-15VDC @ 4A, 8 FUSE OUT UL

Features:

  • Input 115VAC, 50/60 Hz, 0.9A.
  • Eight (8) Class 2 Rated fuse protected power limited outputs.
  • 6VDC to 15VDC field adjustable.
  • 4A total continuous supply current (0.50A per device, 3.5A max.).
  • Output fuses are rated @ 3.5A/250VAC.
  • Filtered and electronically regulated outputs.
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr.: 12-31 BTU/Hr., depending on output.
  • System AC input VA requirement: 103.5VA.
  • AC input and DC output LED indicators.
  • Power ON/OFF switch.
  • Spare fuse(s) provided.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
