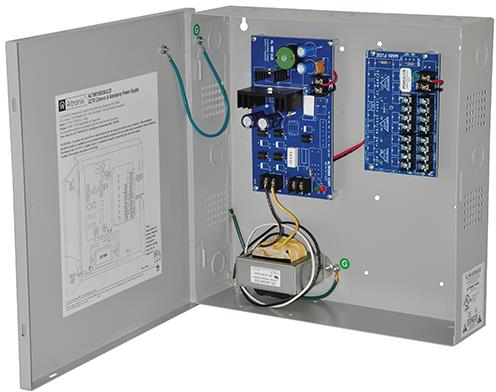

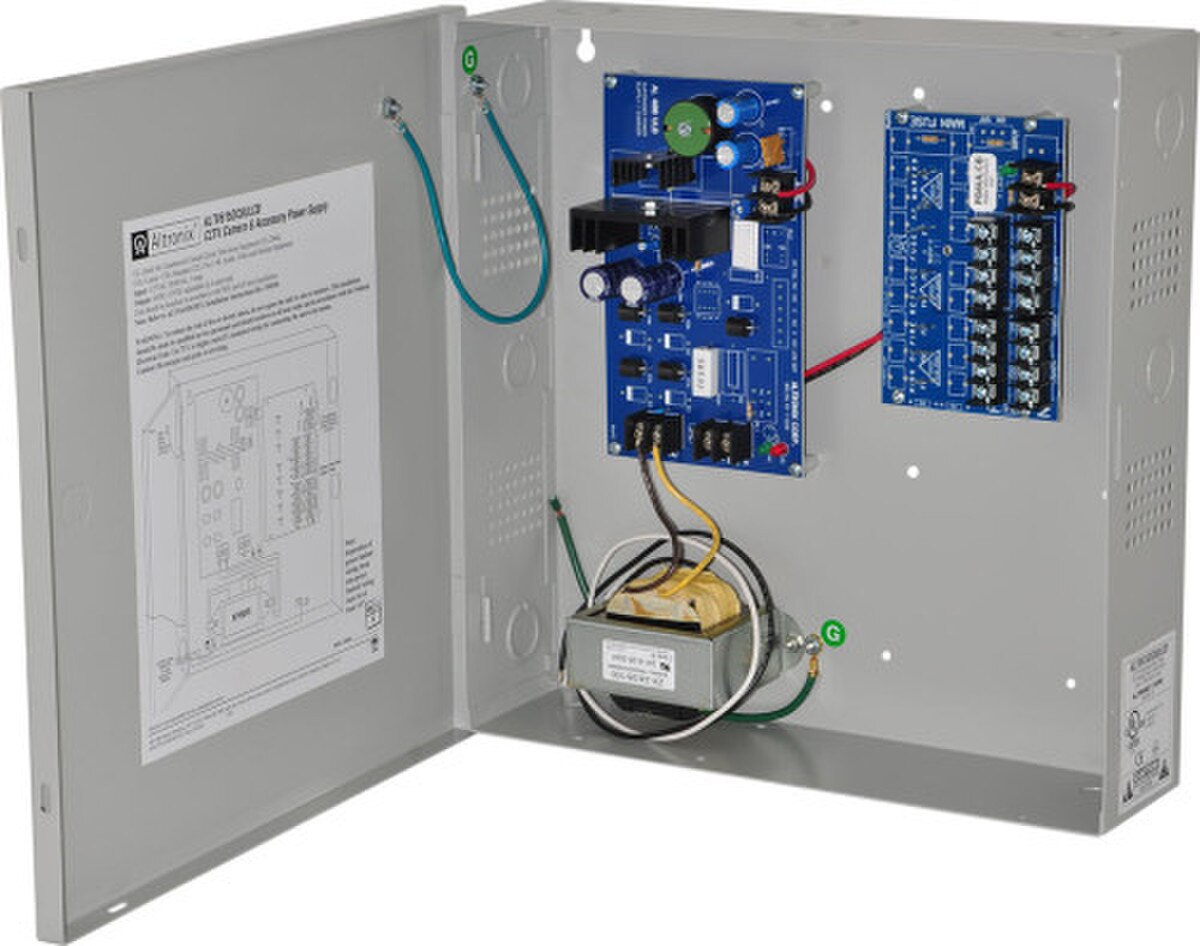

ALTV615DC8ULCB

SKU ALTV615DC8ULCB-474
6-15VDC @ 4A 8 PTC OUT UL

Features:

  • Input 115VAC, 50/60 Hz, 0.9A.
  • Eight (8) Class 2 Rated PTC protected power limited outputs (auto-resettable).
  • 6VDC to 15VDC field adjustable.
  • 4A total continuous supply current (0.50A per device, 2.5A max.).
  • Outputs are rated @ 2.5A.
  • Filtered and electronically regulated outputs.
  • Relative Humidity 85% +/- 5%.
  • BTU/Hr.: 12-31 BTU/Hr., depending on output.
  • System AC input VA requirement: 103.5VA.
  • AC input and DC output LED indicators.
  • Power ON/OFF switch.
  • Unit maintains camera synchronization.
  • Ease of installation saves time and eliminates costly labor.
