ASWG1

Technology partner: V261 Bogen Communications LLC
SKU ASWG1-261

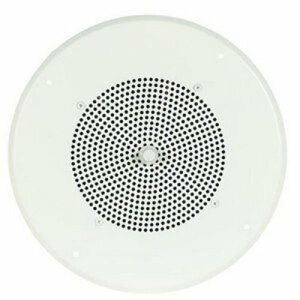

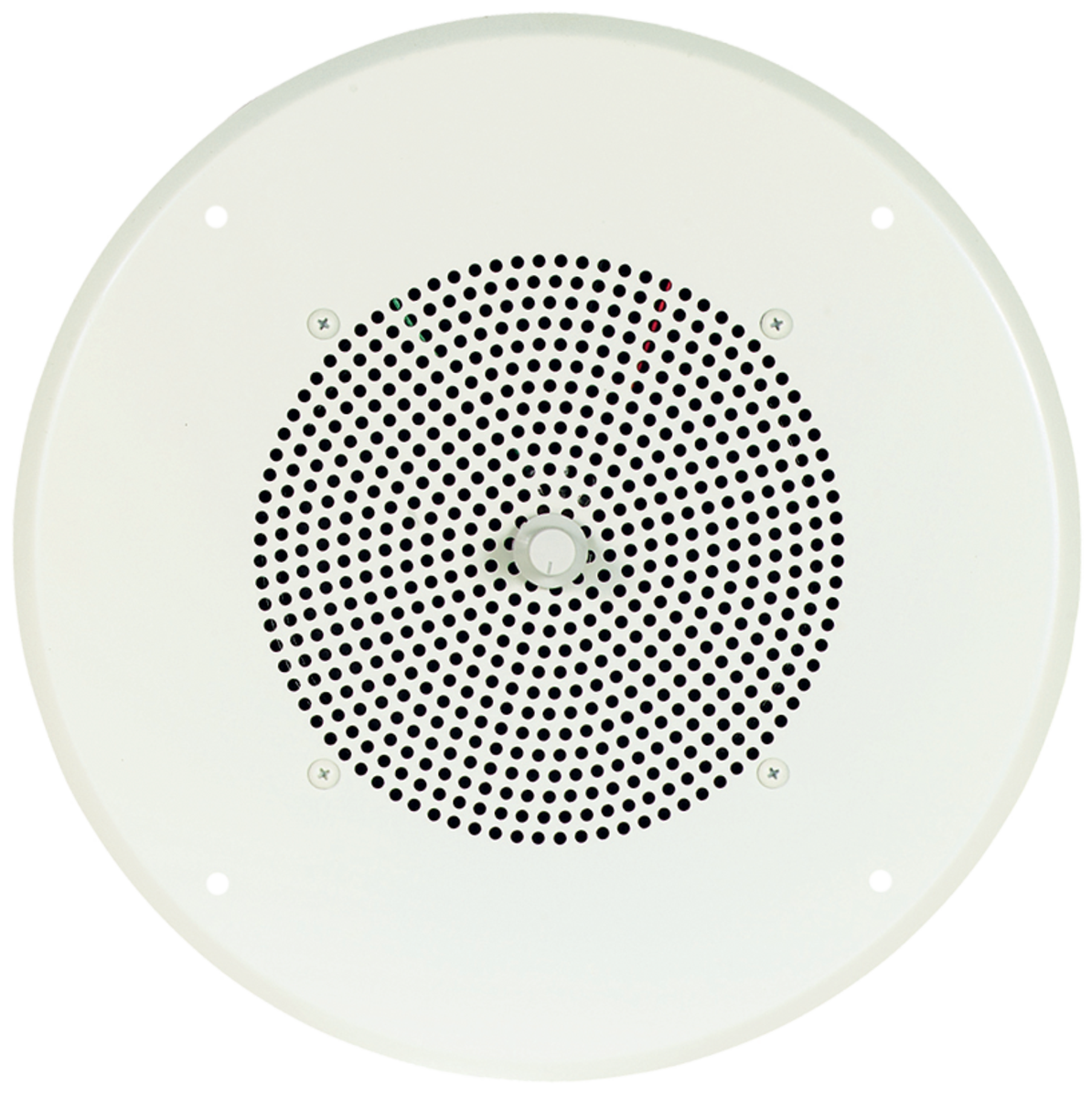

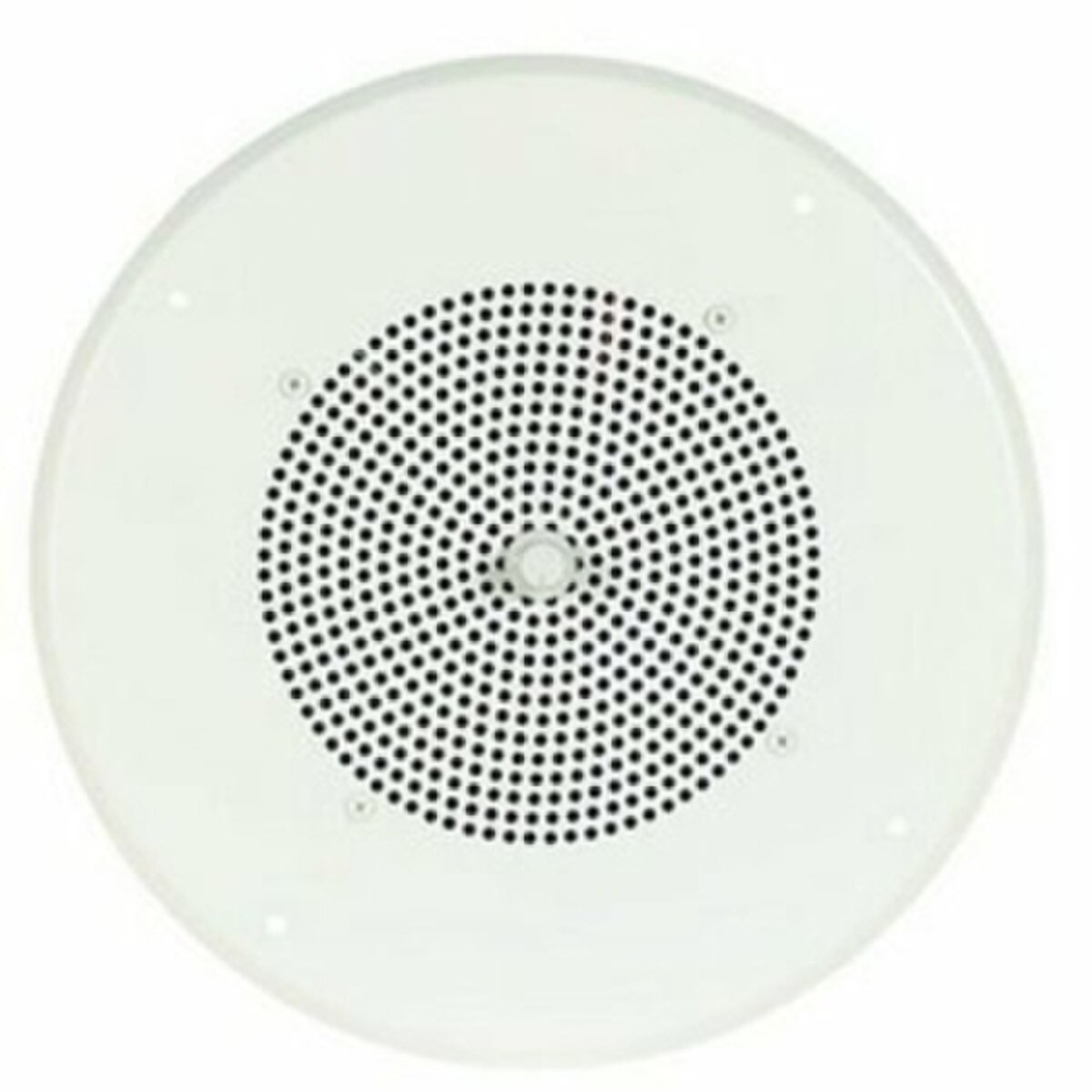

The AS-1 is an eight-inch, cone-type loudspeaker,complete with a built-in amplifier and volume control, designed for telephone paging applications. It is engineered to provide excellent sound quality and trouble-free operation. A compact, all solid-state IC amplifier eliminates the need for a centralized paging amplifier and permits the adjustment of the paging volume level at each speaker location in the system. The amplifier operates on 24V DC power, has an input impedance of 1000 ohms,and a rated output of one watt into a 45-ohm speaker. Up to nine AS-1 units can be driven by a single Bogen Model PRS-ASAC Power Supply (refer to publication number 54-7610 for power supply specifications). AS-1 amplified speakers can be used in conjunction with Bogens TAM-B Telephone Access Module, or connected directly to a 600-ohm paging interface for an easy-to-install, inexpensive paging and background music system that integrates with telephone systems. Model AS-1 is available unmounted,or fully assembled in an attractive wall baffle finished in simulated walnut (Model ASWB-1),on a white semi-gloss enameled ceiling grille (Model ASWG-1).
*2-4 Days Lead Time for Stock Items / 14-Day Lead Time for Clocks and Penton*

Features:

  • 8'' cone-type loudspeaker
  • Self-contained 1W amplifier
  • Interfaces with standard 600-Ohm telephone line
  • Adjustable volume via fixed front-mounted knob
  • Assembled on a steel ceiling grille for recessed installation
  • Finished in semi-gloss enamel
